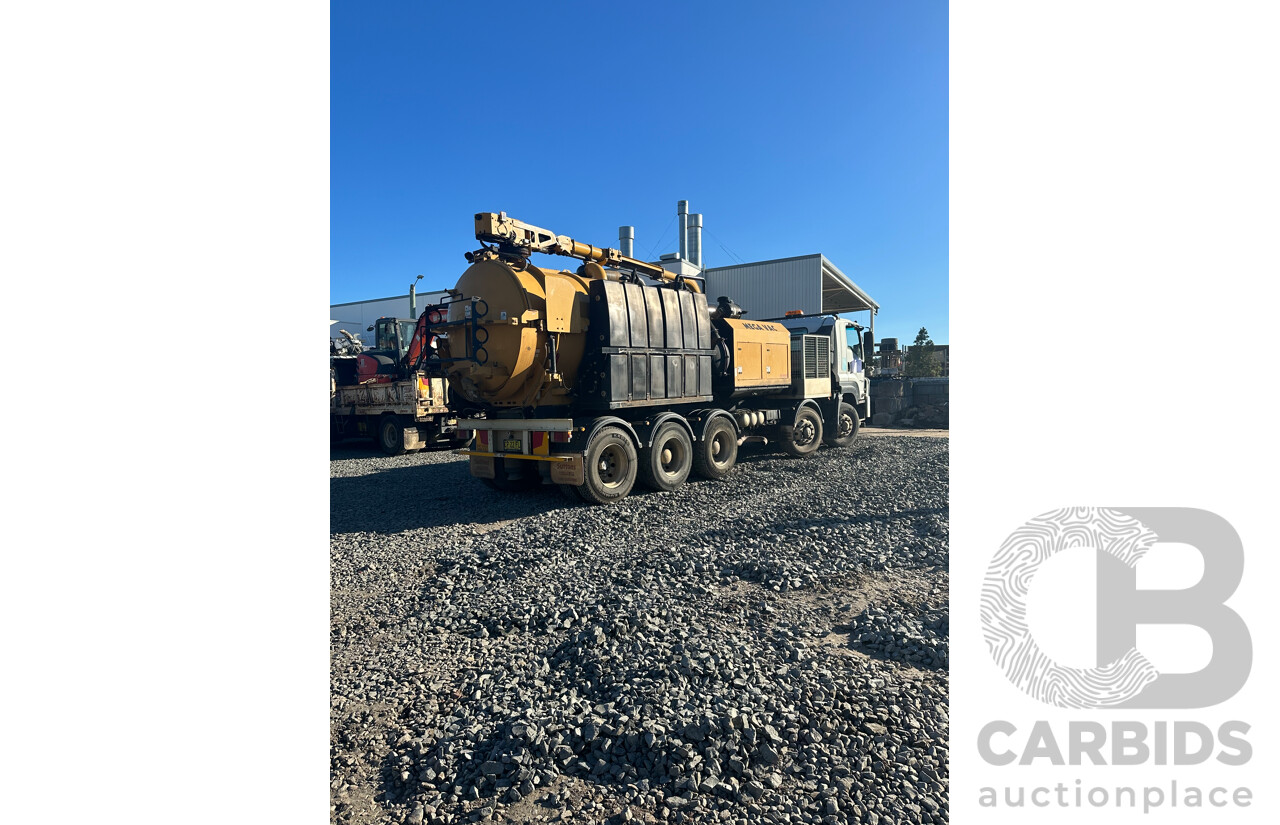

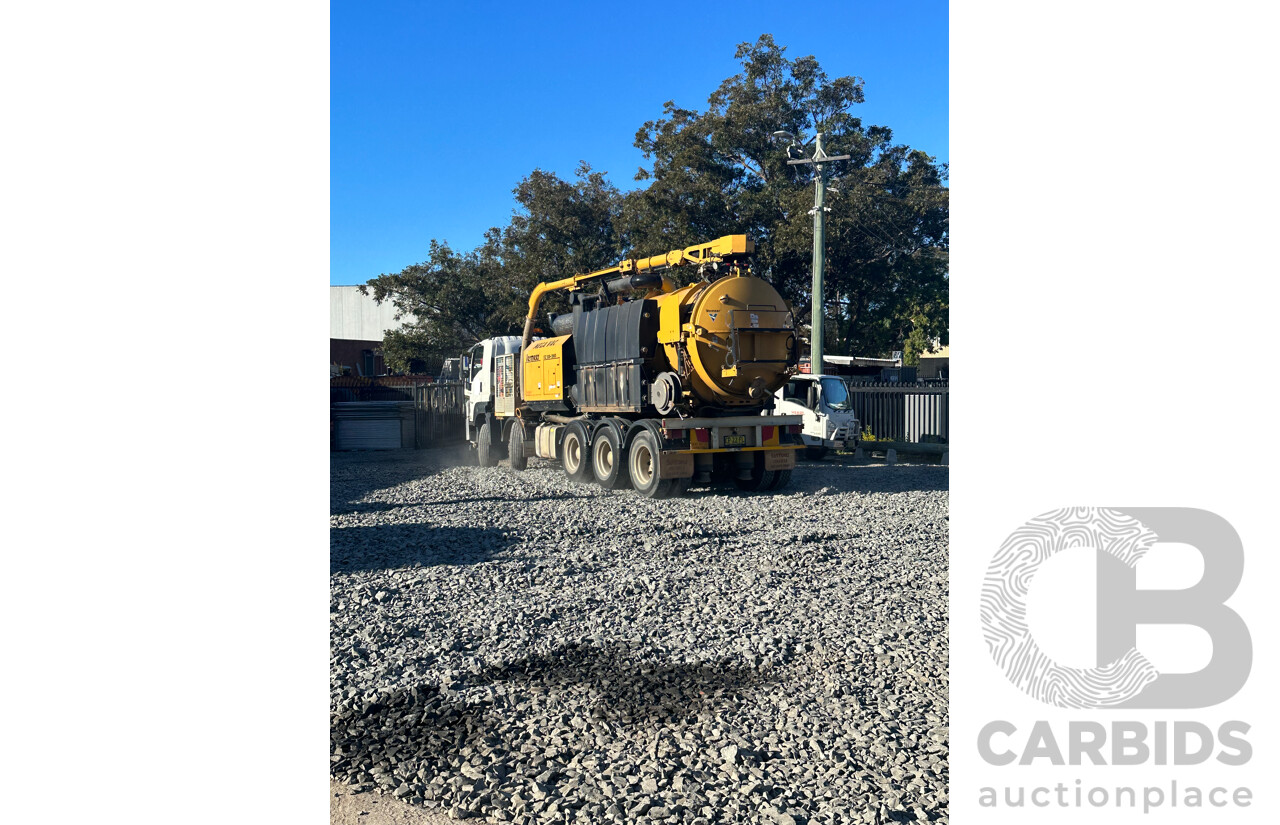

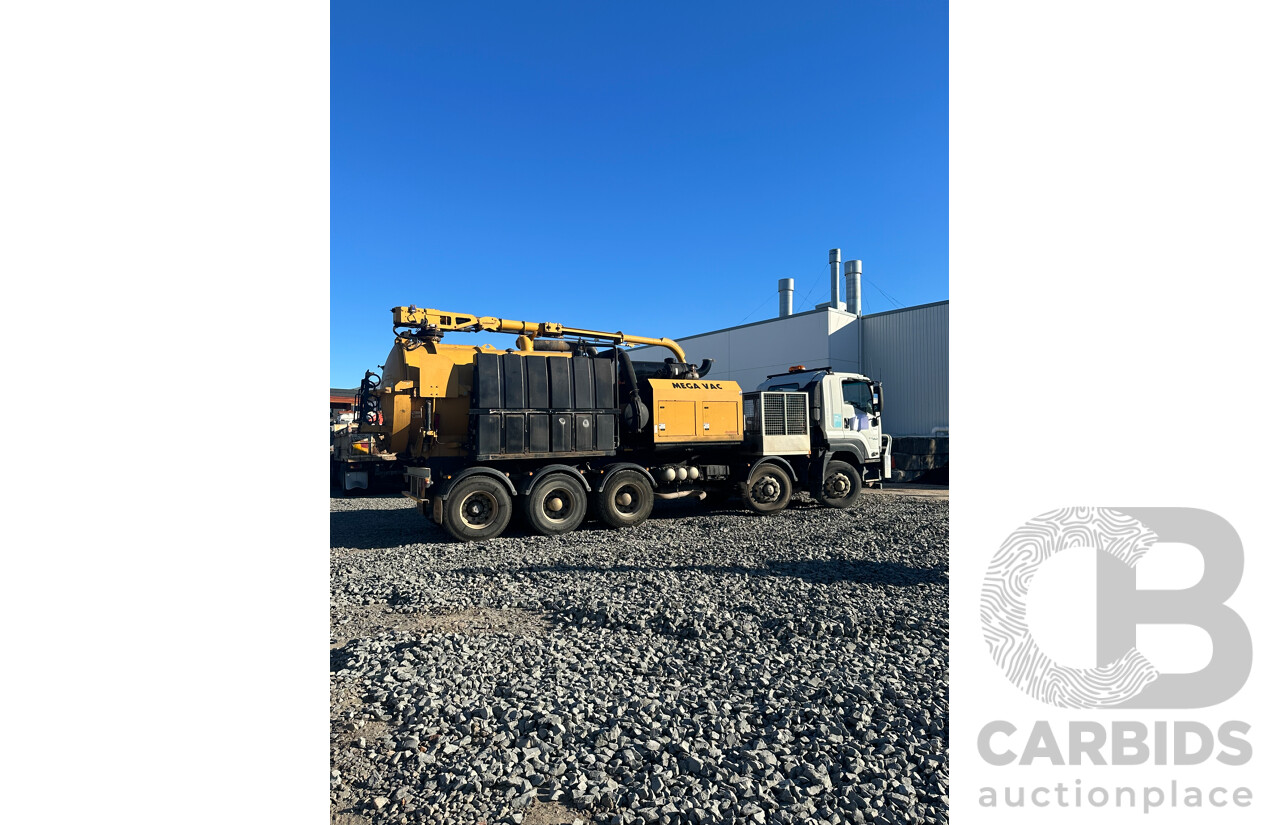

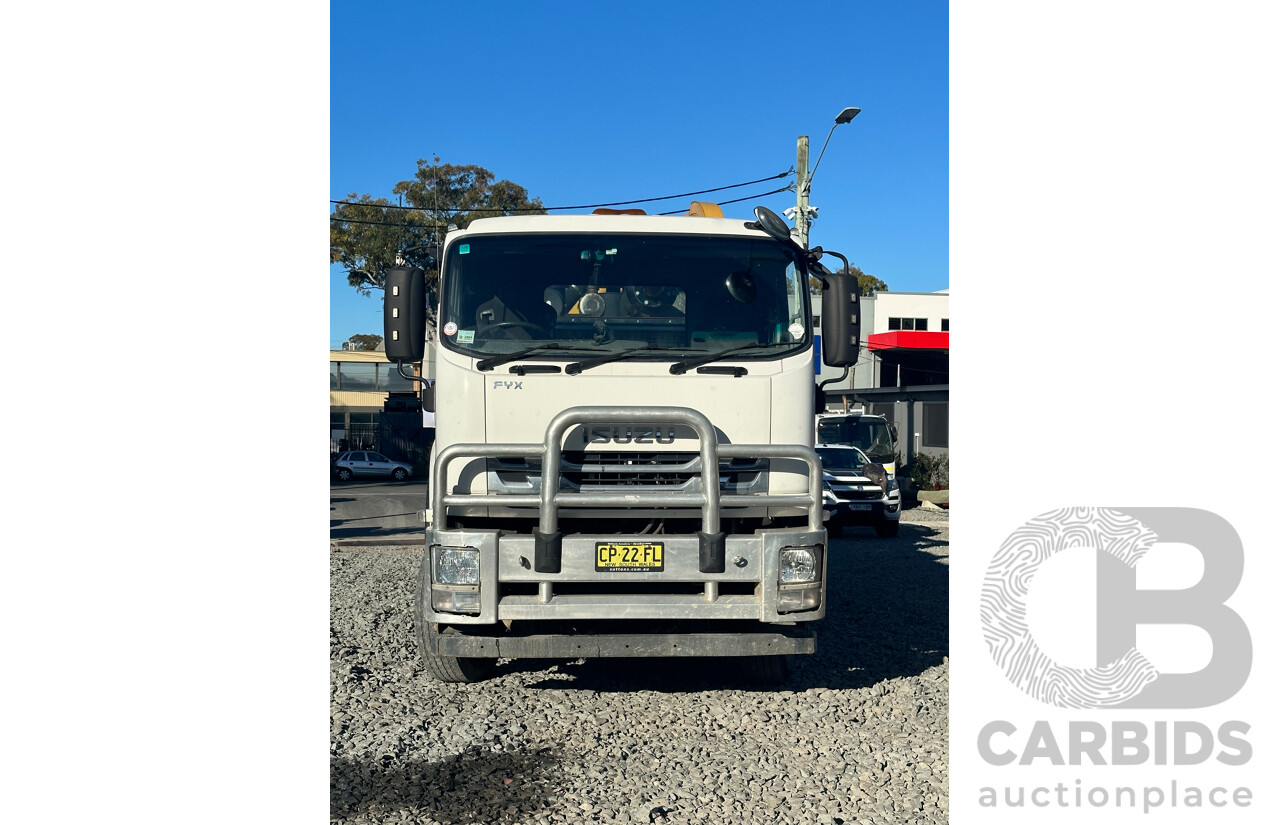

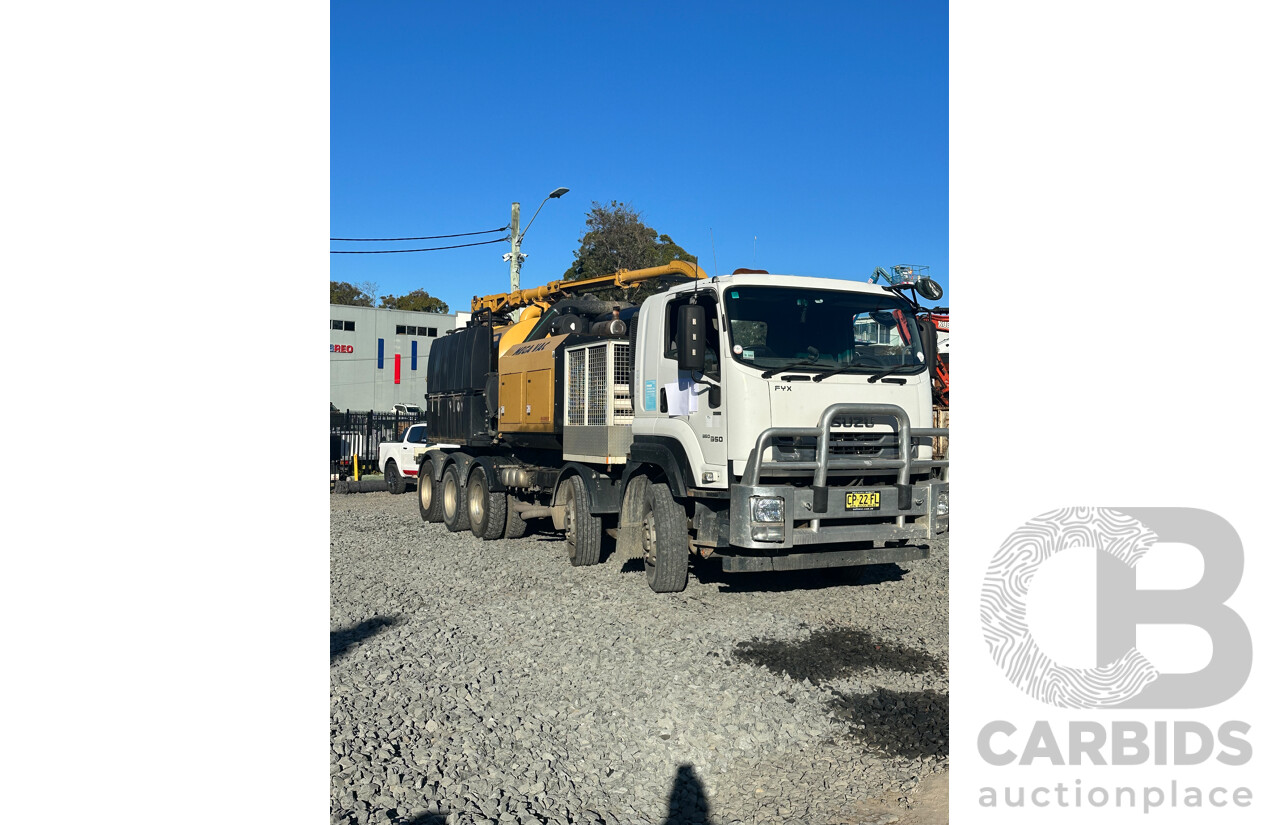

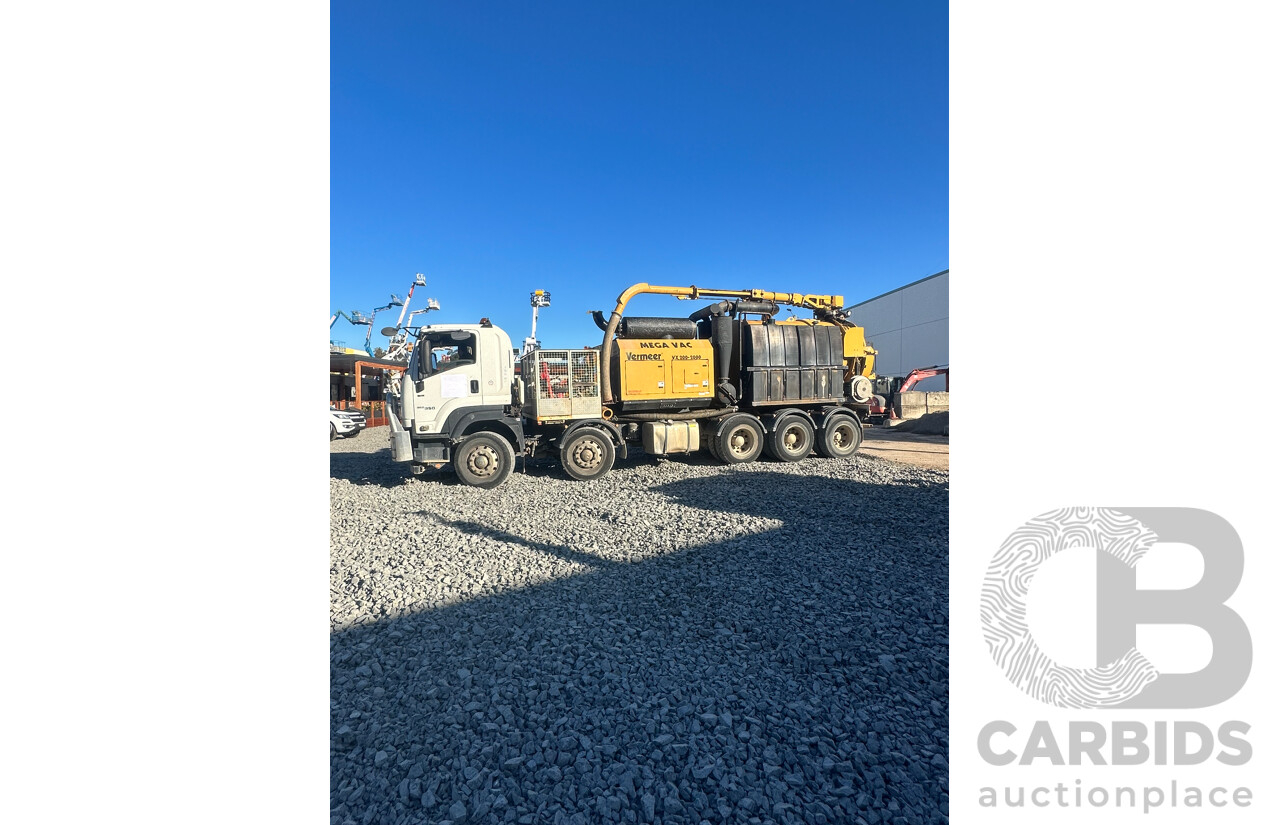

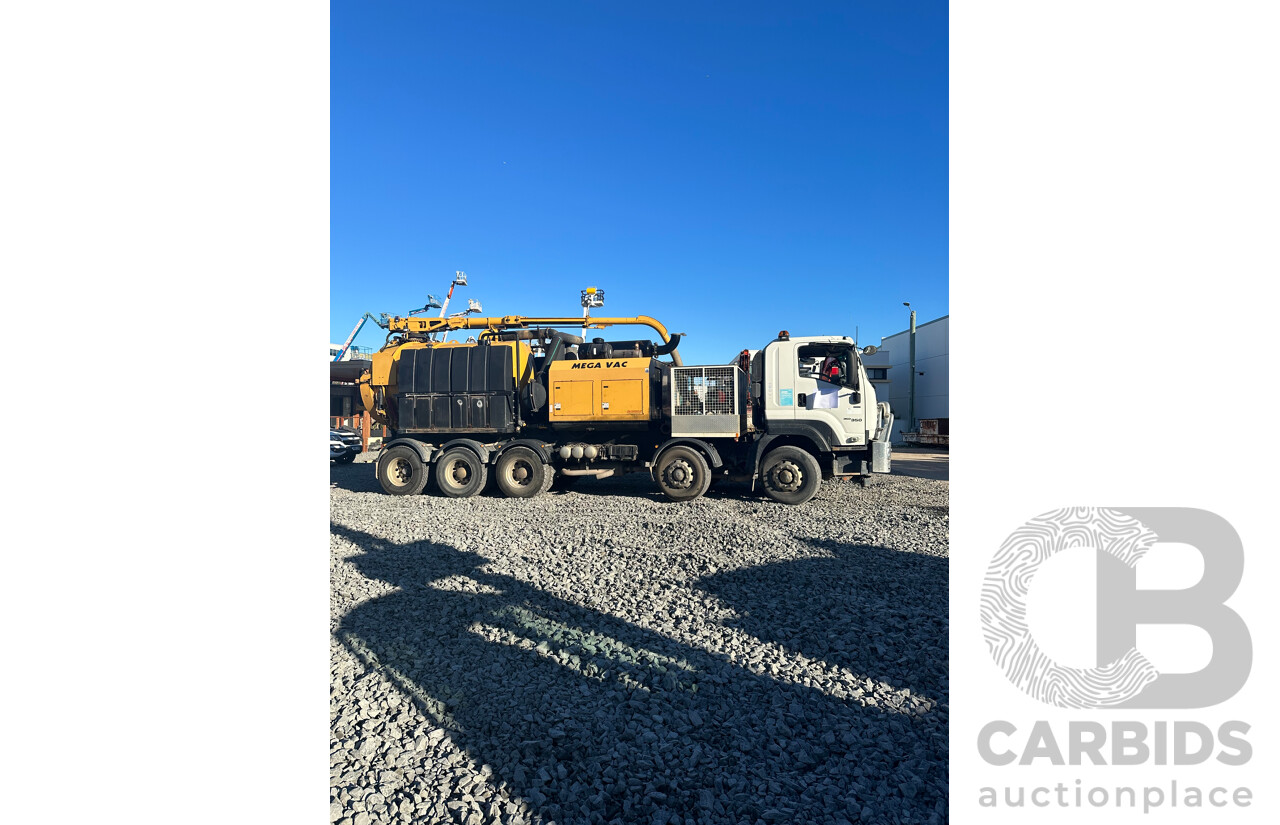

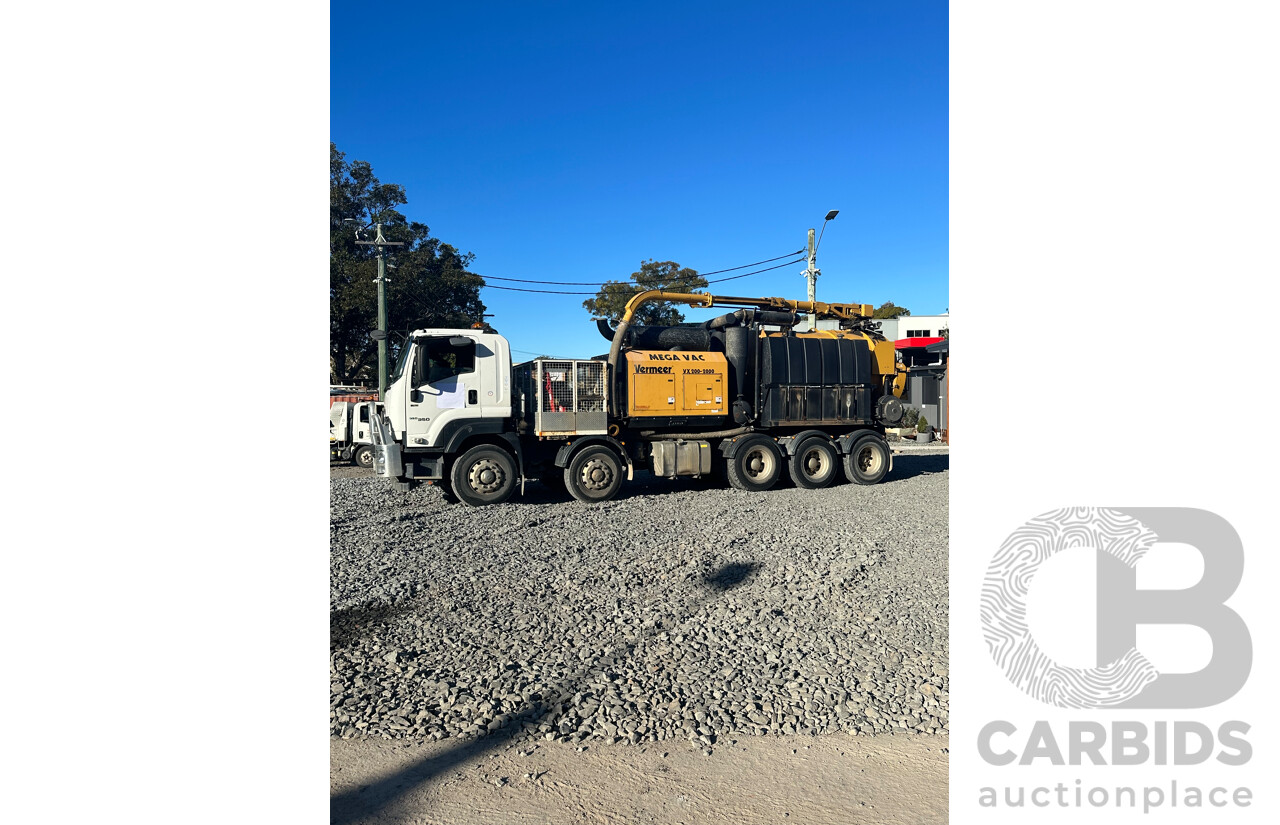

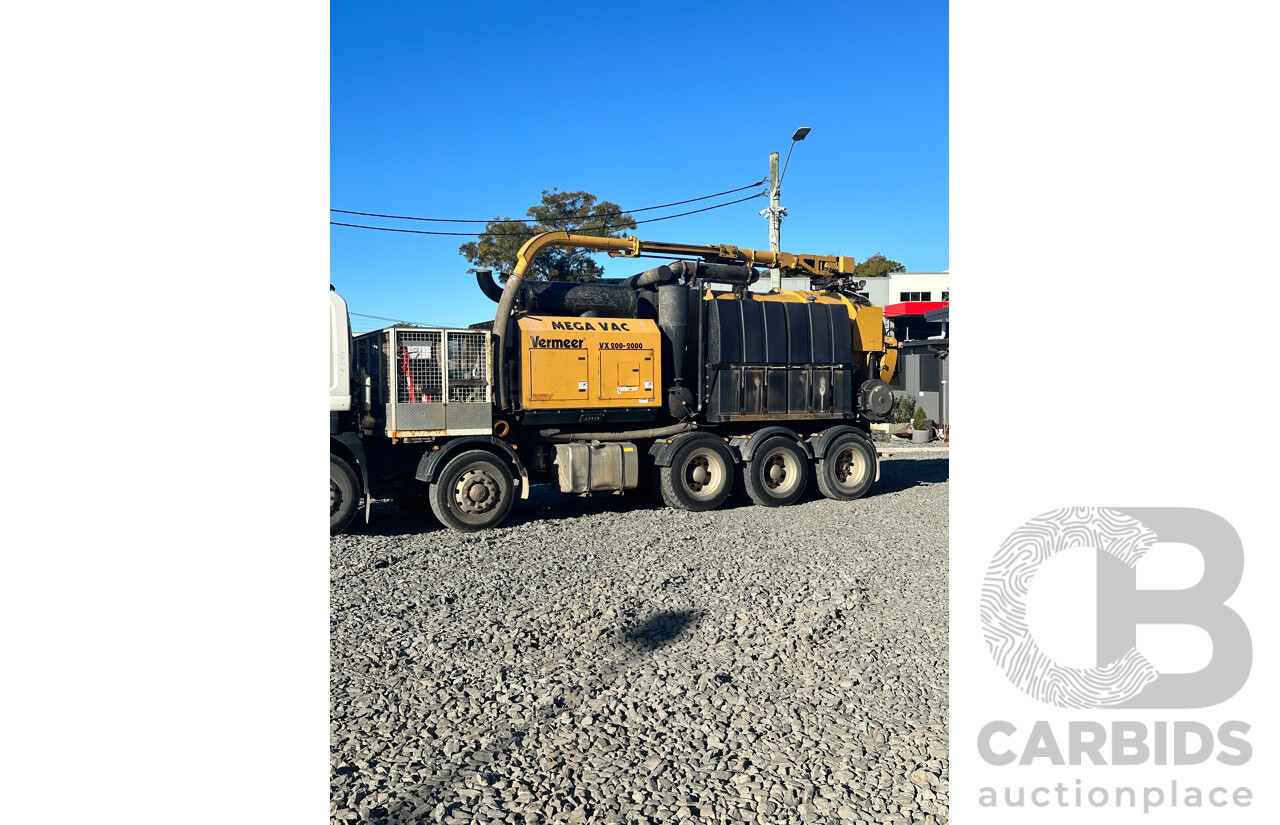

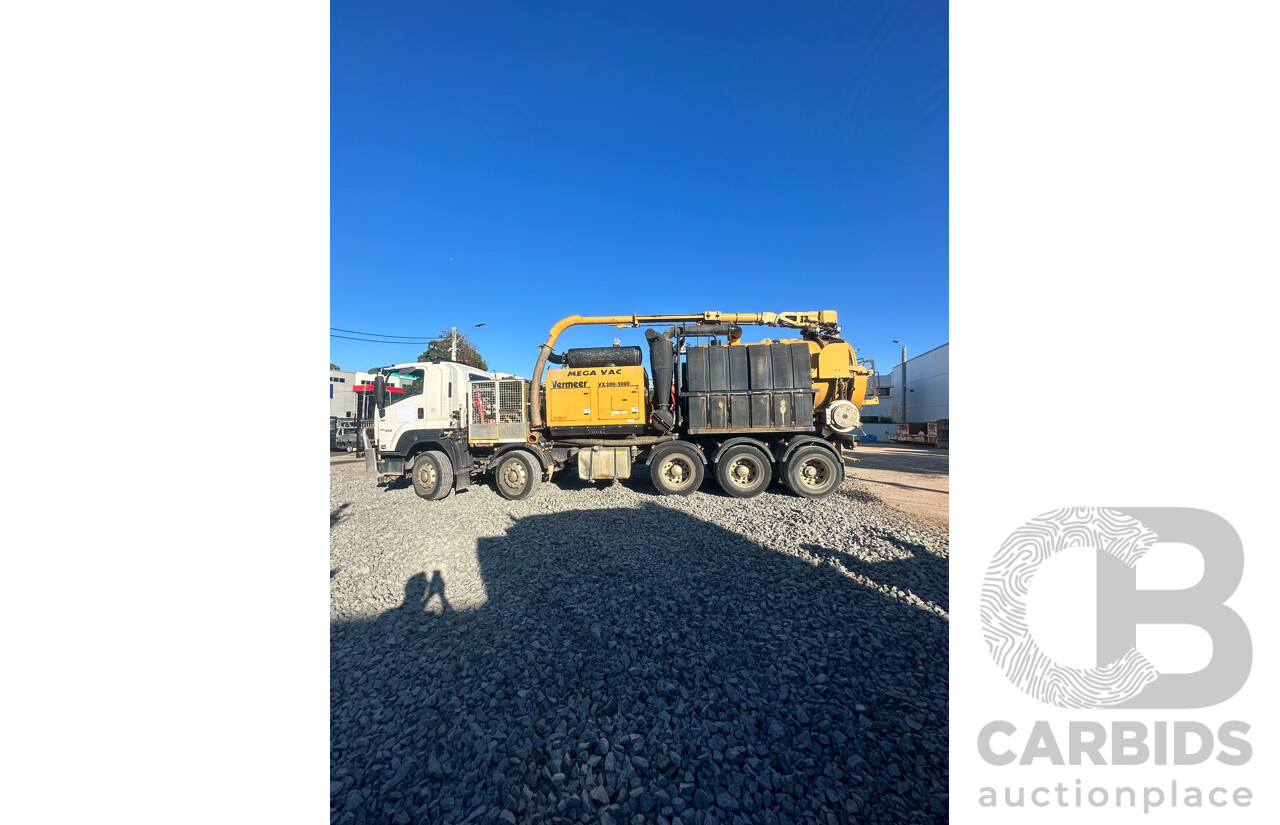

12/ 2017 White Isuzu FYX 350 Tanker With Vermeer Mega Vac
KEY FACTS
12/ 2017 White Isuzu FYX 350 Tanker With Vermeer Mega Vac
Make isuzu
Year: 2017

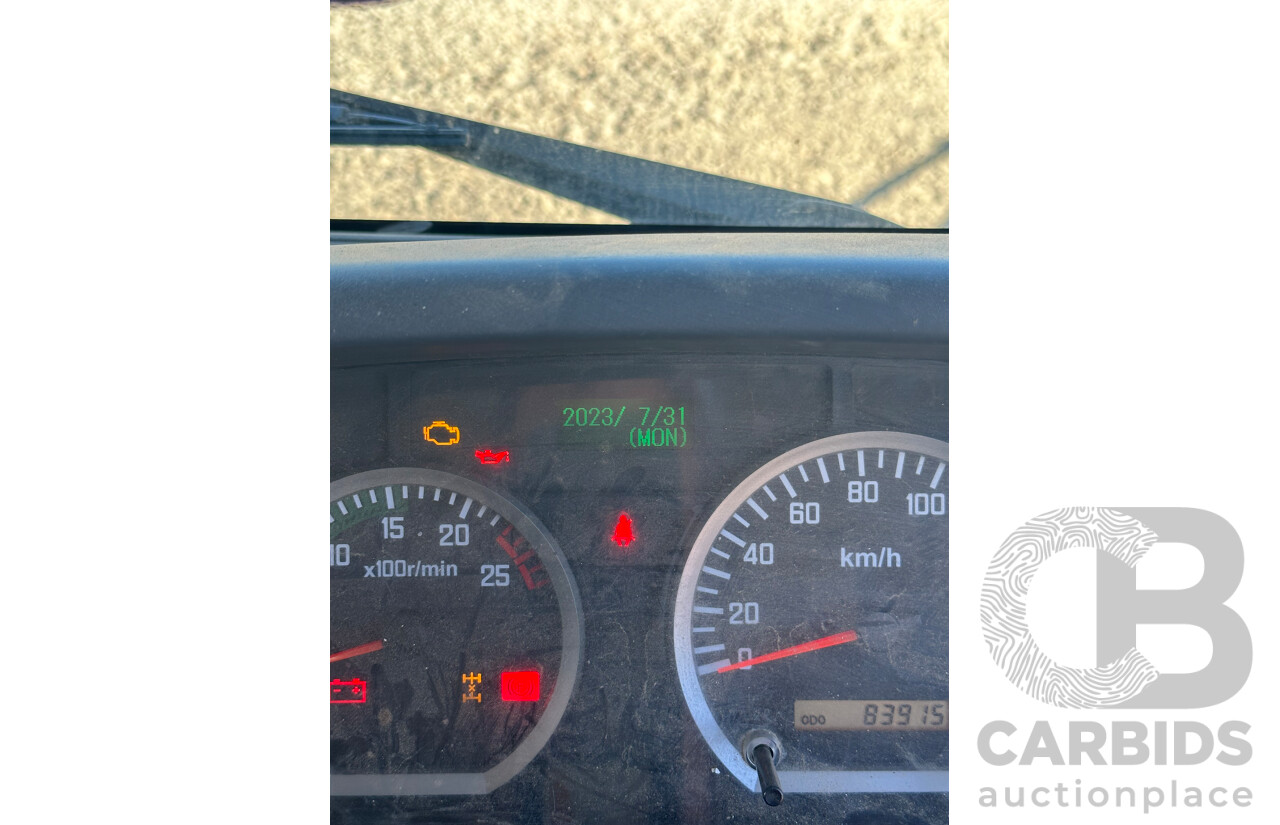

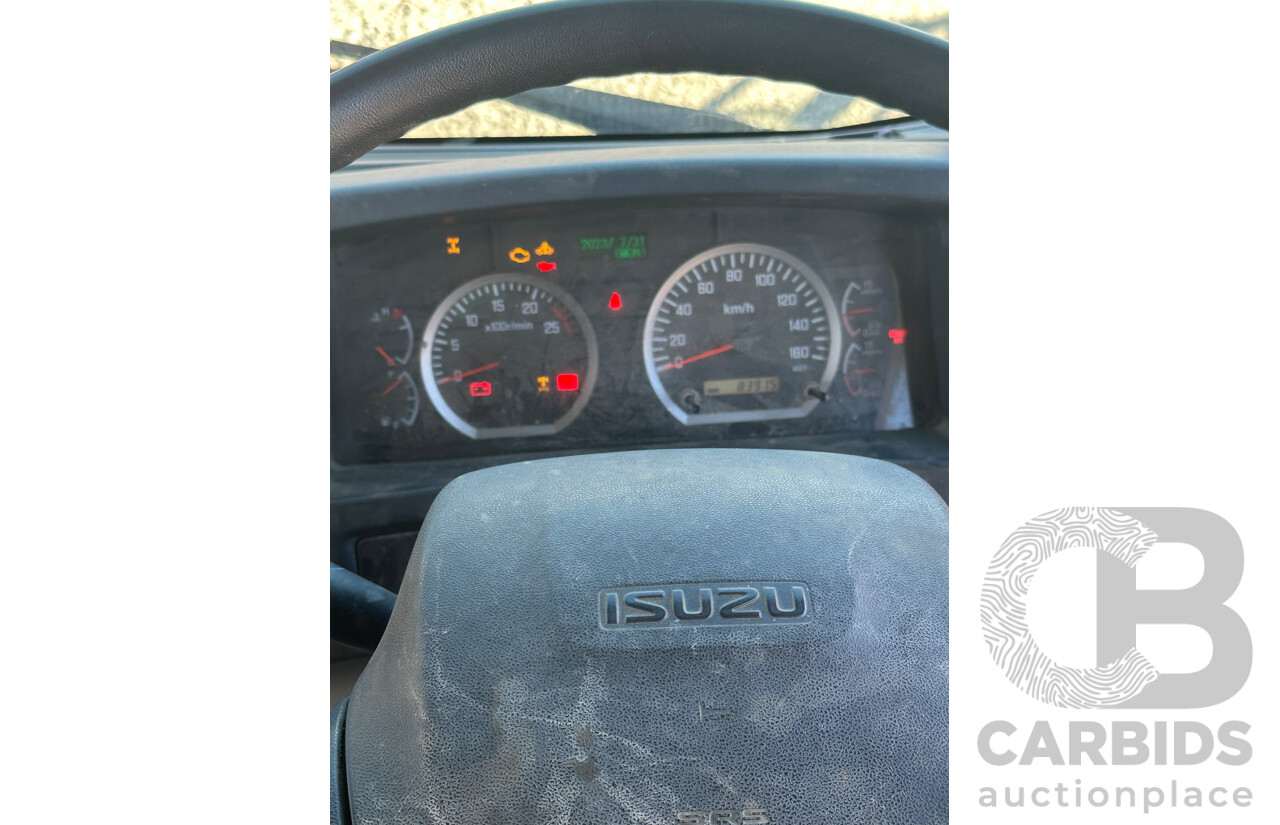

Odometer: 83,915km's

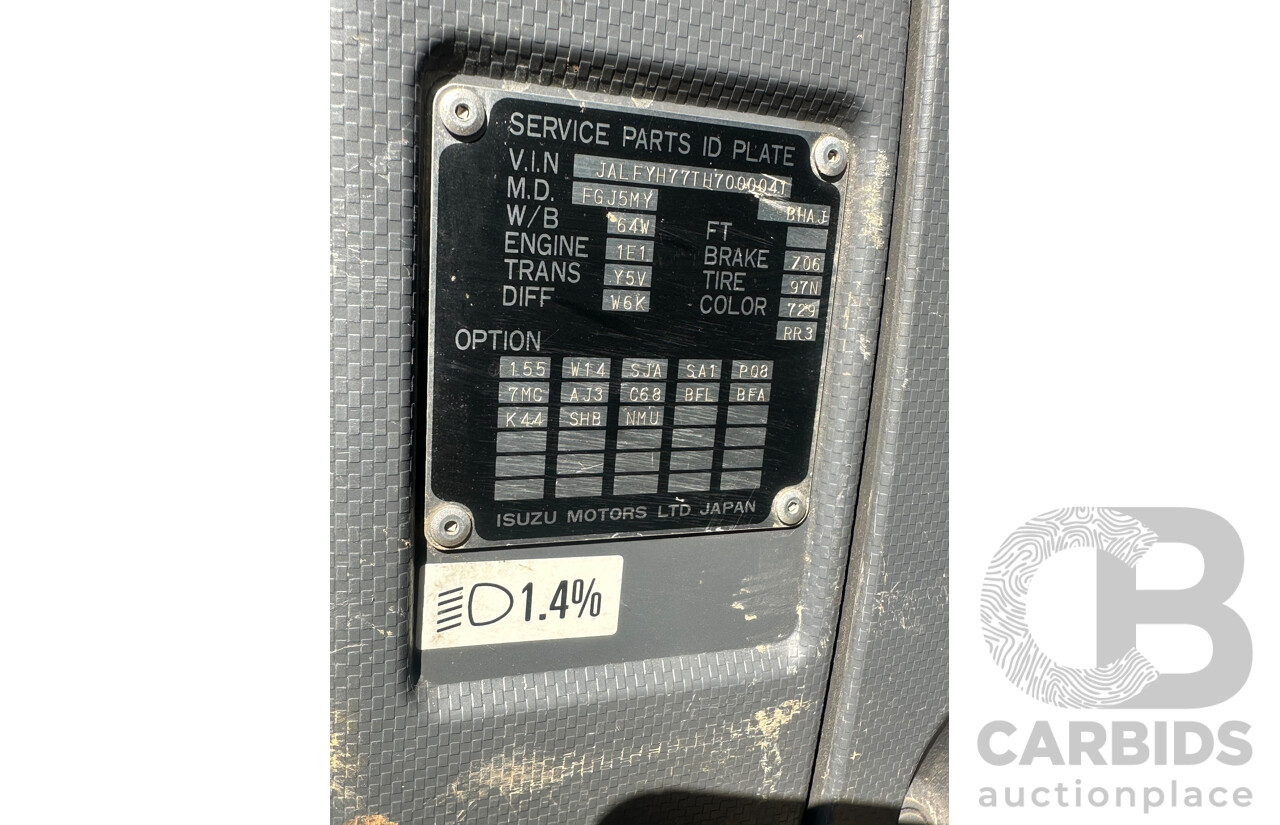

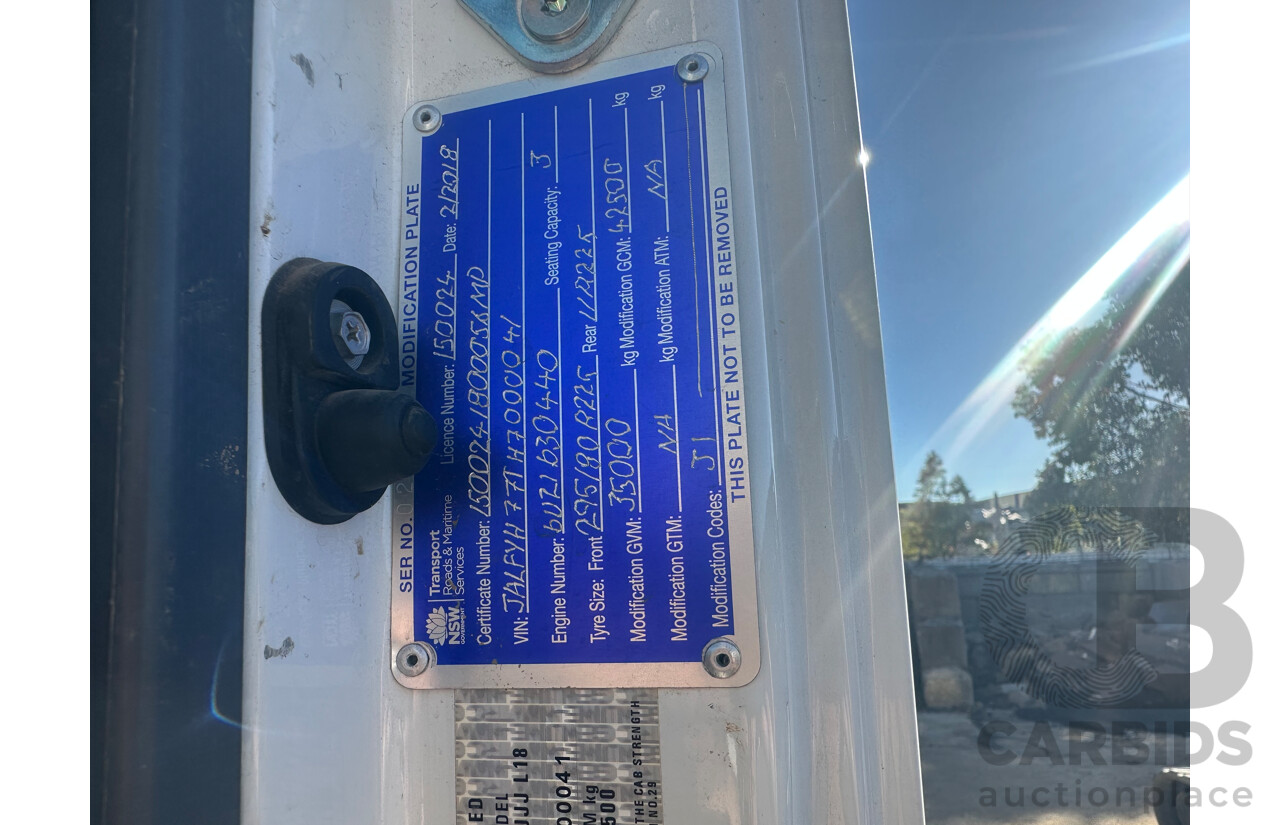

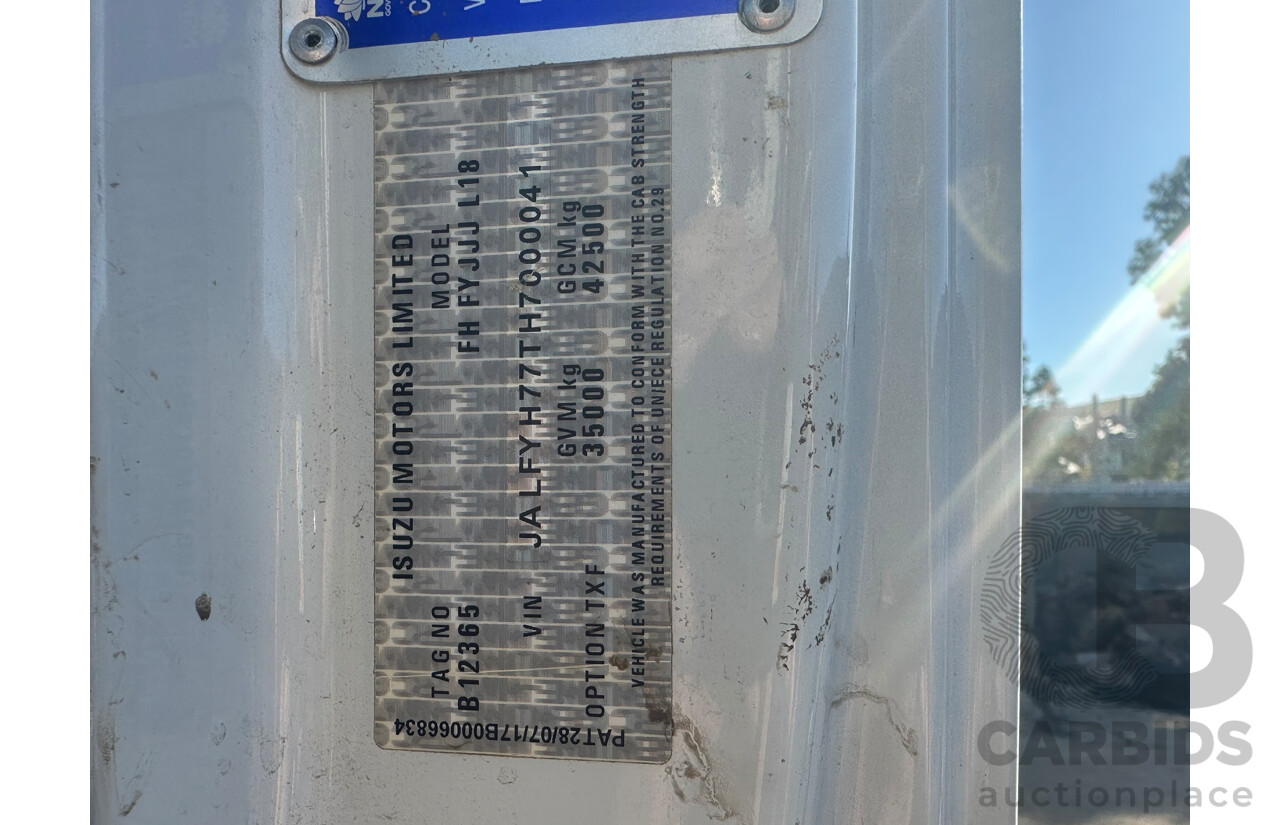

VIN: JALFYH77TH7000041
Model: Fyx350
Engine number:6421630440
Shape: Tank
Tare weight: 18160 GVM:35000 GCM: 42500 3 Seats
Dimensions : 3000mm High 2490mm wide Length: 9030mm
DRIVELINE AND CHASSIS SPECIFICATIONS
FYX 350-350 - ARK1406 01/21DRIVELINE AND CHASSIS SPECIFICATIONS

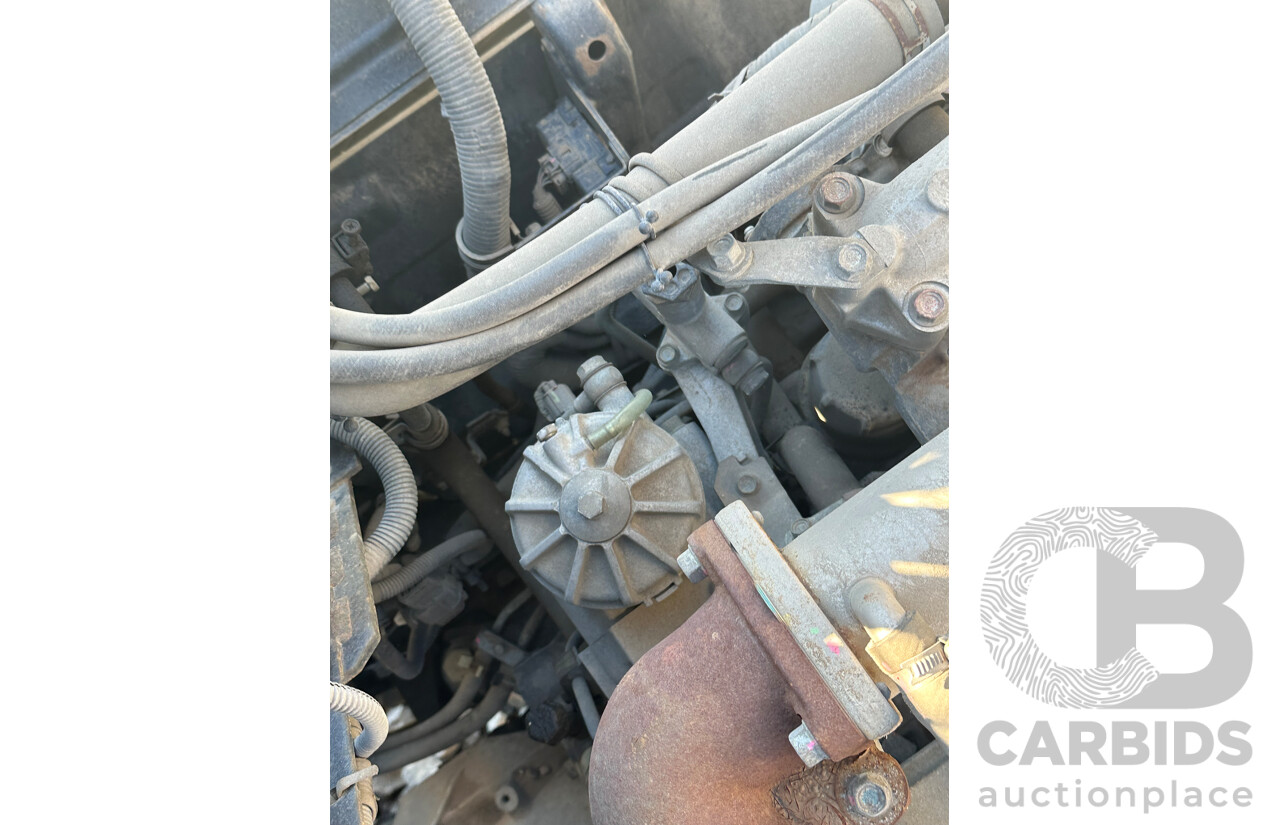

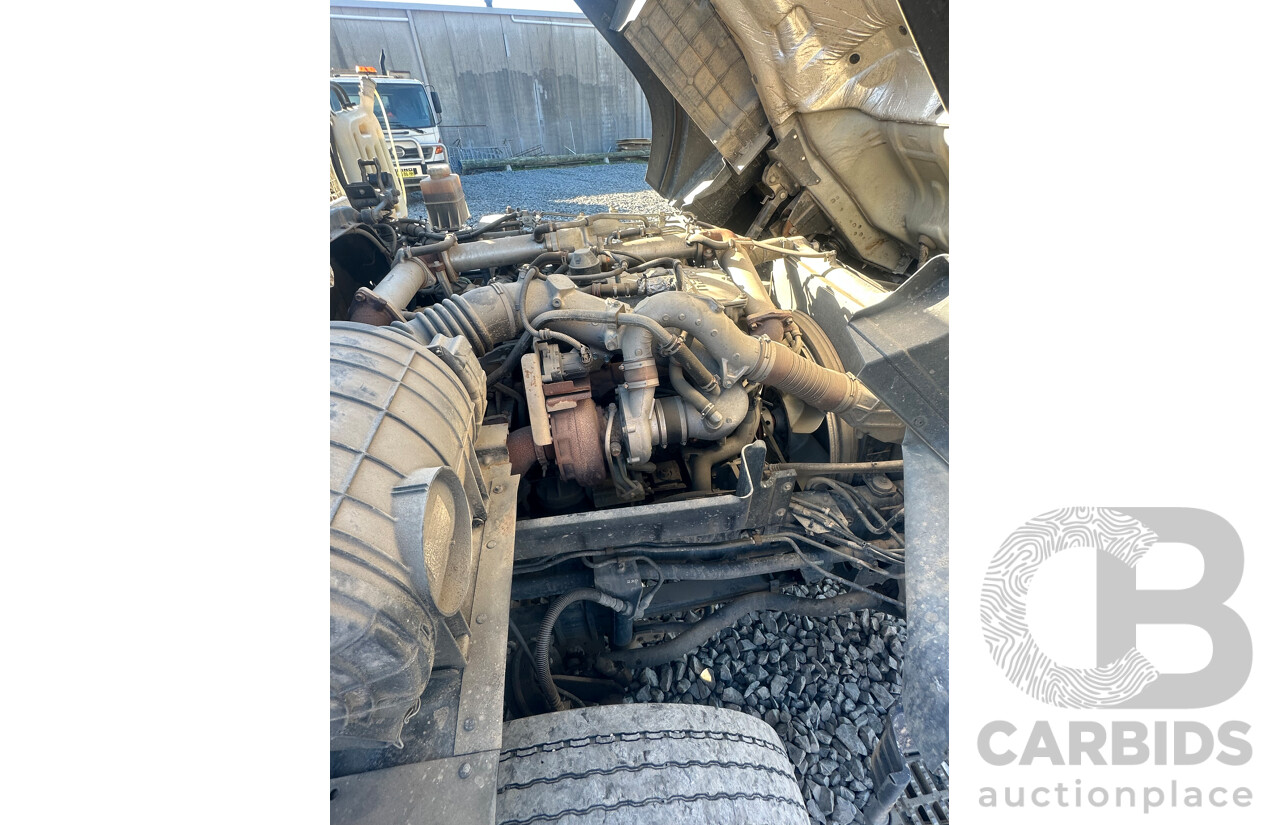

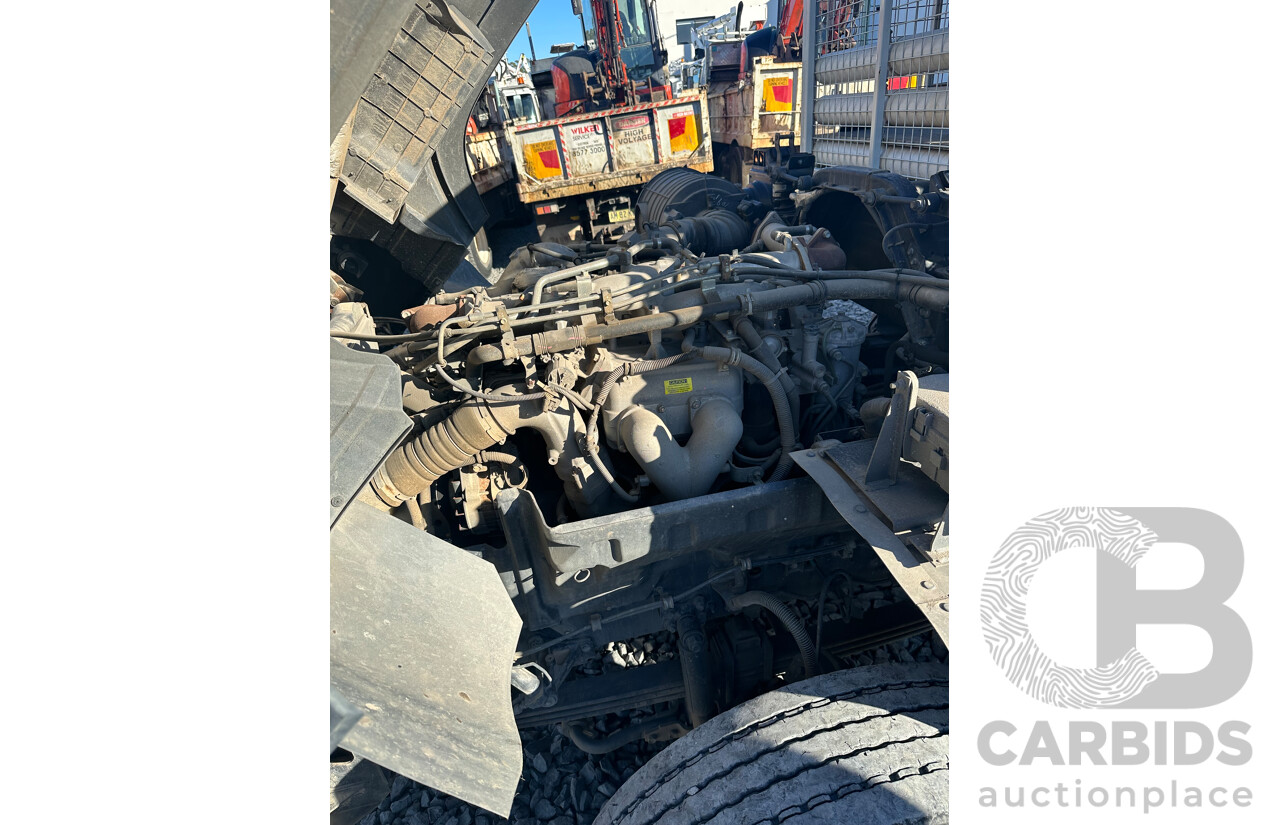

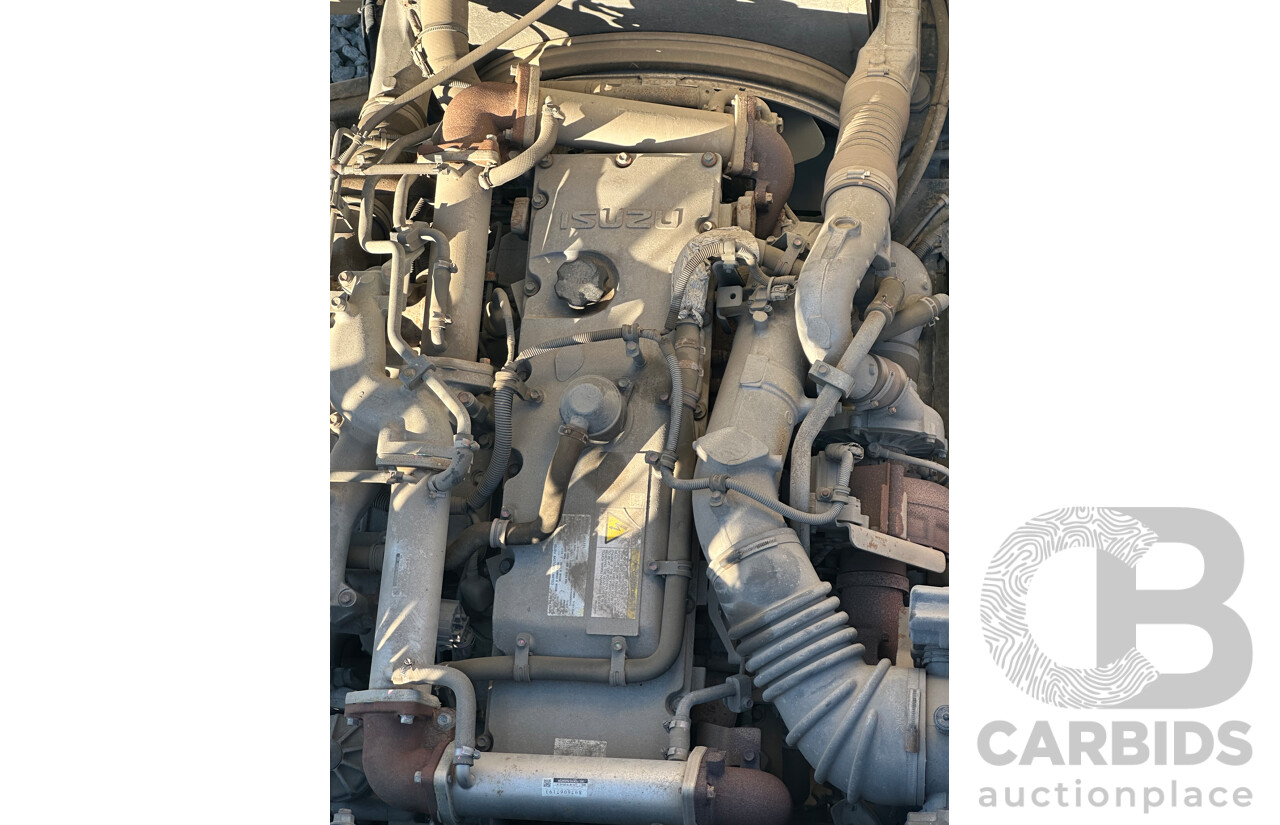

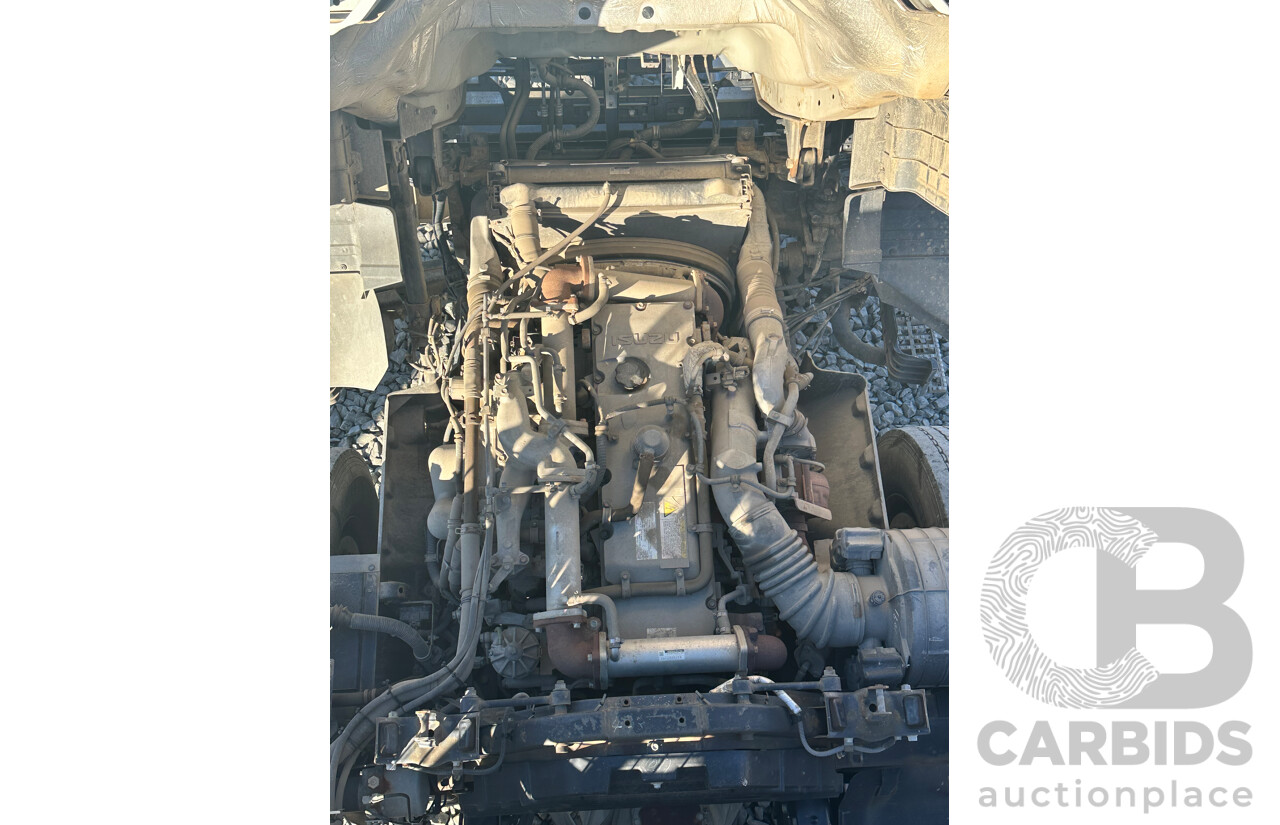

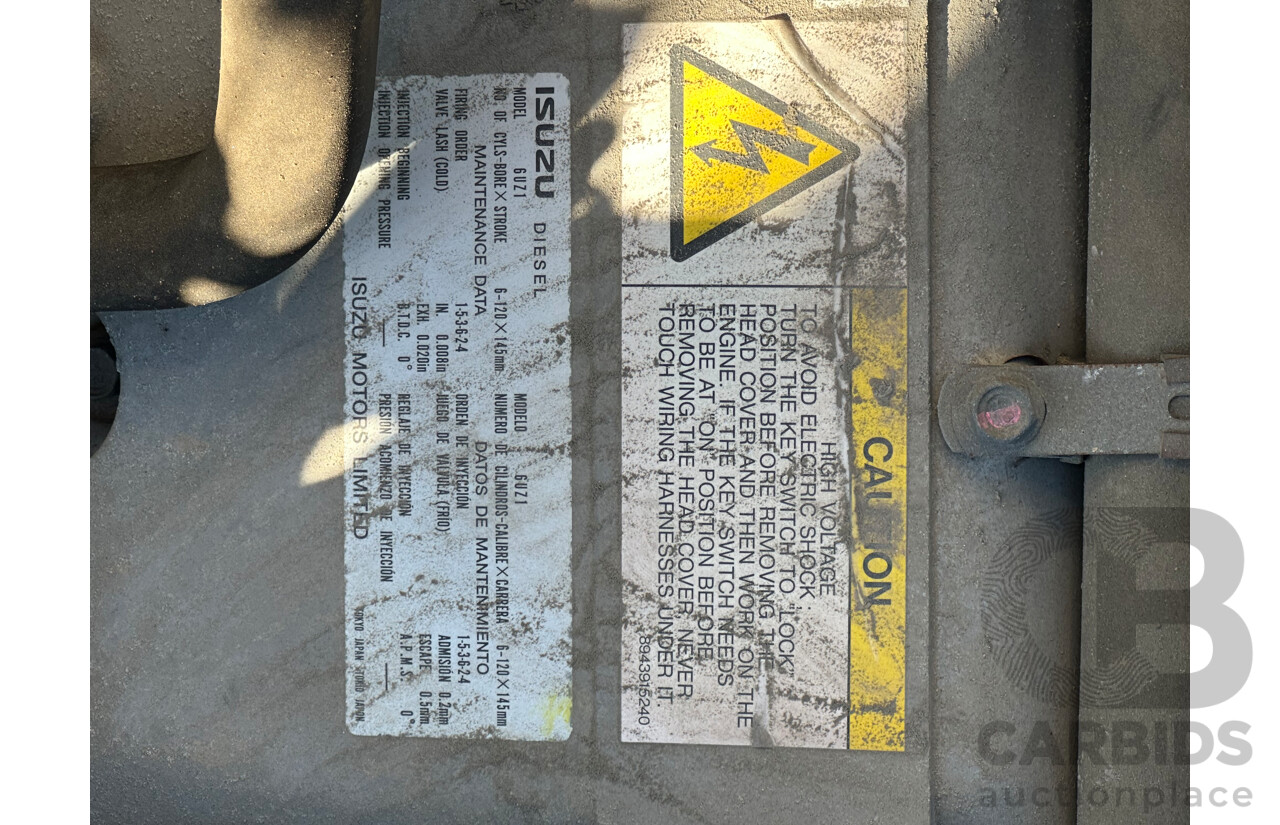

ENGINE: SITEC SERIES III 350 (ISUZU 6UZ1-TCN)- Type: 6 cylinder 24 valve SOHC
- Displacement: 9,839 cc
- Compression Ratio: 17.5:1
- Bore x Stroke: 120 x 145 mm
- Max power (DIN-NET): 257 kW (345 HP) @ 2,000 RPM
(JIS Gross): 265 kW (355 HP) @ 2,000 RPM - Max torque (DIN-NET): 1,422 Nm (1,049 lb.ft) @ 1,400 RPM

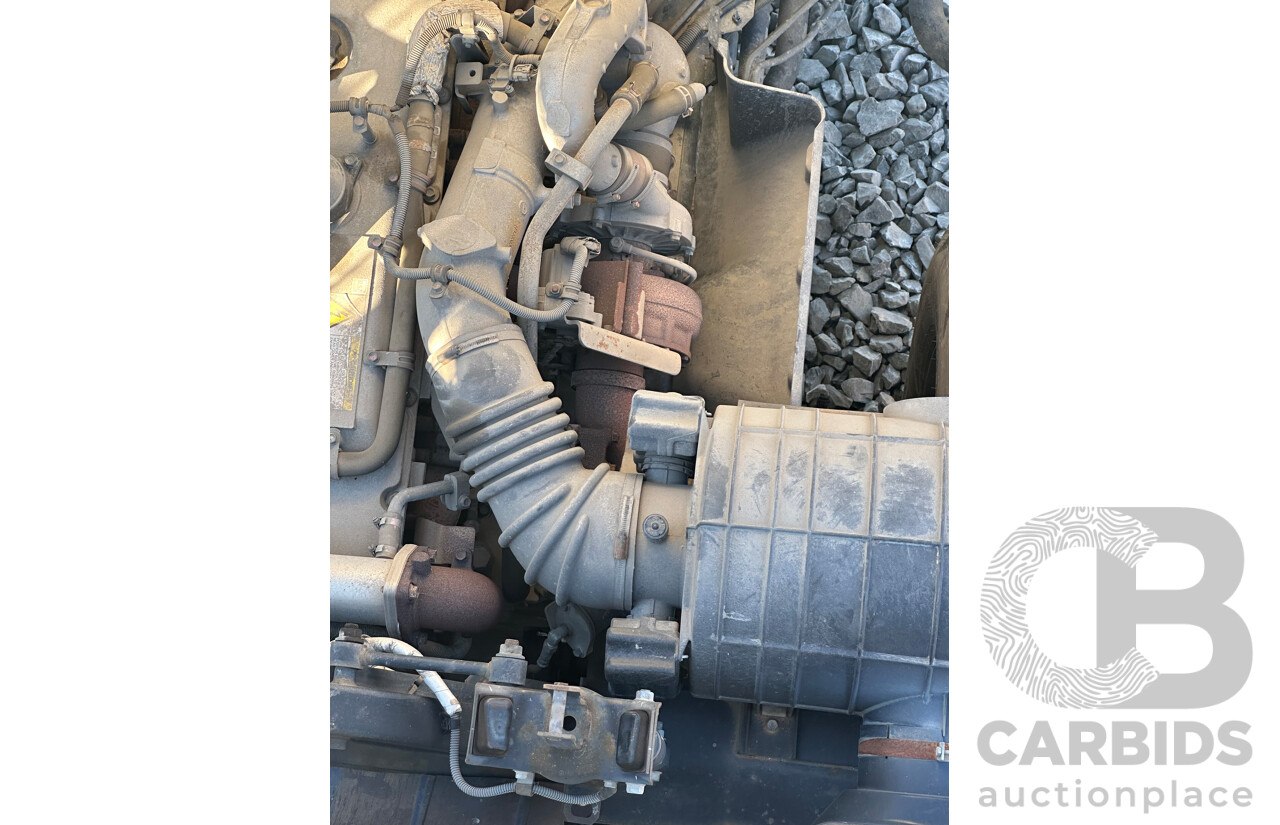

(JIS Gross): 1,472 Nm (1,086 lb.ft) @ 1,400 RPM - Induction system: Electronically controlled variable nozzle turbocharger with air-to-air intercooler.
- Fuel injection: Direct injection high pressure common rail system.
- Emission control system: Cooled EGR with exhaust Diesel Oxidation
- Catalyst (DOC). ADR 80/03 (Euro V) compliant.
TRANSMISSION
- ALLISON 4430 series
- 6 speed automatic. 5th generation electronic controls with adaptive shift.
- Allison long life TranSynd synthetic fluid.
- LHS and top PTO openings on transmission bellhousing. Engine driven PTO
BRAKES
- Meritor ‘Q-Plus’ dual circuit full air ‘S-cam’ front and rear drum brakes
with auto slack adjusters. - ABS.
- Front drum size: 419 x 152 mm
- Rear drum size: 419 x 178 mm
- Spring park brake acting on all rear wheels.
- Air controlled exhaust brake.
- Air dryer.
STEERING
- Power assisted recirculating ball steering.
- Turns lock to lock: 3.8
- Overall gear ratio: 1st axle: 18.8:1, 2nd axle: 22.9:1
- Maximum angle:
1st axle: 40.0° (inside wheel) / 32.2° (outside wheel)
2nd axle: 34.0° (inside wheel) / 28.6° (outside wheel)
WHEELS AND TYRES
- 22.5 x 8.25 ten stud ISO standard polished Alcoa aluminium wheels.
- Steer axle: 295/80R22.5 152/148M Michelin XZE2 Tubeless
- Drive axles: 11R22.5 148/145L Michelin X Multi D Tubeless
- Tag axle: 11R22.5 148/145L Michelin XZE2 Tubeless
- Maximum tyre rating:
- Steer axle: 14,200kg
- Tandem drive axle set: 23,200kg
- Tandem drive + tag axle set: 34,800kg
- Spare wheel rim supplied.
CAB INTERIOR
- Isri 6860 air suspension driver’s seat with pneumatic lumbar support,

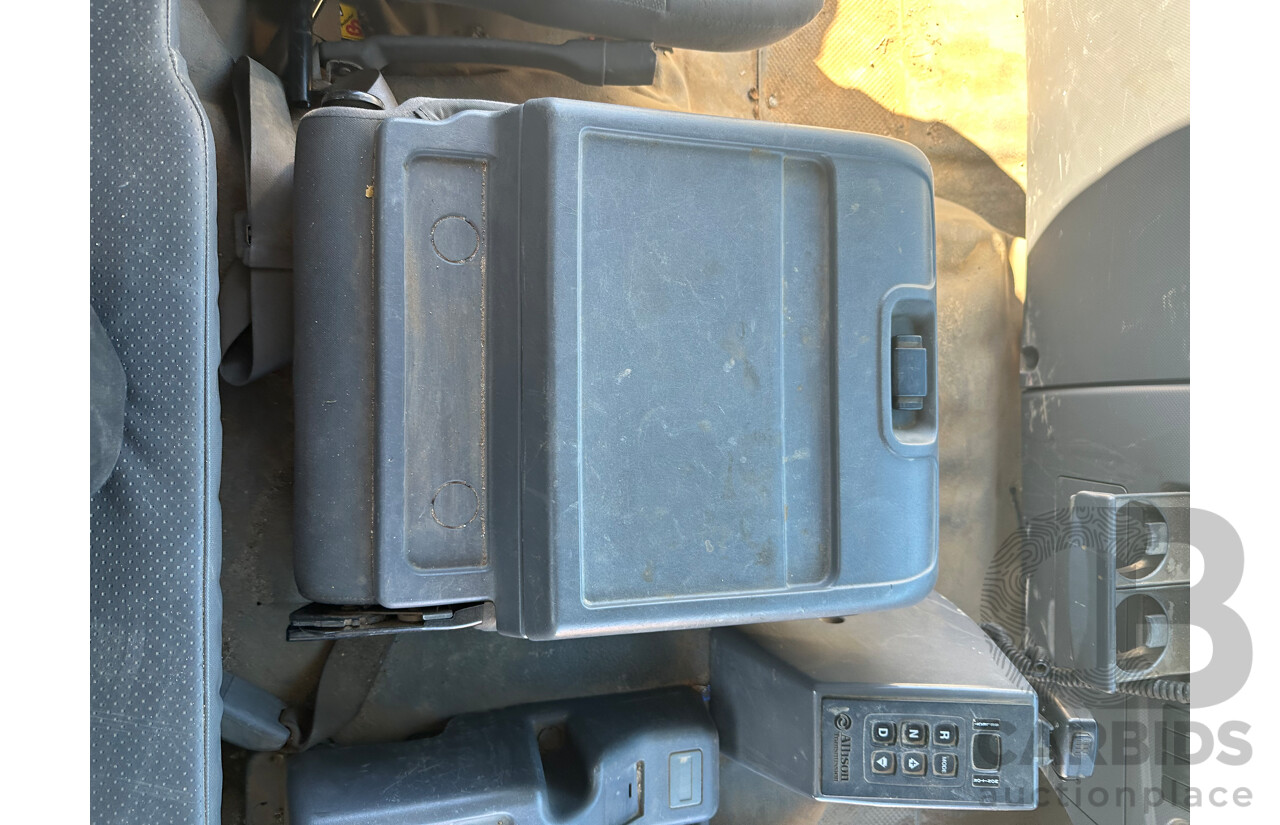

height, rake and automatic weight adjustment. - Front passenger adjustable bucket seat and front centre seat with folding
seat back. - 3-point lap sash seatbelts in all outboard seating positions. Driver seatbelt
with pretensioner integrated with driver seat. Centre seat lap belts. - ADR 42 compliant sleeper with mattress.
- Driver airbag.
- Door and roof pillar entry assist grips.
- Full interior trim, padded roof lining and vinyl floor covering. Overhead front
storage compartments. - Tilt/Telescopic adjustable steering column, soft feel urethane steering wheel.

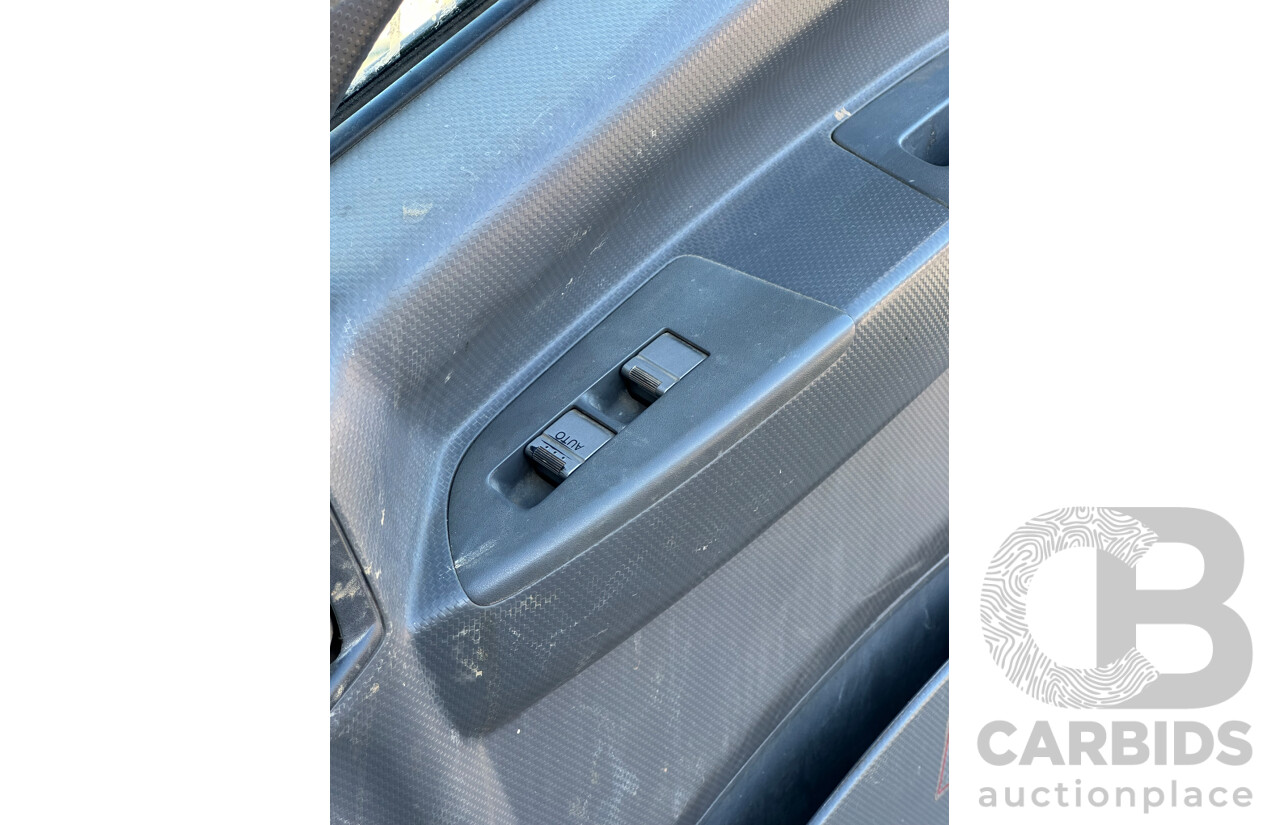

- Electric windows.
- Central locking with remote keyless entry.
- Twin cup holders. 24V cigarette lighter. Dashboard hook.
- Front door mounted storage pockets and driver’s side ashtray.

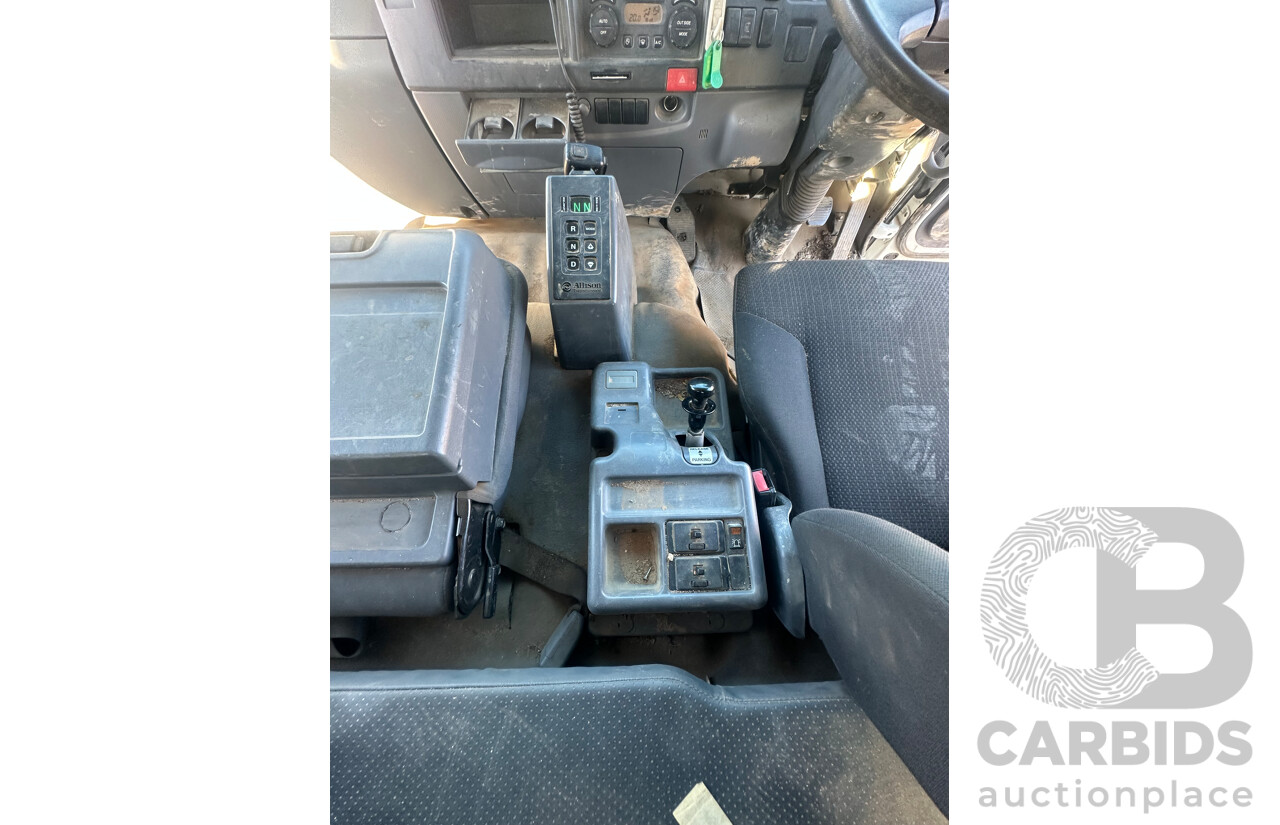

- Centre console box with storage tray.
- Front passenger glovebox.
- Fully integrated auto control air conditioning and heater/demister with
- 4-speed fan and outlets for windscreen, side windows, face and floor.
- Fluorescent type interior lamp with On/Door/Off switch
- 2 DIN, two speaker multimedia unit with 6.2” LCD capacitive touch screen.
1.6GHz processor with Android operating system. DAB+ digital radio and
fully integrated Bluetooth with voice recognition. Inbuilt PDF, photo and
movie viewer. Internet radio accessible via smartphone. 32GB internal file
storage. USB and auxilliary input connection provisions. Firmware and map
updates possible via smartphone. - DIN sized compartment for storage or for CB radio installation.

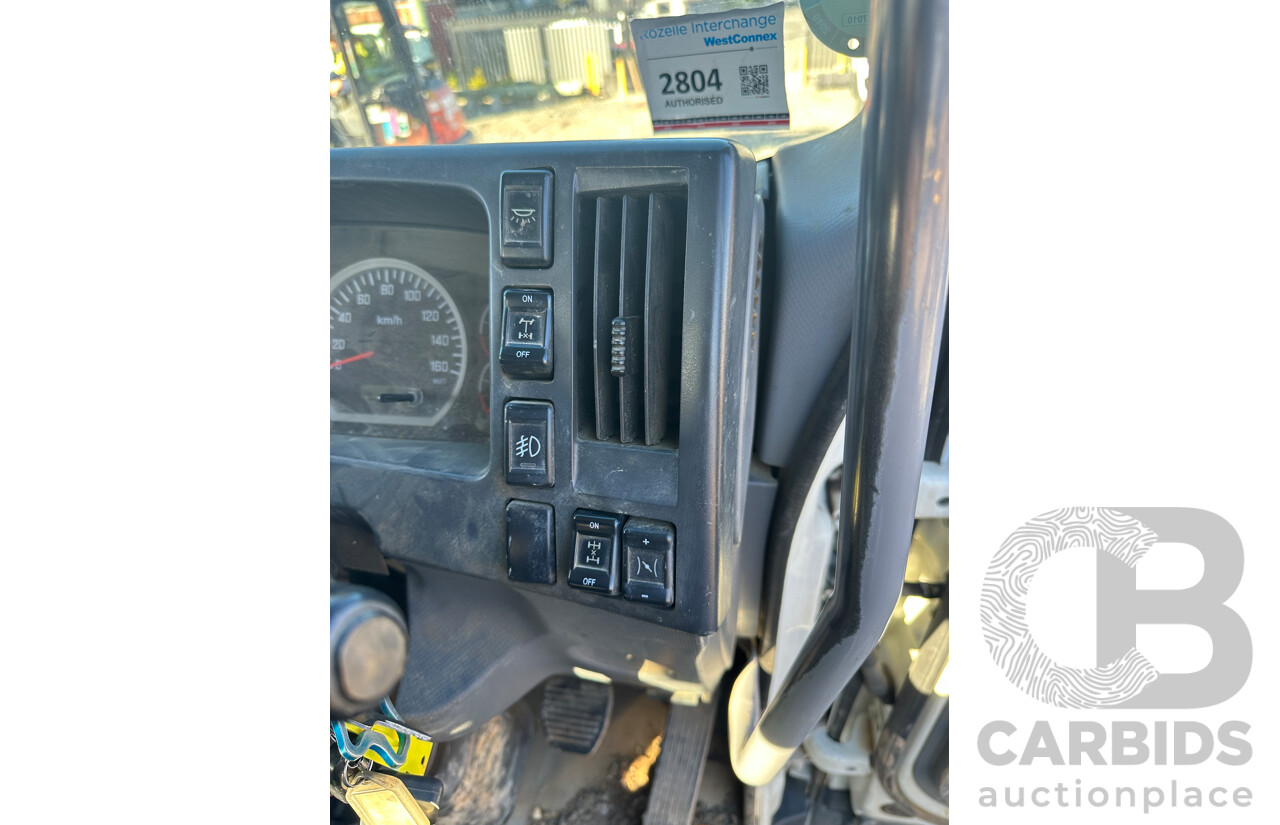

DRIVER CONTROLS
- Key-operated engine start/stop and steering lock. Engine idle speed control.
- Inter-axle lock and cross lock engage switches.

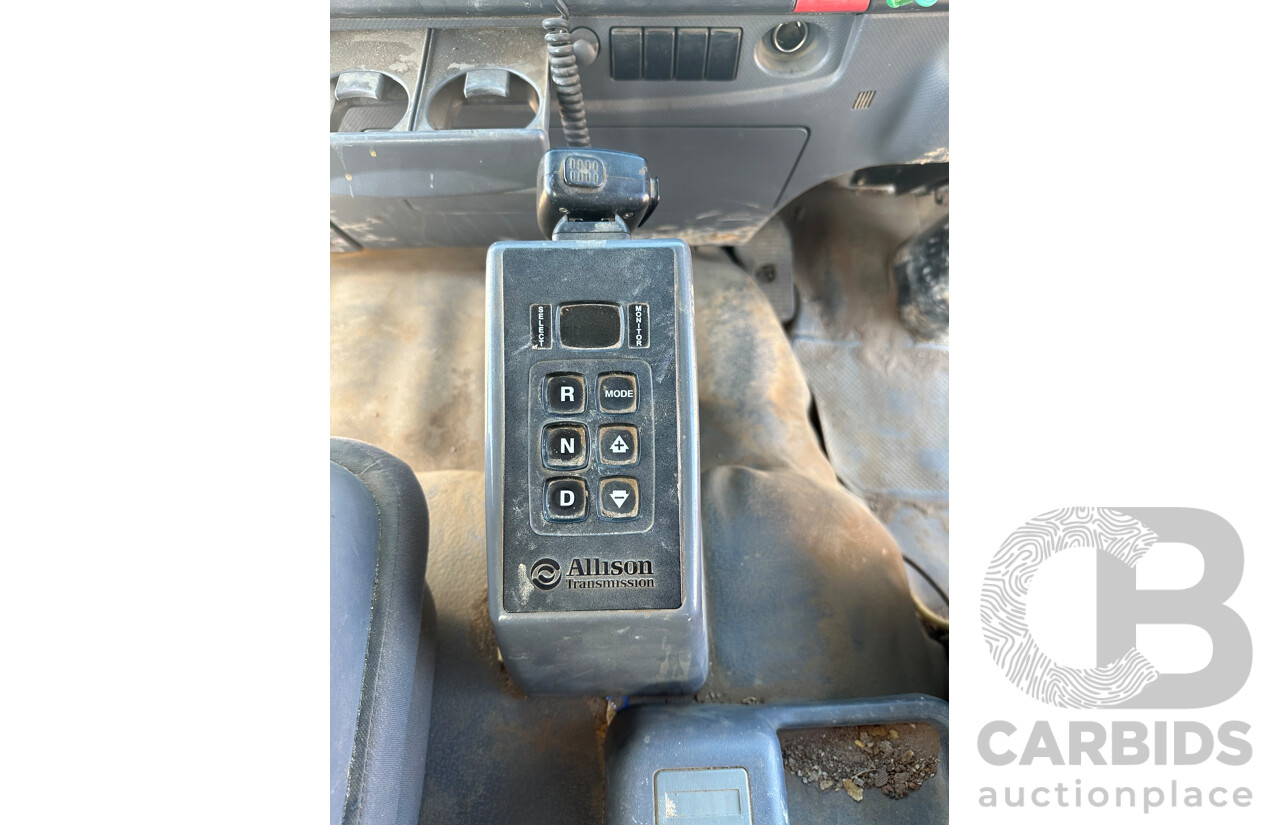

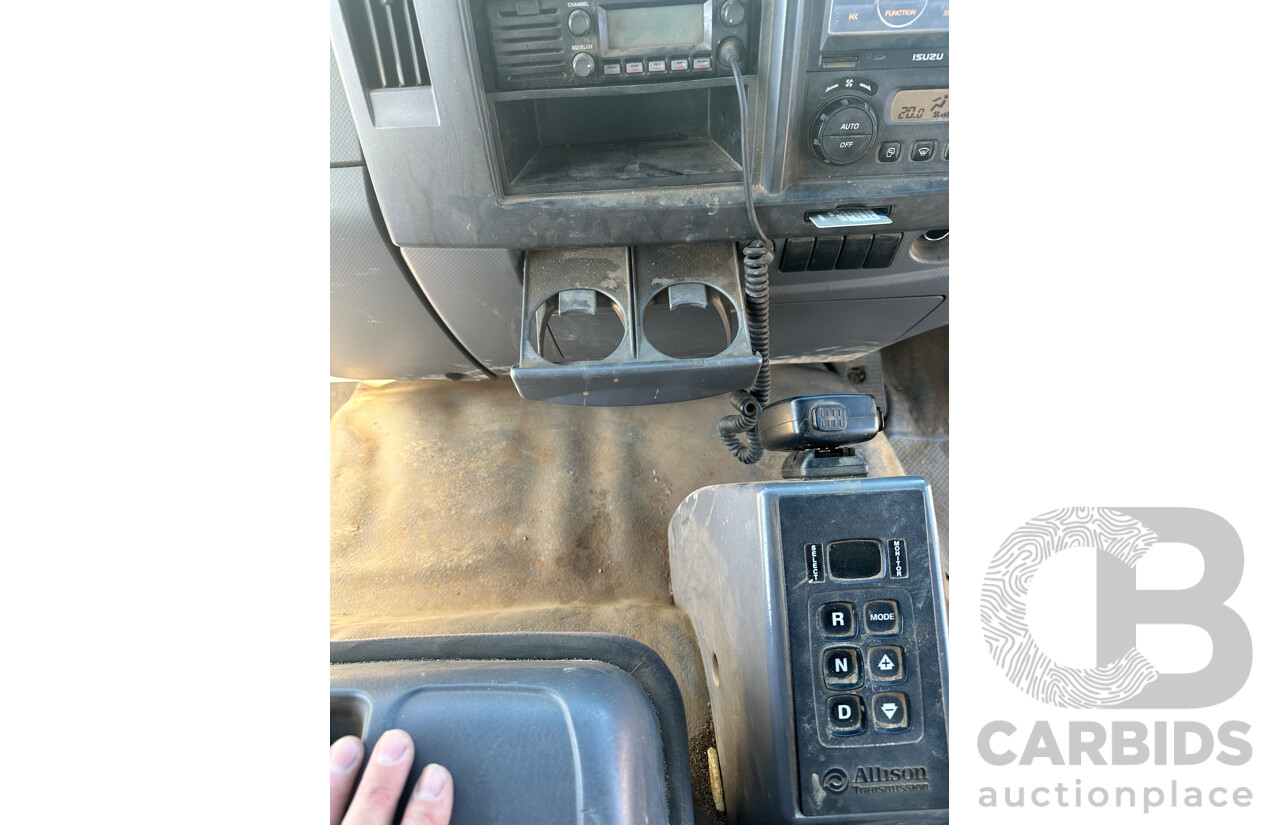

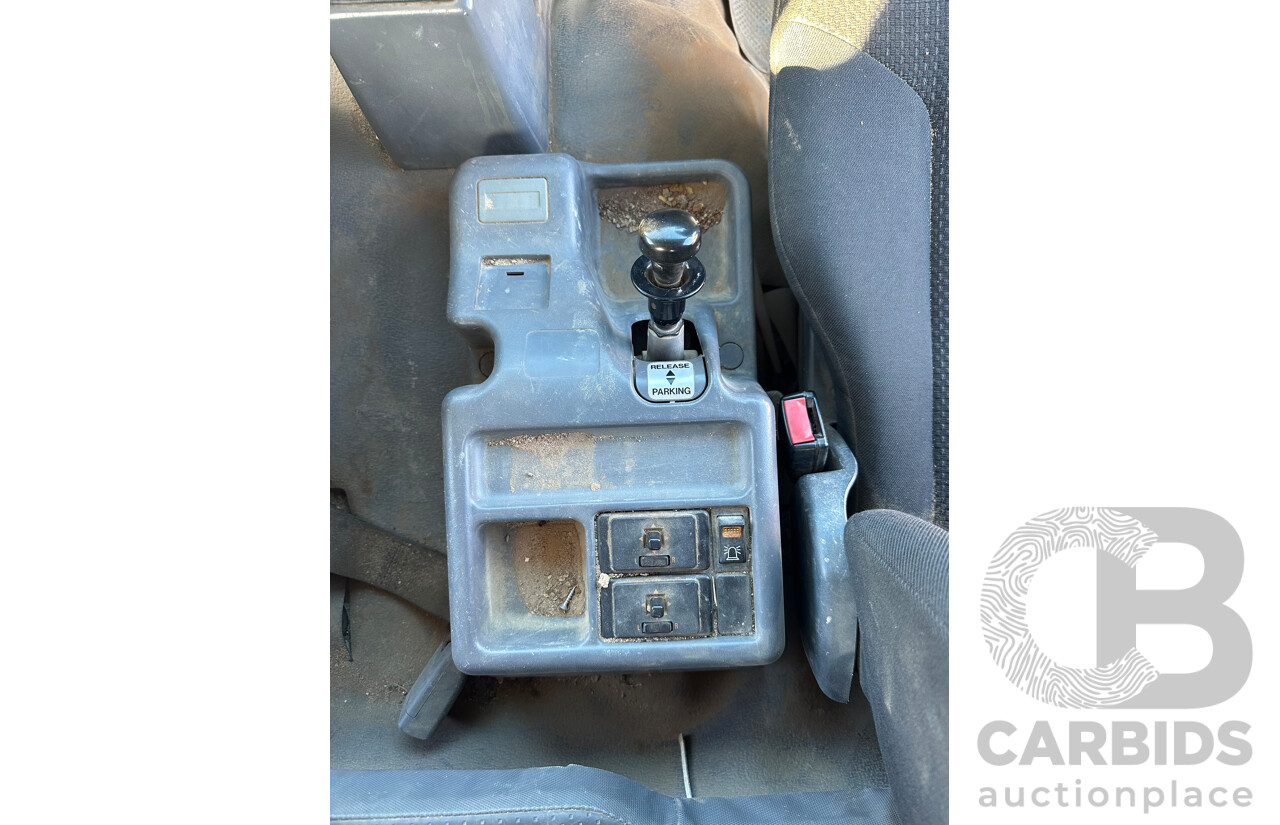

- Push button gear selection control.
- Left side combination stalk: Windscreen wipers, washers and exhaust brake.
- Right side combination stalk: Turn signals, headlamps and cruise control.

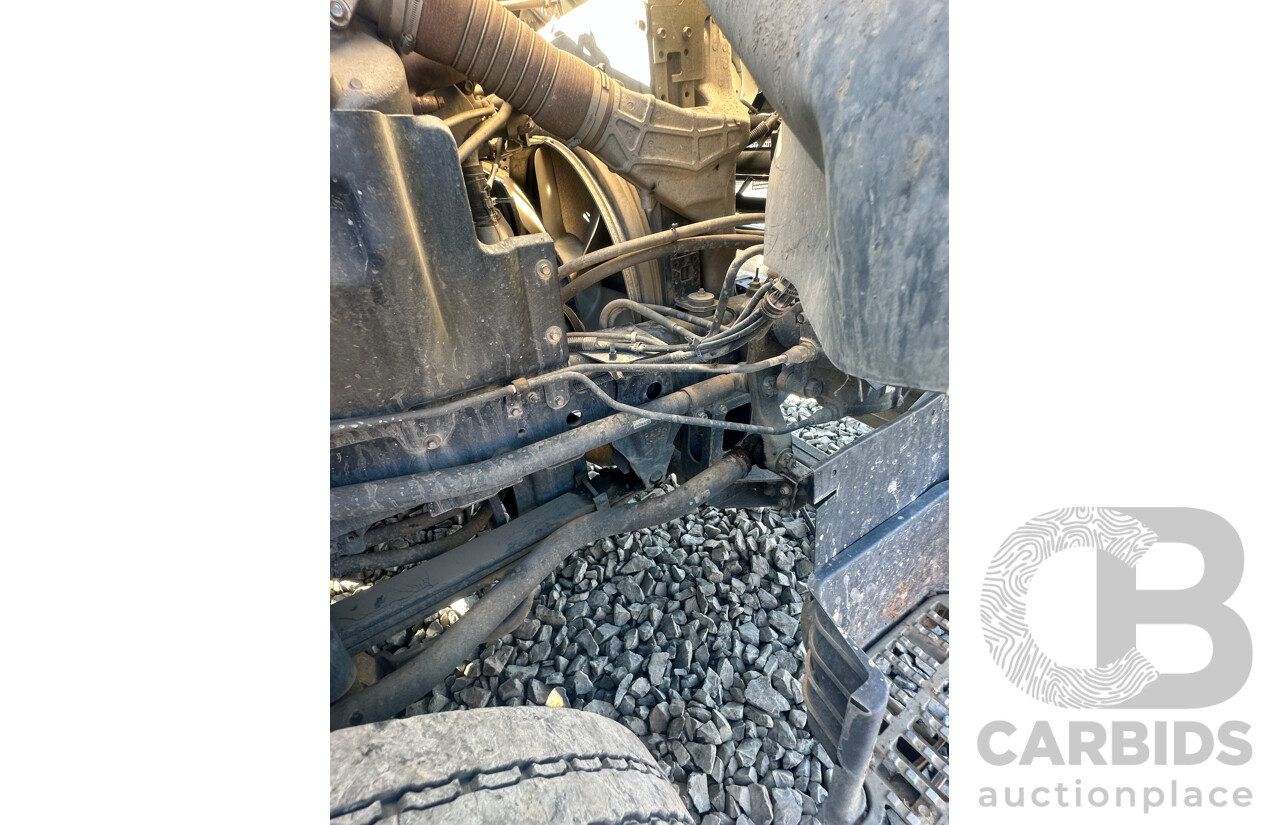

SUSPENSION
Front:
- Single stage alloy steel taper-leaf springs.
- Double acting hydraulic shock absorbers fitted to both axles. Stabiliser bar
fitted to 1st front axle. - Load sharing front suspension equalisers with shock absorbers.

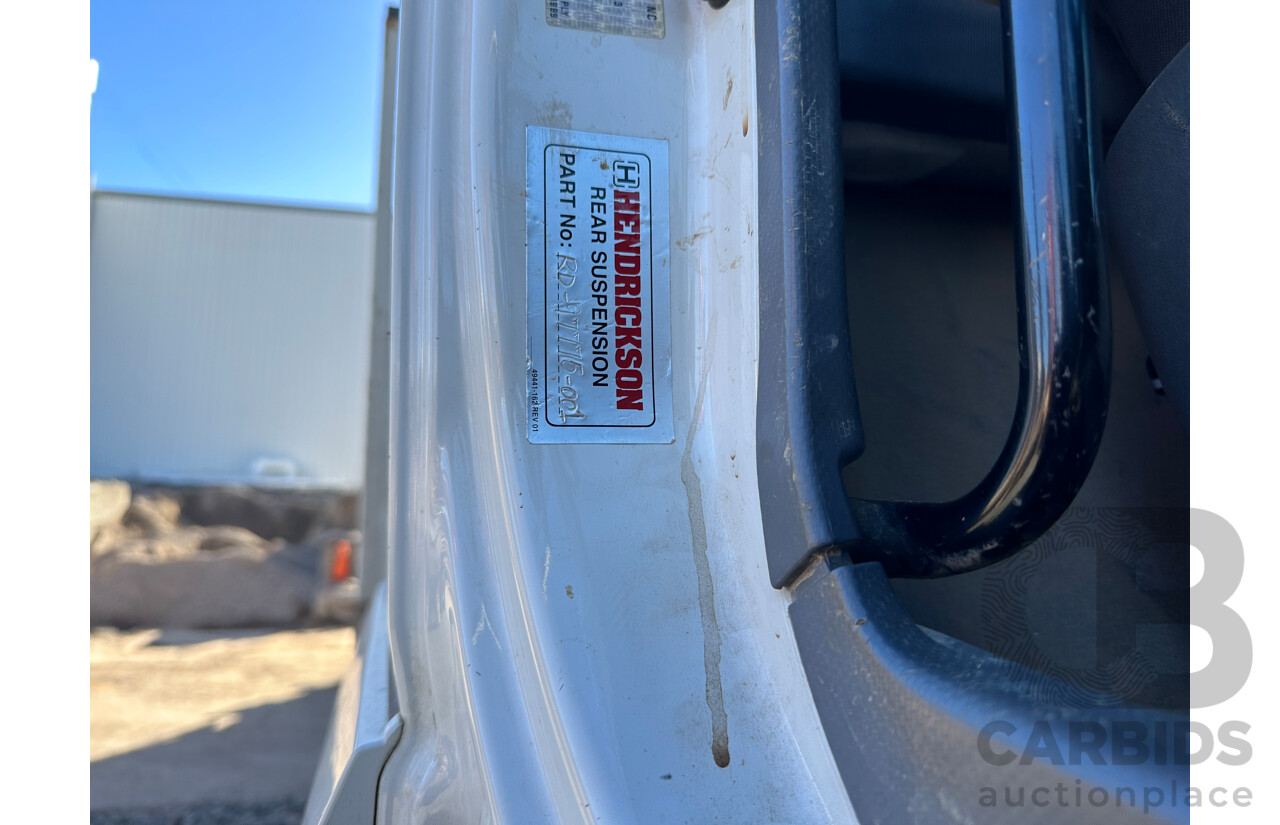

Rear:
Tandem Axle:
- Hendrickson HAS461 airbag, 20,865 kg capacity at ground.
- Outboard mounted double acting shock absorbers.
Tag Axle:
- Hendrickson HLM-2 series airbag, 10,000 kg capacity at ground.
- Automatic raise and lower system.
- Inboard mounted single acting shock absorbers
FYX 350-350 - ARK1406 01/21CHASSIS FRAME
- Cold rivetted ladder frame. HT54OA high tensile weldable steel
sidemembers. - Frame dimensions:
- Side rail (mm): 285 x 85 x 7.0
- Rear frame width (mm): 850
FUEL TANK
- Frame mounted 400L aluminium fuel tank.
- Lockable fuel cap.
ELECTRICAL SYSTEM
- 24 volt electrical system
- 90 amp alternator
- 24 volt, 5.0kW starter motor
- 2 x 115E41L (651 CCA) batteries connected in series

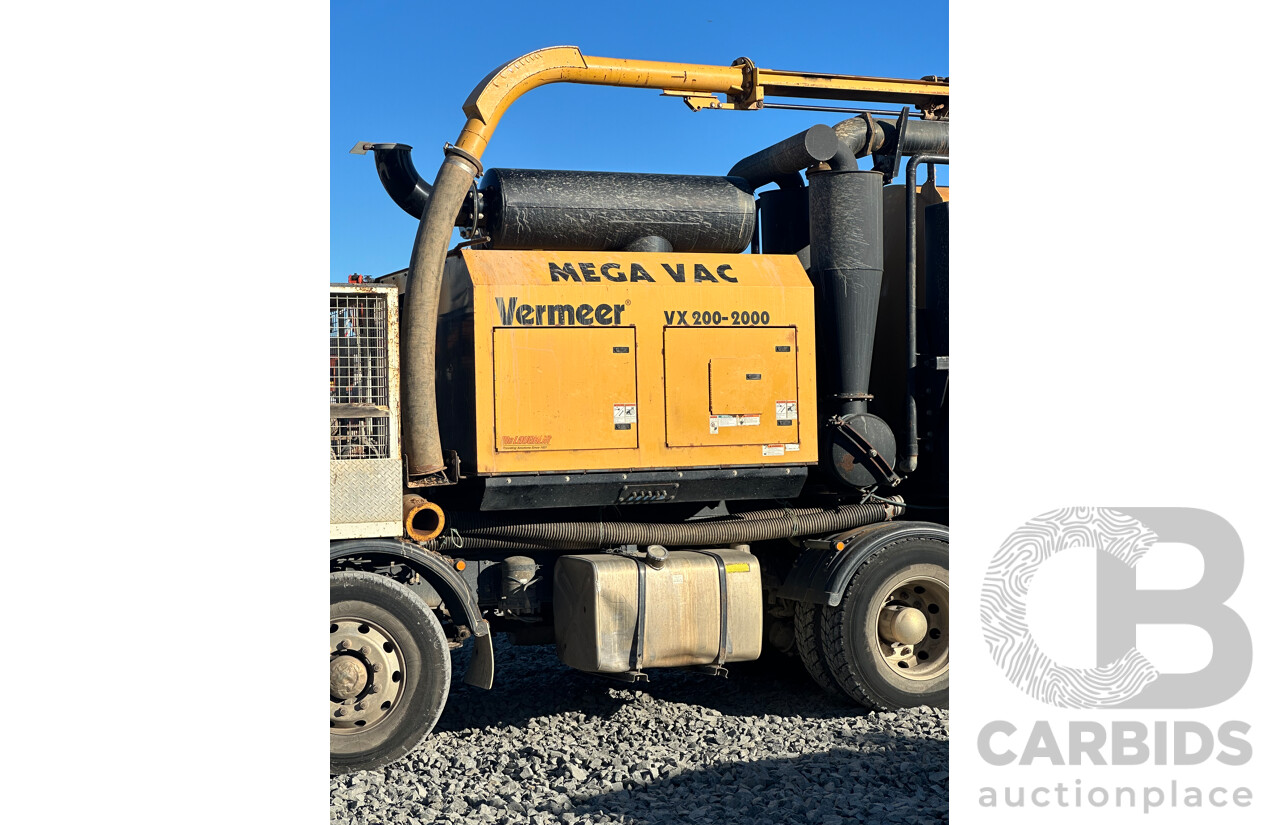

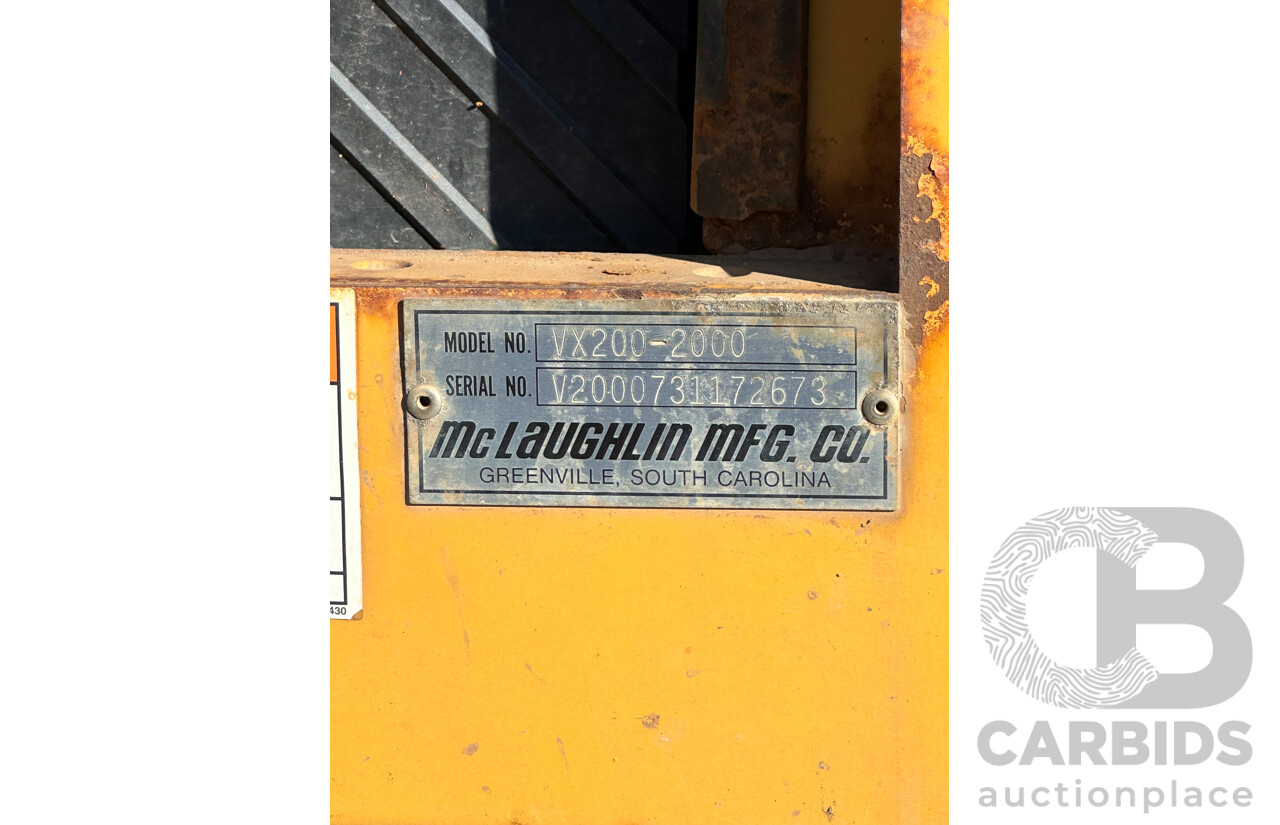

Serial number :V2000731172673
Model number:,VX200-2000

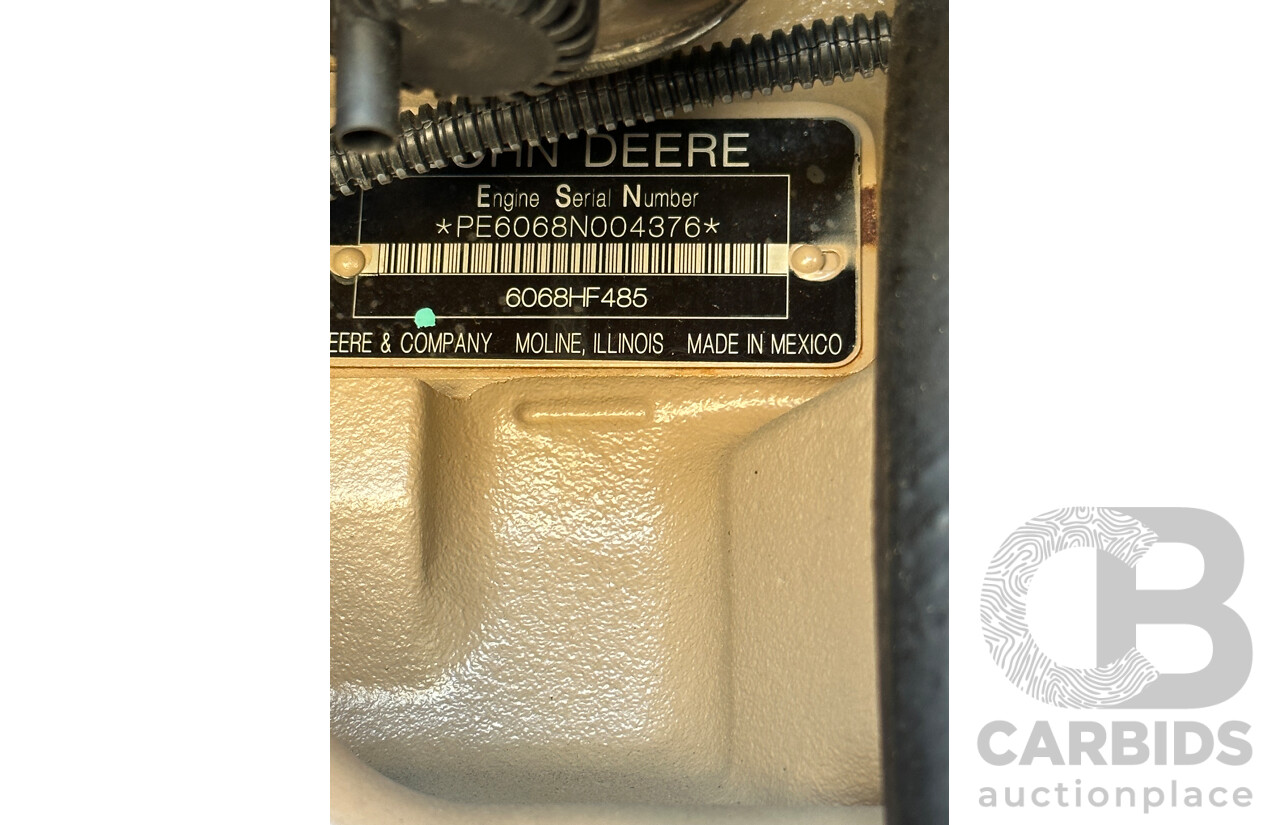

Engine number PE6068NOO4376
Approval number : 6068HF485
Hours: 1821 hours (This was current time when picture was taken )

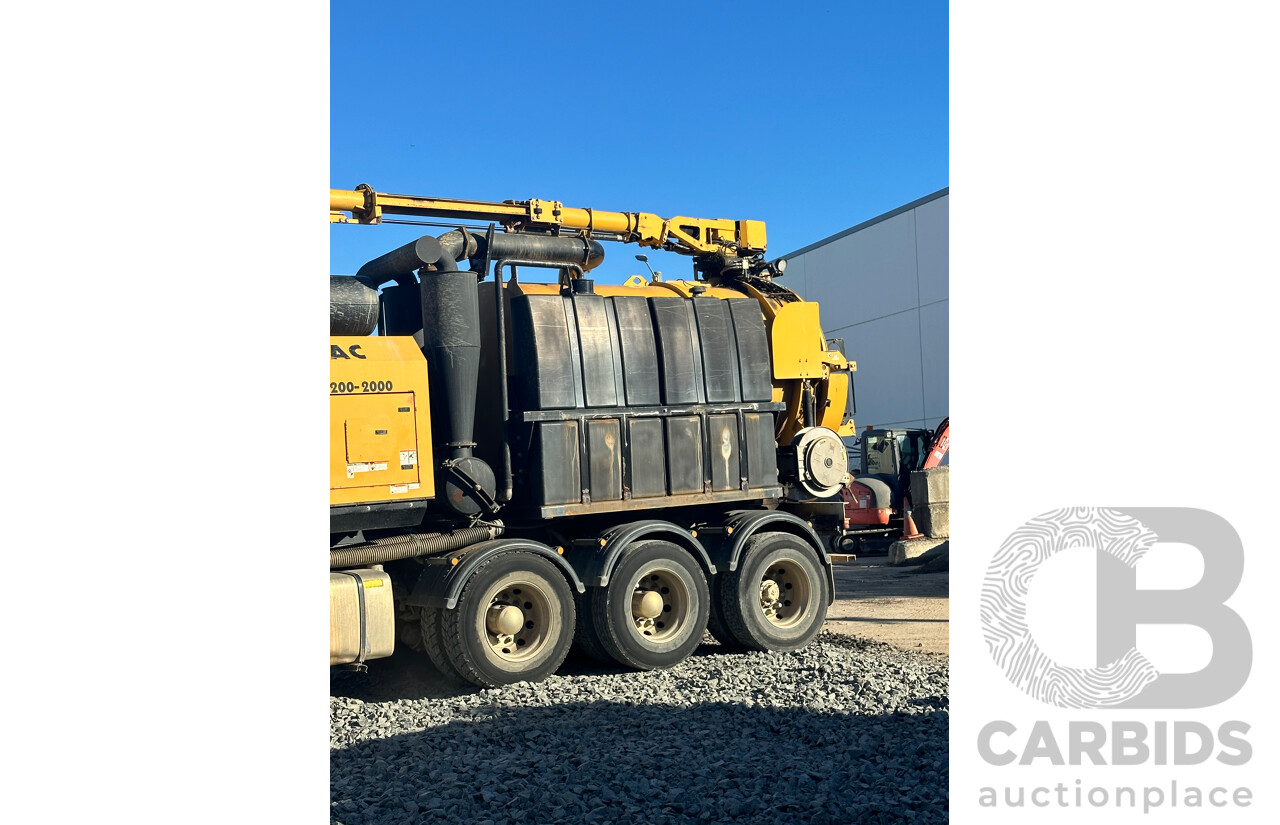

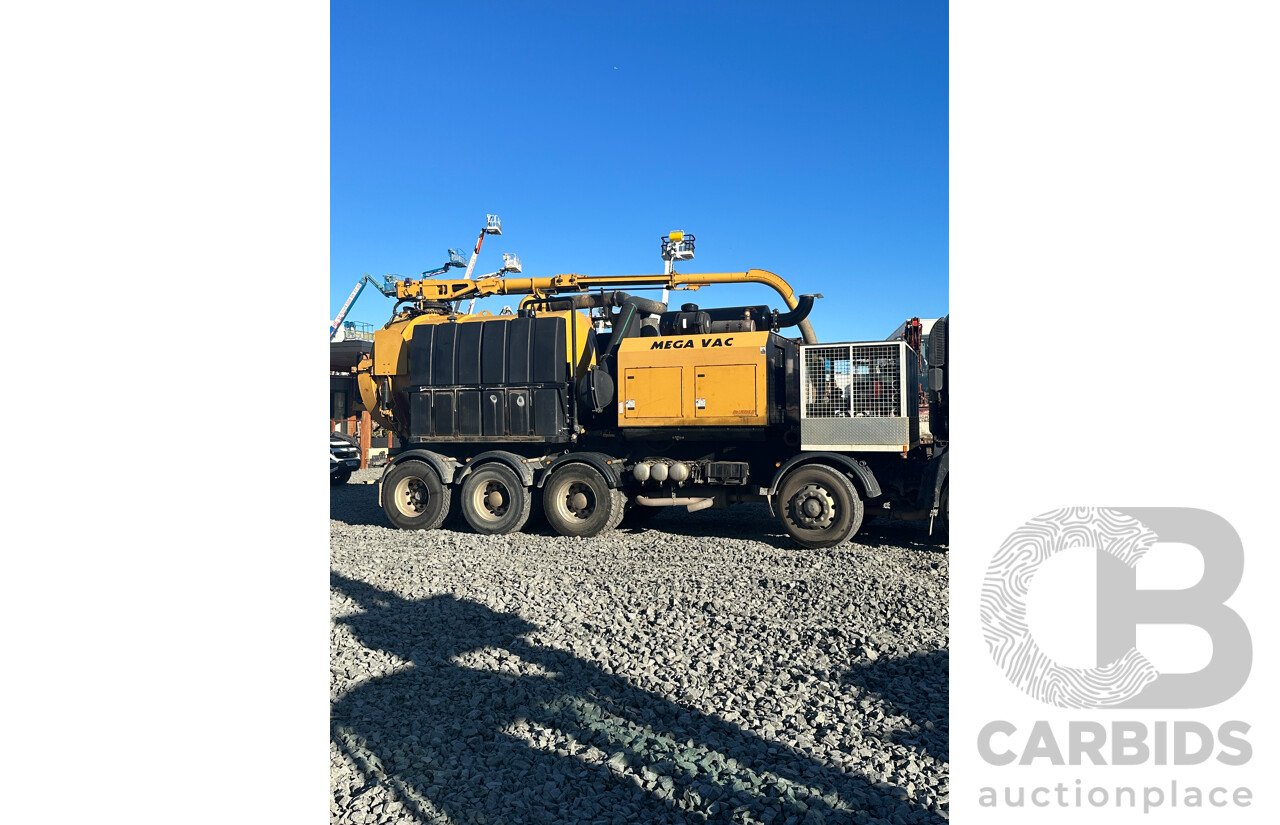

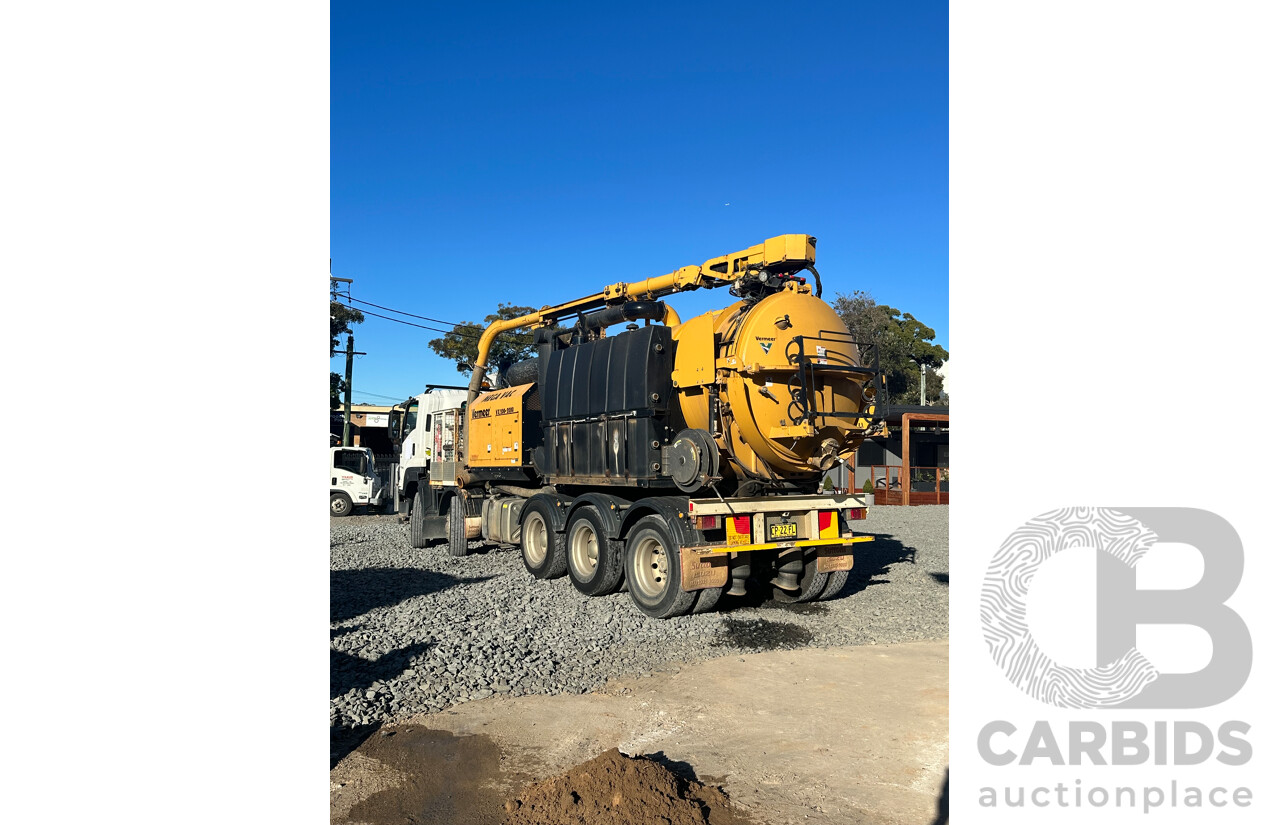

The MEGA VX200 is a truck mounted vacuum excavator that features a 200-horsepower (149 kW) John Deere Tier 3 engine, a 3-stage cyclonic filtration system and spoil tank capacities ranging from 1,200 to 3,000 gallons (4,542.5 to 11,356.2 L) with the standard option of 800 gallons (3,028.3 L) of fresh water. It has a 6-inch (15.2 cm) hose diameter and a 3,500 “free air” cfm (99.1 m3/min) blower capable of 18 inches of mercury. The tank, power pack and water system all have a modular design — versatility that allows a contractor to mount the unit on either a new or a re-purposed truck chassis.
The MEGA VX200 6-inch series was designed after listening to customers who said they wanted a vacuum excavator for their potholing jobs and fluid management needs that fills a gap between smaller trailer-mounted vacuum excavators and the largest truck-mounted units.
3-STAGE CYCLONIC FILTRATIONMcLaughlin uses TRUE three-stage filtration system that allows for both wet and dry vacuum excavation. The dual 17? x 55? cyclones are custom designed for the VX200 with high efficiency dual vertical stems. After material passes through the tank, the air moves to the Cylonic Filtration System where dust-size particles are cyclonically removed. Then the pre-filtered clean air stream passes through a removable, washable micron-poly filter before reaching the blower.
PATENTED “CAM-OVER” HYDRAULIC REAR DOOR
Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable
Cam-Over design has no in-tank moving parts, so all maintenance is external.
Provides a 360-degree positive seal, even under reverse pressure without additional clamping requirements. The highly reliable
Cam-Over design has no in-tank moving parts, so all maintenance is external.
FULL-FUNCTION REMOTE CONTROL
The Magnetek Telemotive Mini-MBT radio remote controls all machine functions and delivers vital machine information through its display. The remote easily straps to operator, and features an emergency stop for safety.
The Magnetek Telemotive Mini-MBT radio remote controls all machine functions and delivers vital machine information through its display. The remote easily straps to operator, and features an emergency stop for safety.
LARGER HOSE DIAMETER
Featuring a 6-inch (15.2 cm) hose diameter with a 3,500 “free air” cfm (99.1 m3/min) blower and 18 inches of hg (.6 bar) to get more work done and take on bigger jobs.
Featuring a 6-inch (15.2 cm) hose diameter with a 3,500 “free air” cfm (99.1 m3/min) blower and 18 inches of hg (.6 bar) to get more work done and take on bigger jobs.
VACUUM NEUTRAL MODE
This safety feature allows the blower to suck “free air” vs. having the hose live at all times. It also allows the engine and blower to “unload” or free run when not in use – proloning blower and engine life.
This safety feature allows the blower to suck “free air” vs. having the hose live at all times. It also allows the engine and blower to “unload” or free run when not in use – proloning blower and engine life.
Hydraulic Boom
The industry-leading Hydraulic Boom offers speed, reliability and ease of operation. The telescoping design maintains hose length during boom extension and incorporates a 14? (35.6 cm) bearing with a 270-degree range of motion. The boom features a 14' (4.3 m) reach capability.
CONDITION REPORT
This truck has been used on the m5 tunnel to do some excavation work in is one of the bigger size vehicles in its class .
The condition is good as its still a fairly new vehicle with only 83,000km on the clock, there is a little bit of dirt in the interior but relates to work this truck is used for .
Some minor scratches and marks but not many overall .
Vacuum works perfectly with its own remote

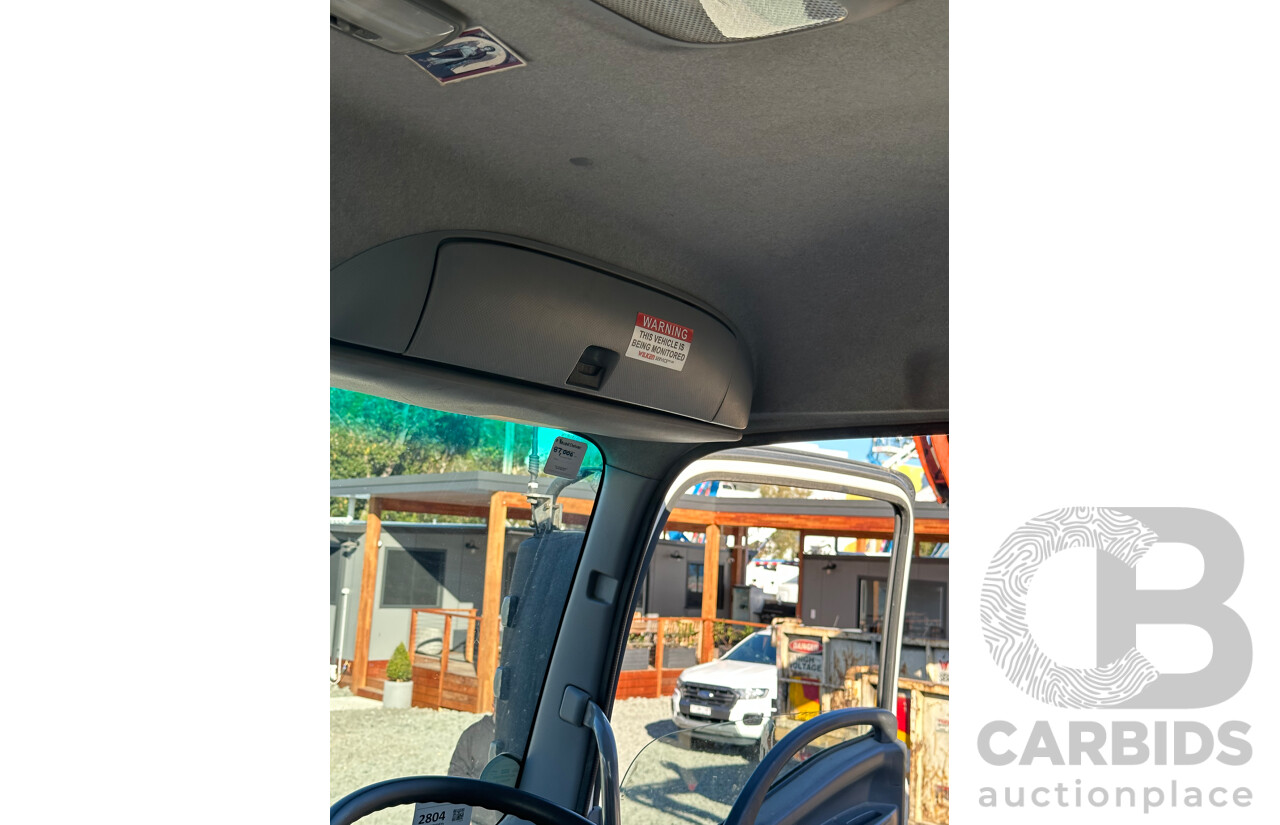

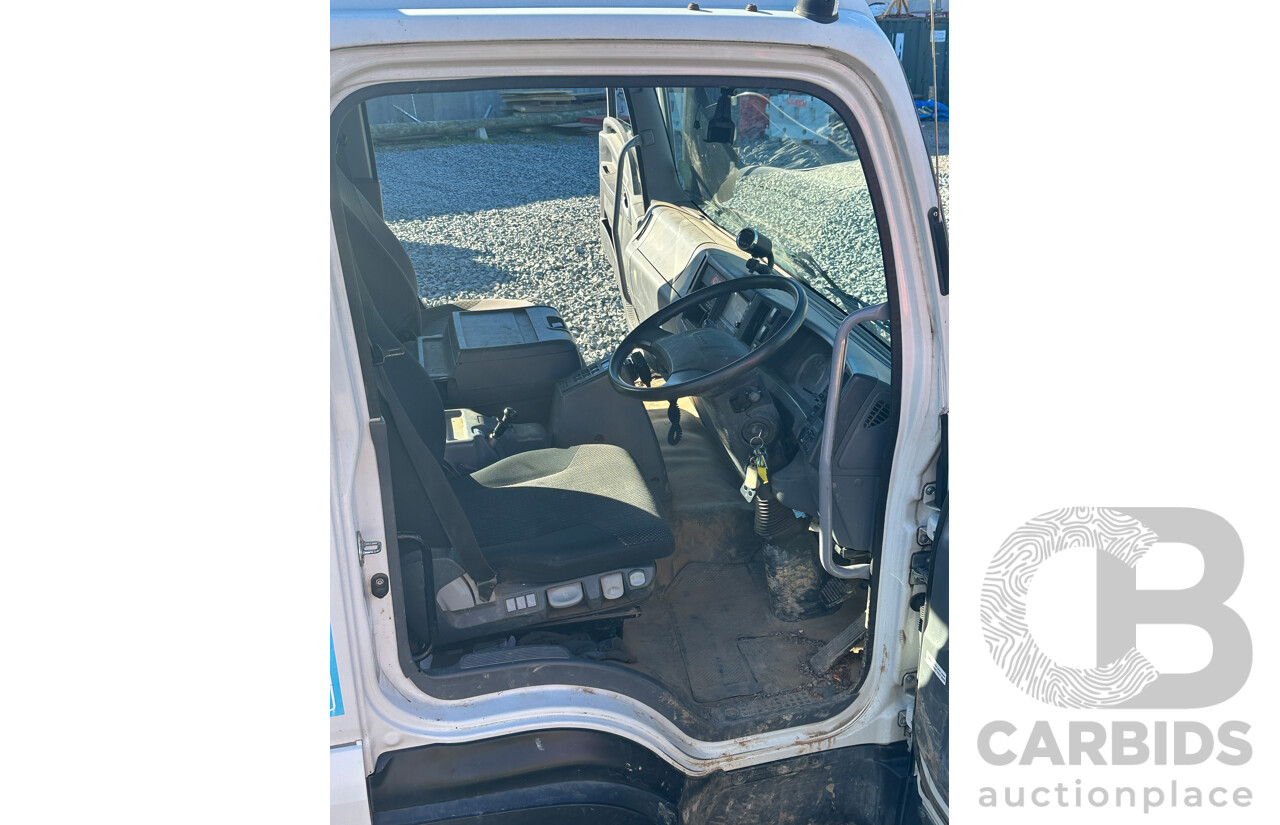

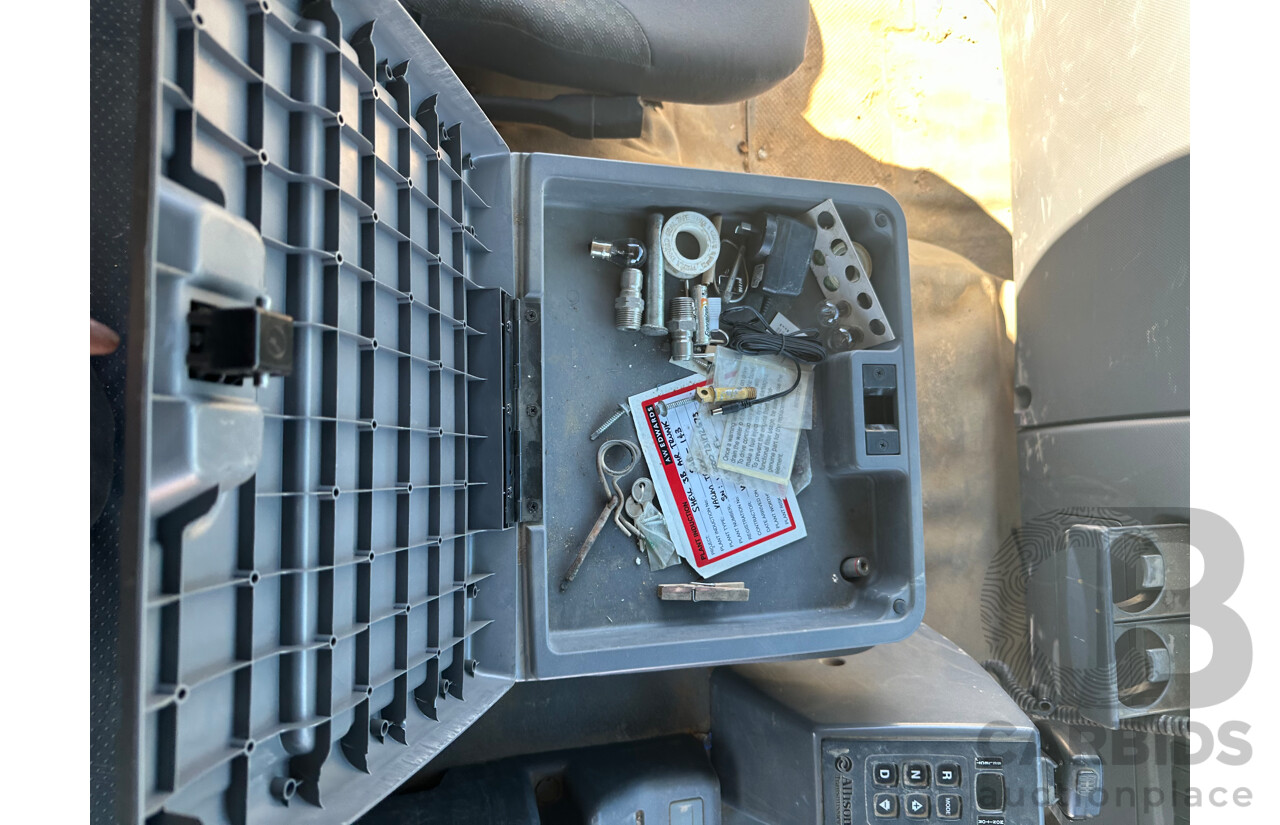

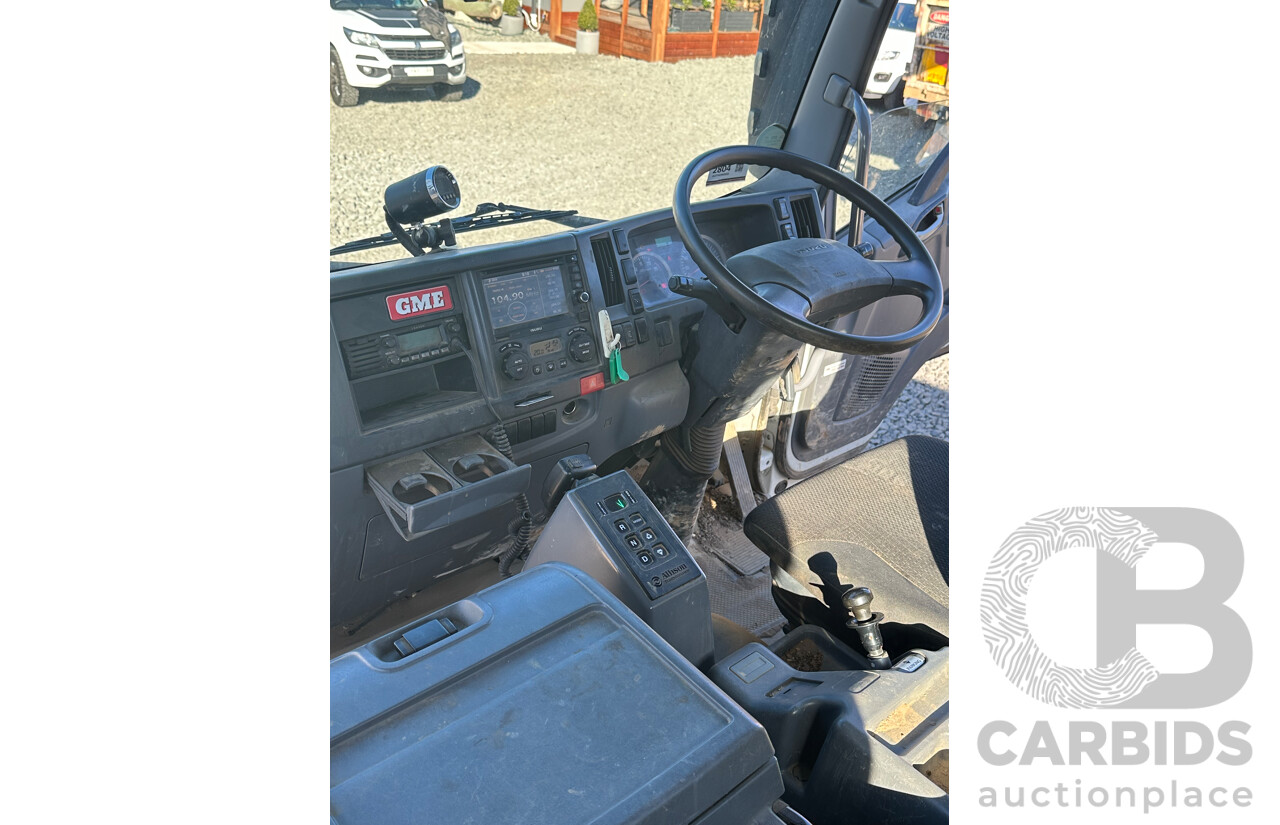

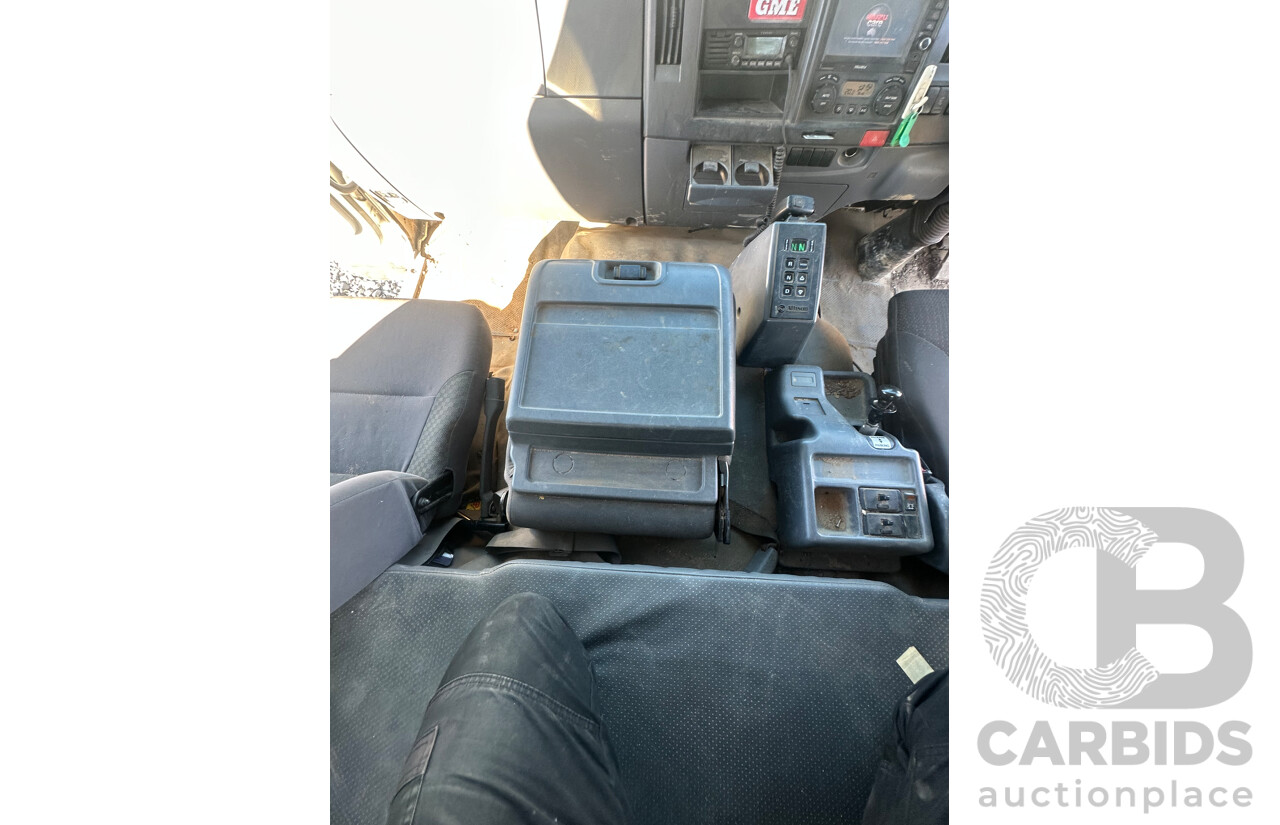

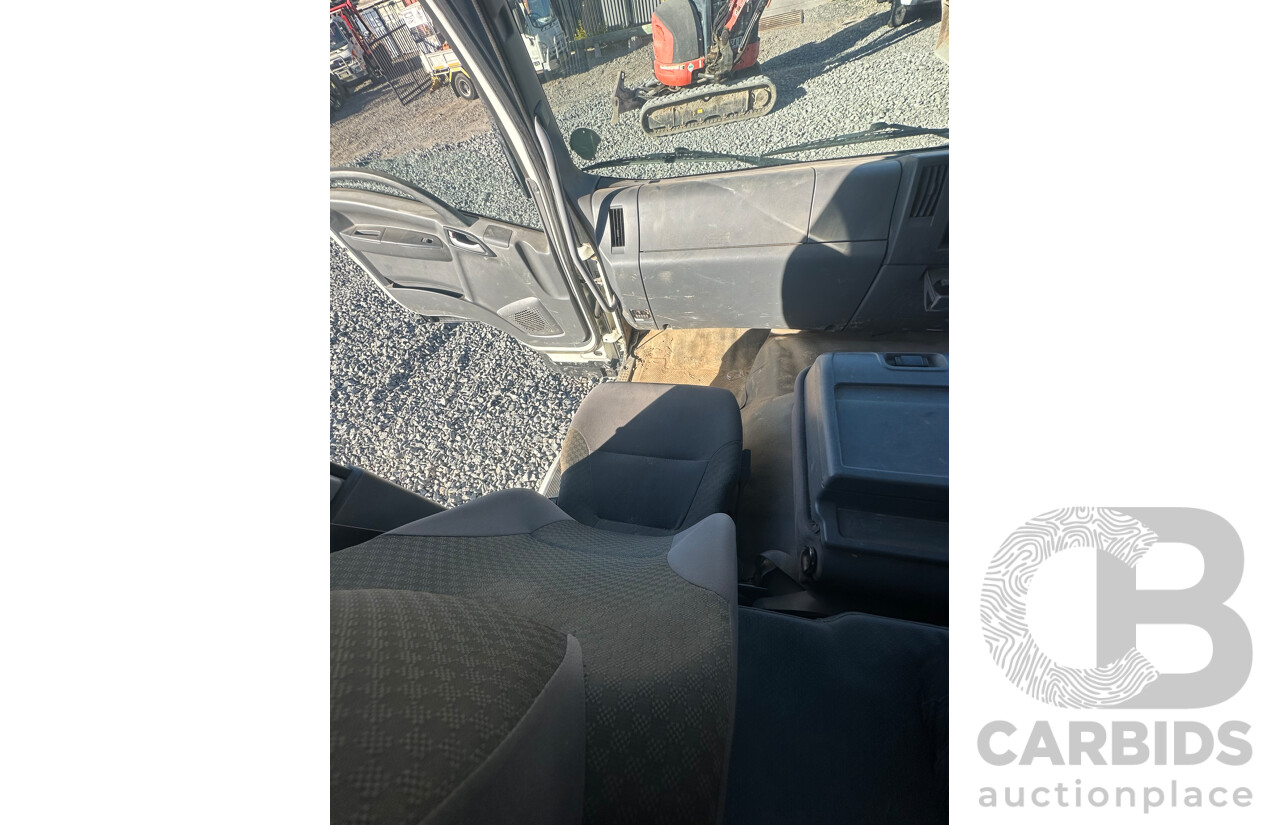

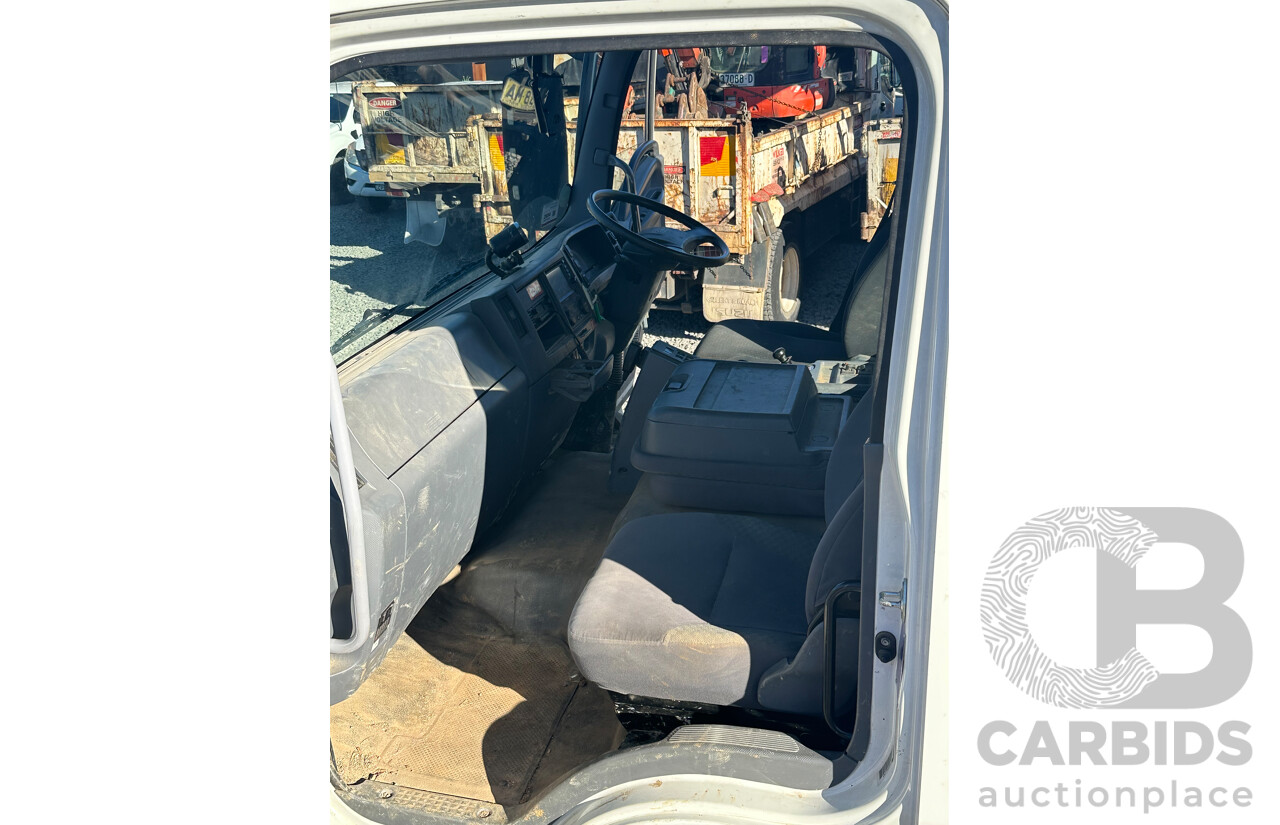

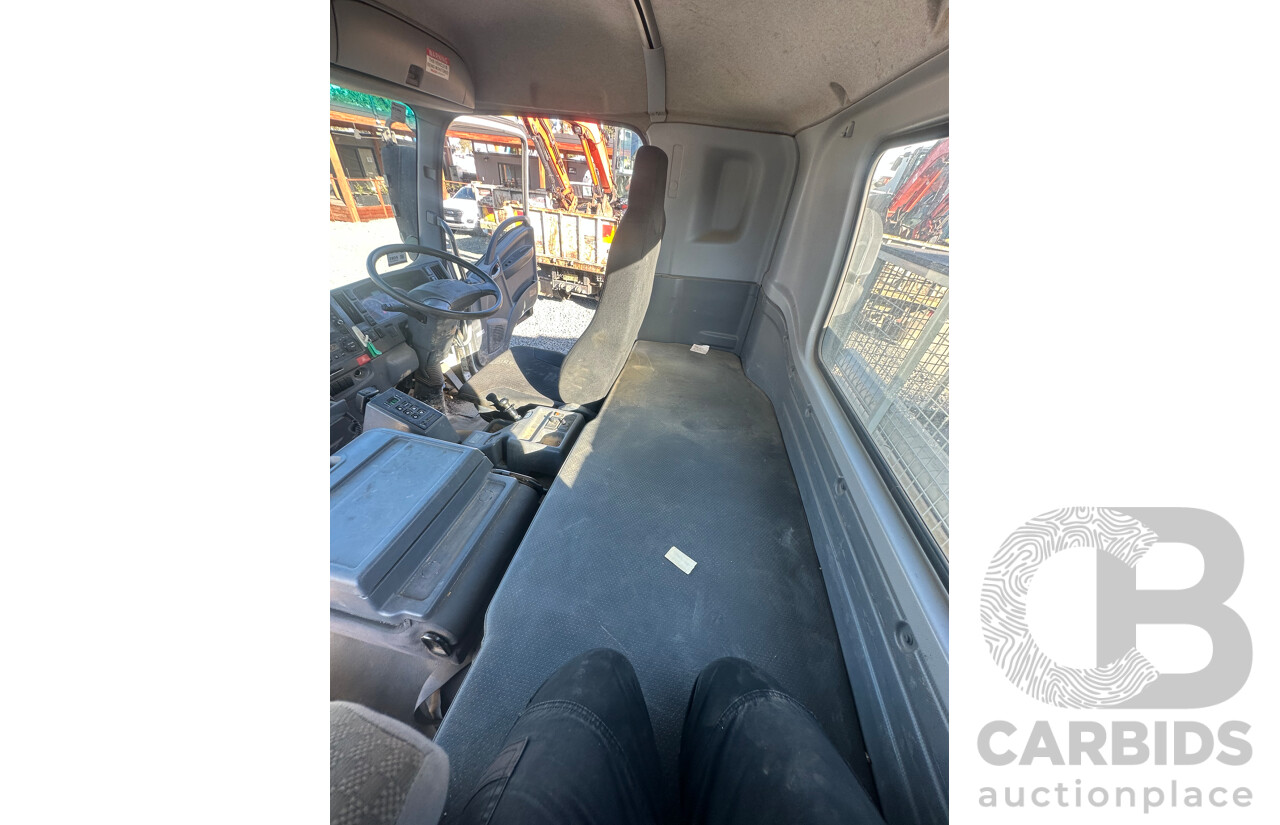

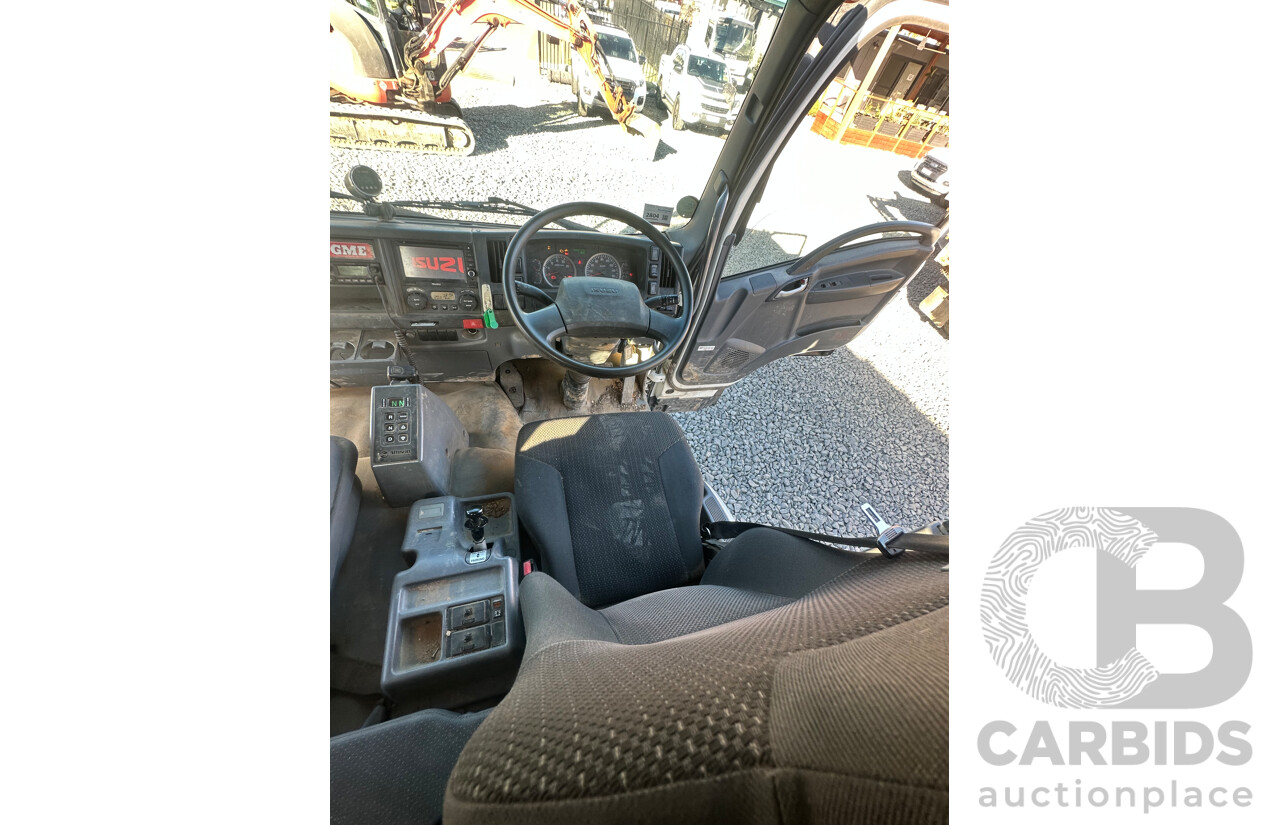

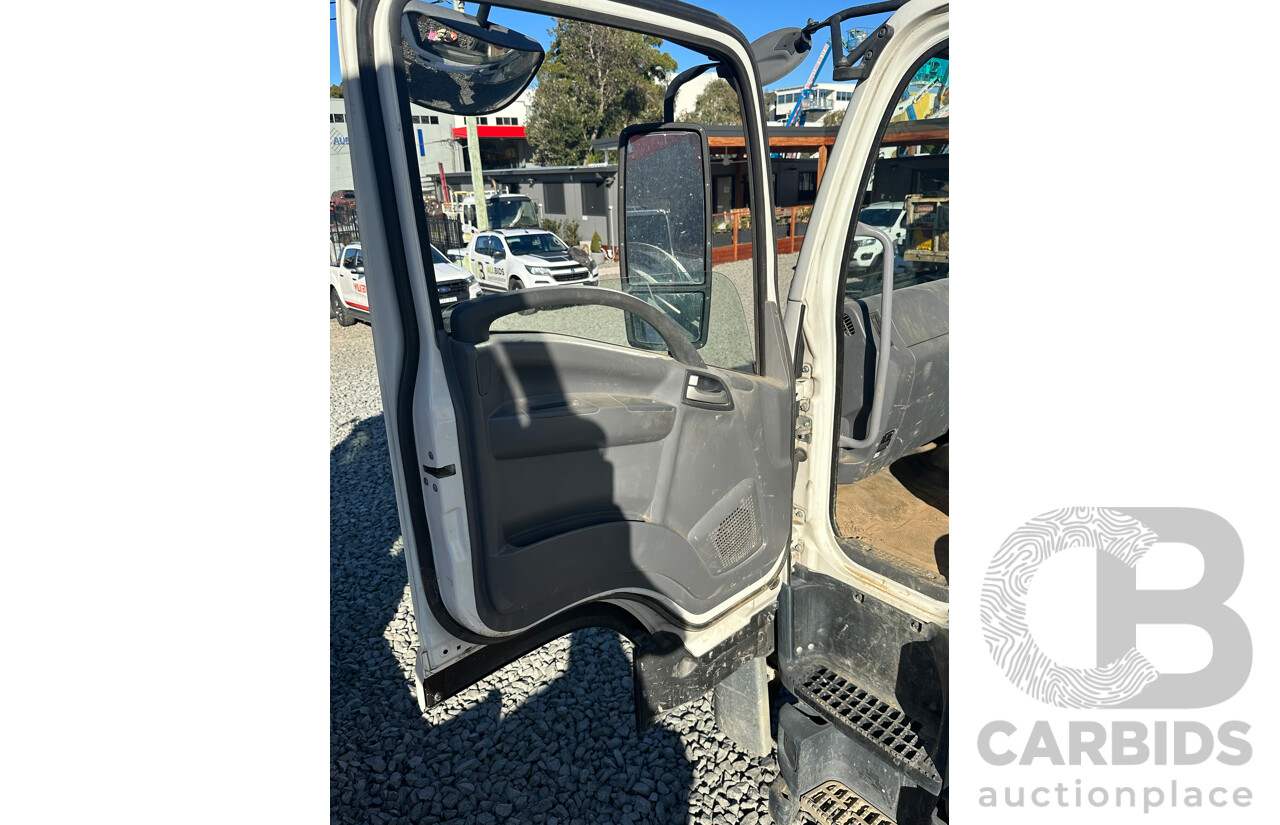

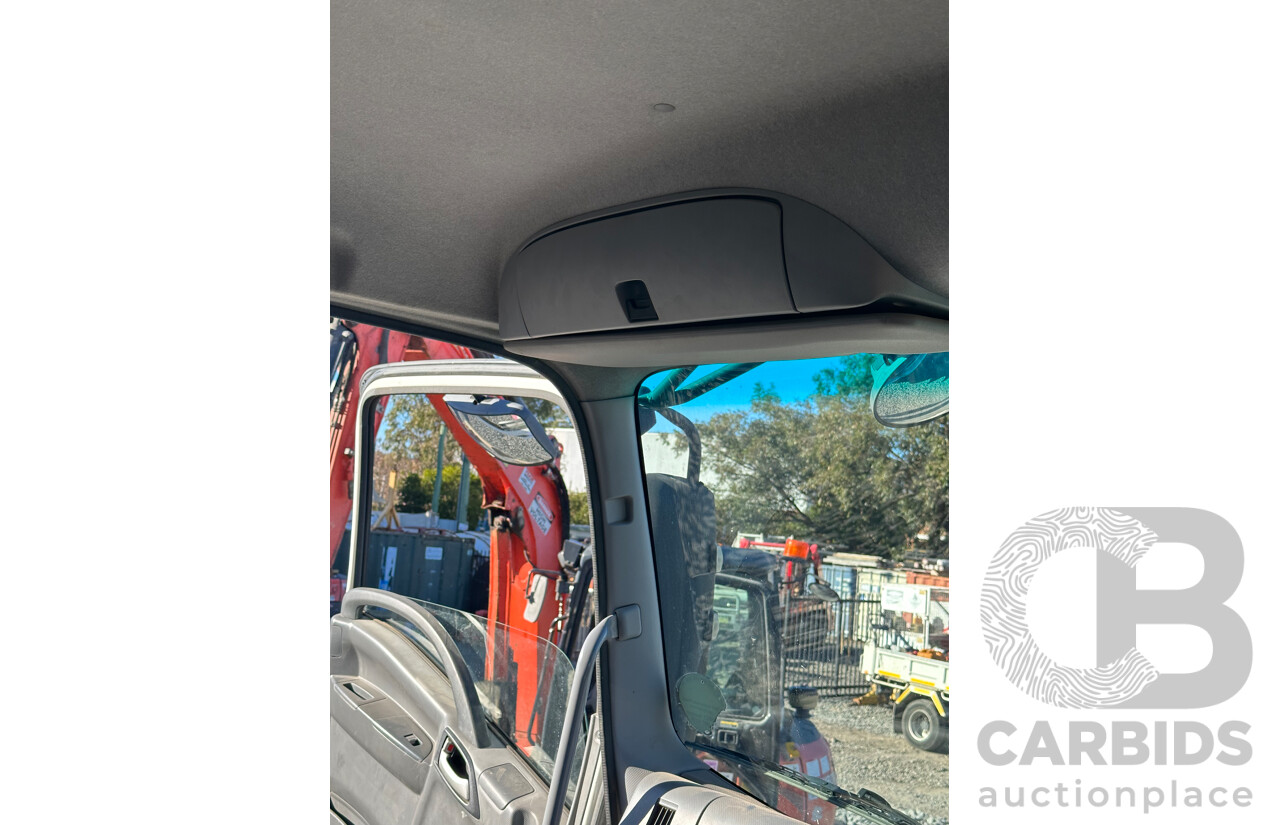

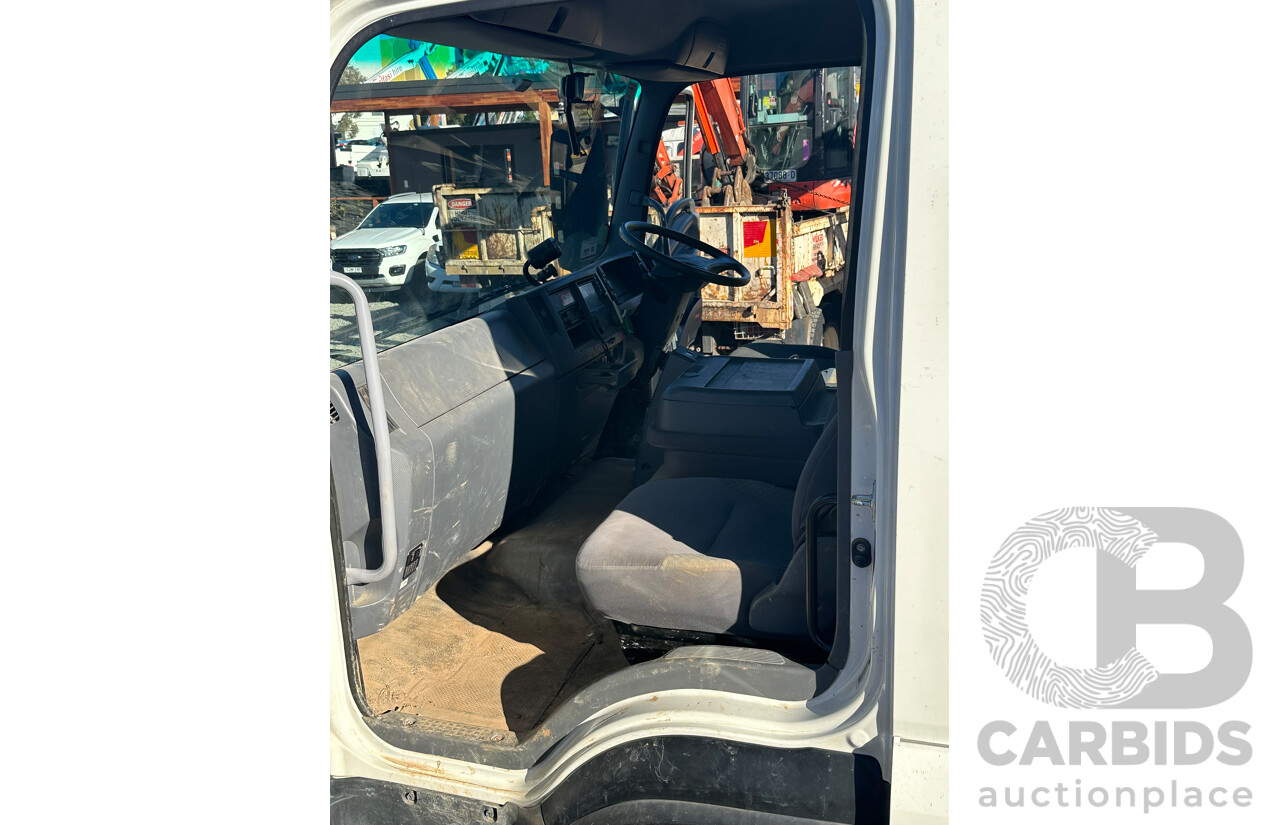

Interior
Some dirt , no torn seats

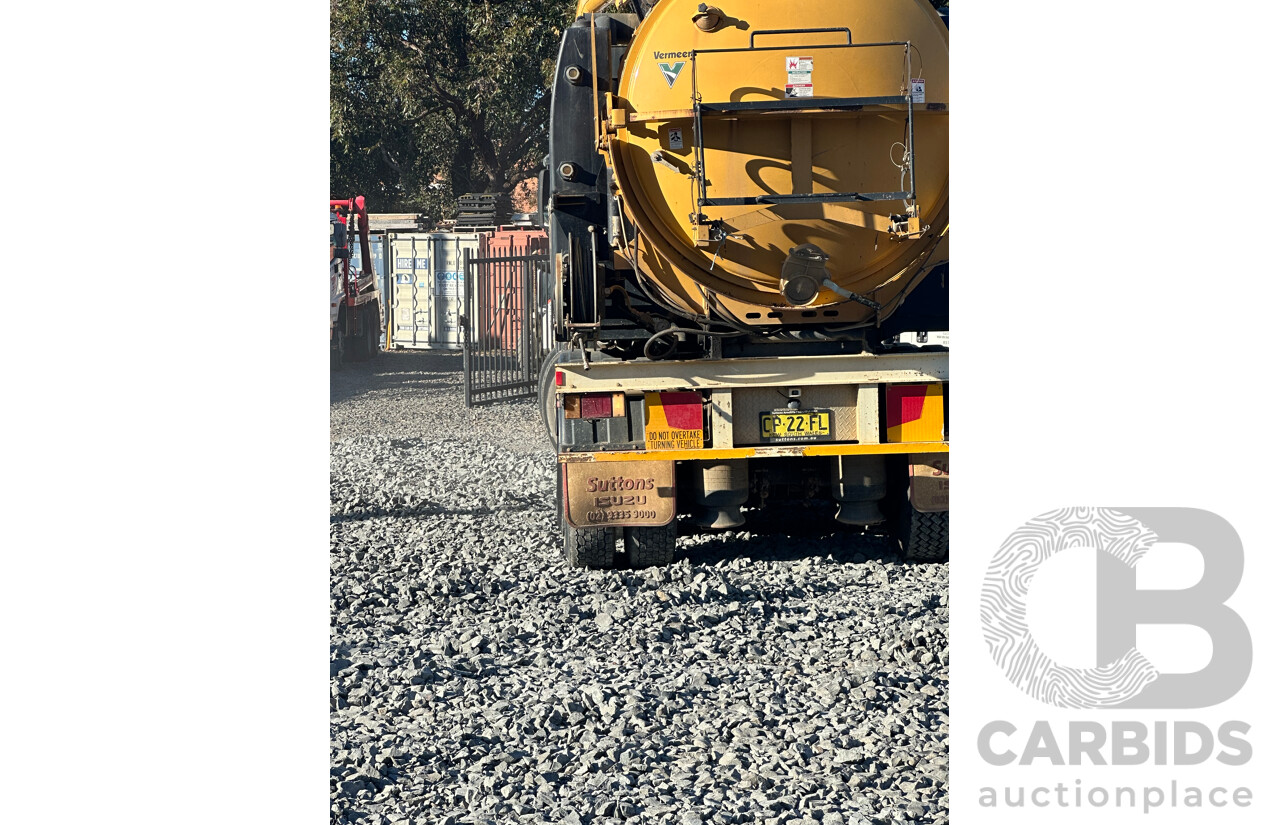

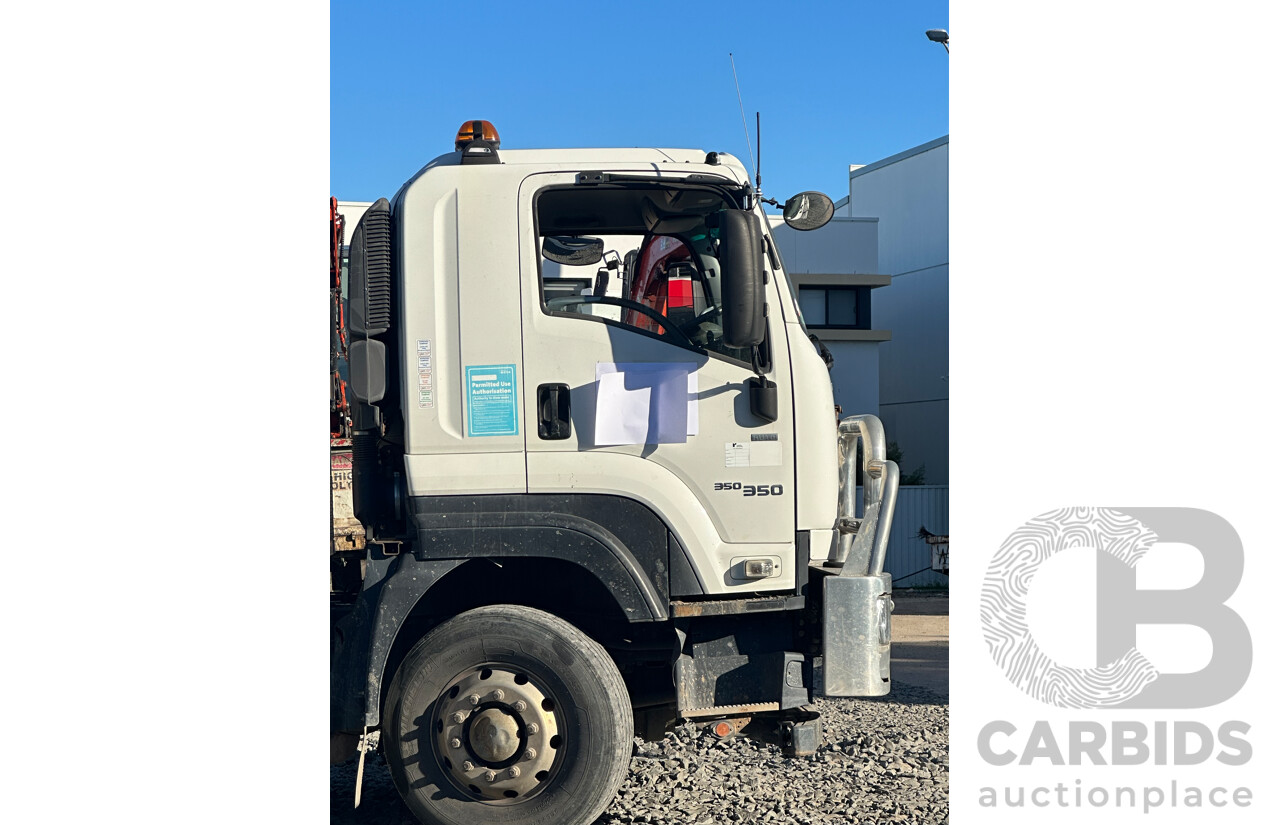

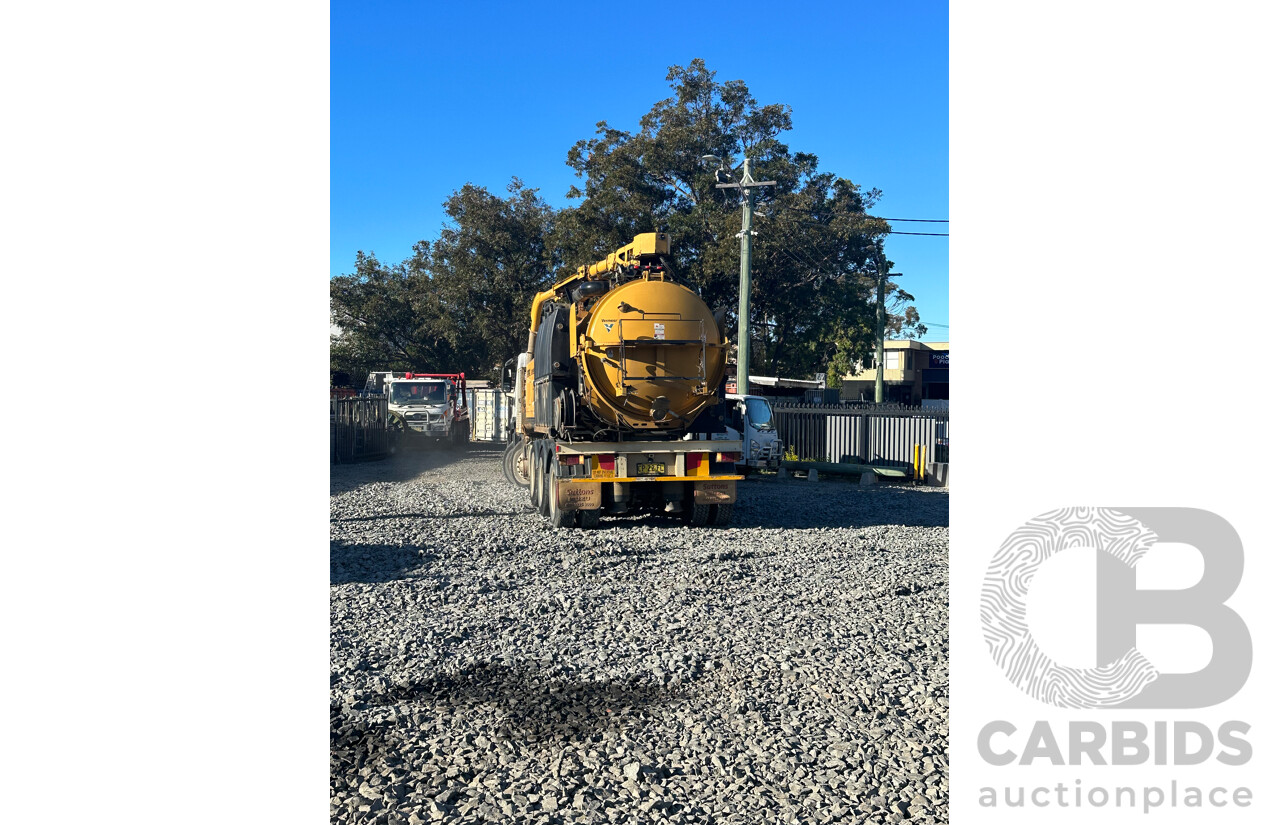

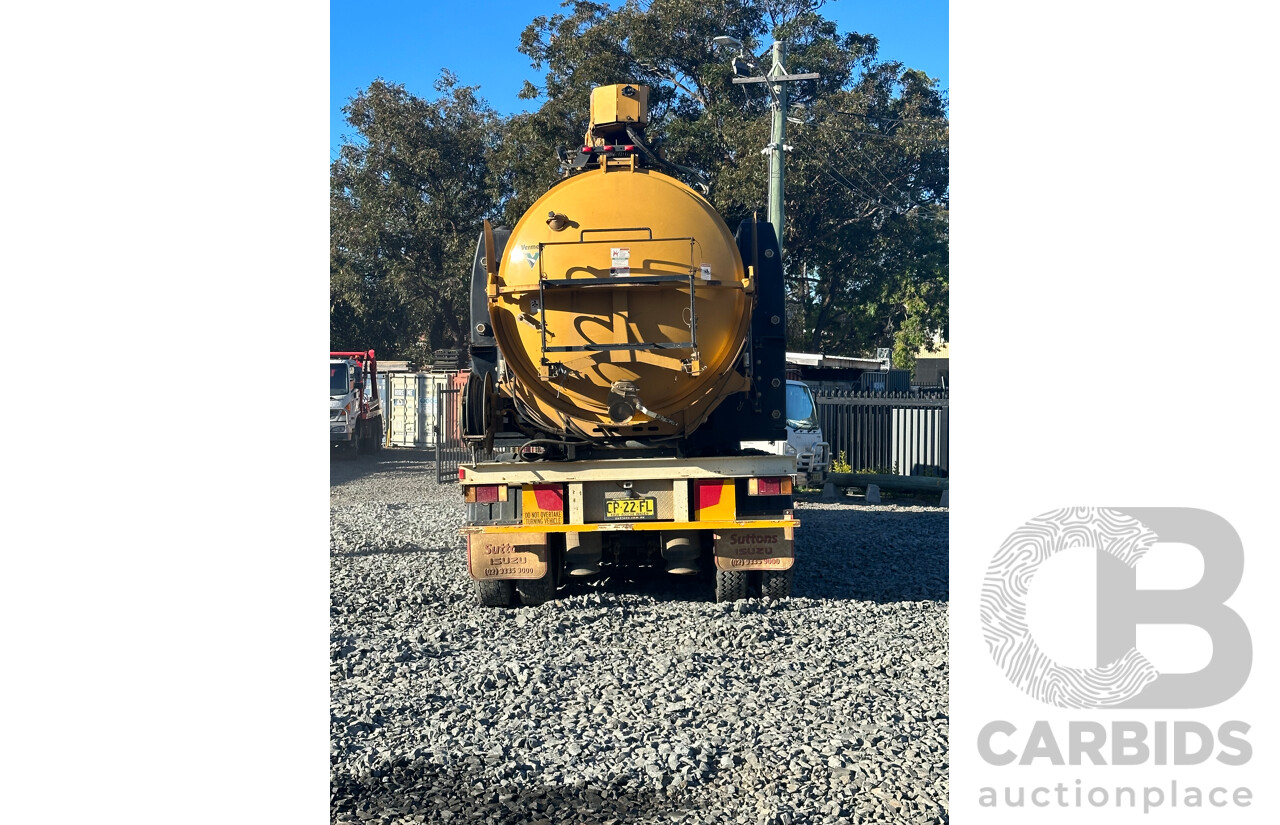

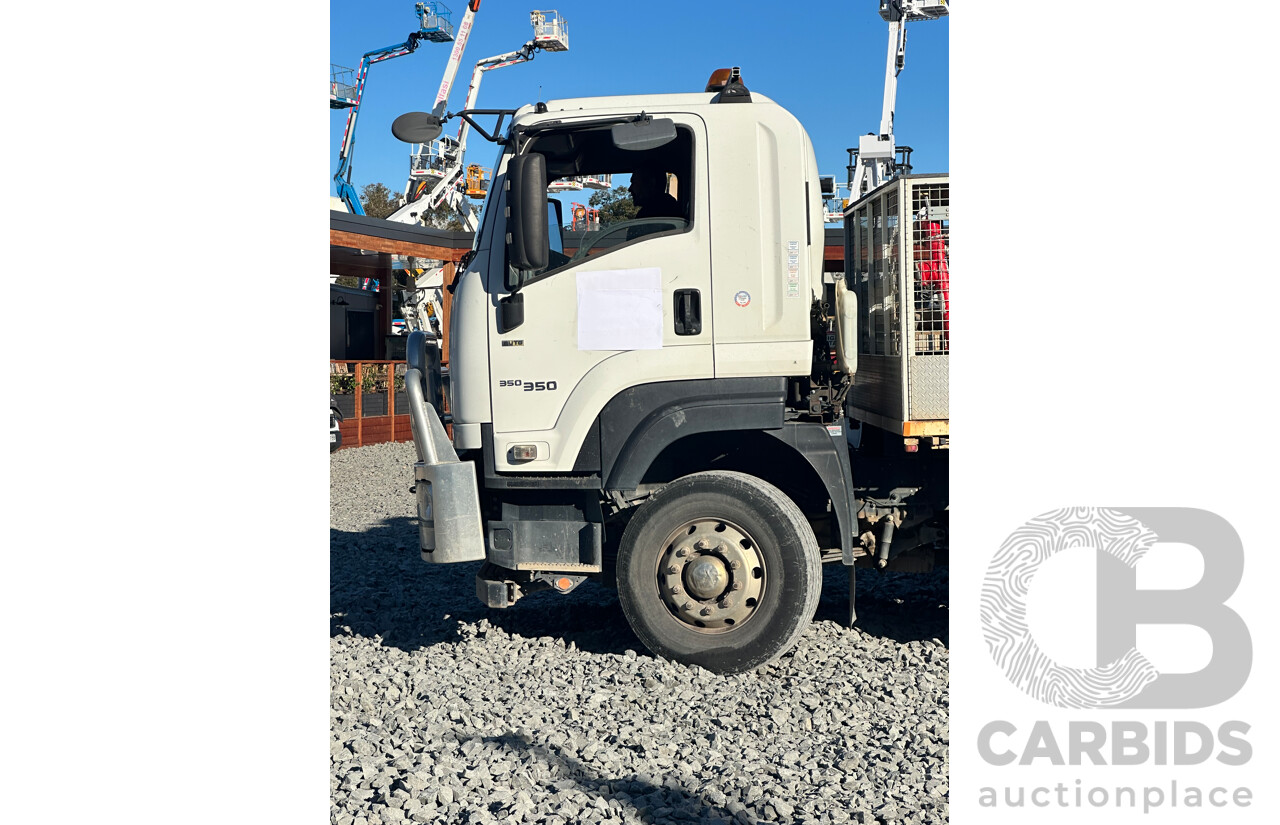

Exterior
Some scrapes and scratches from normal usage
Front Tyres
75% Tread left
Rear Tyres
75% Tread left

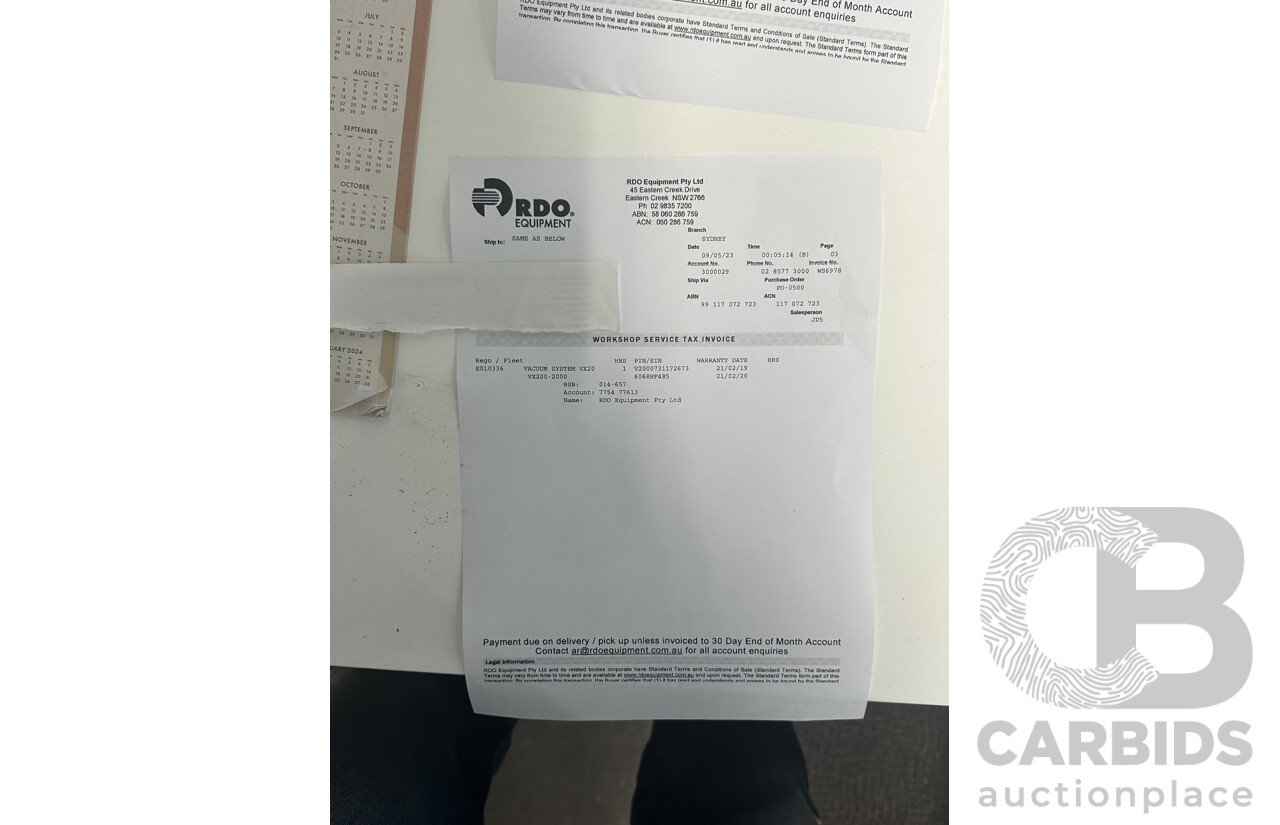

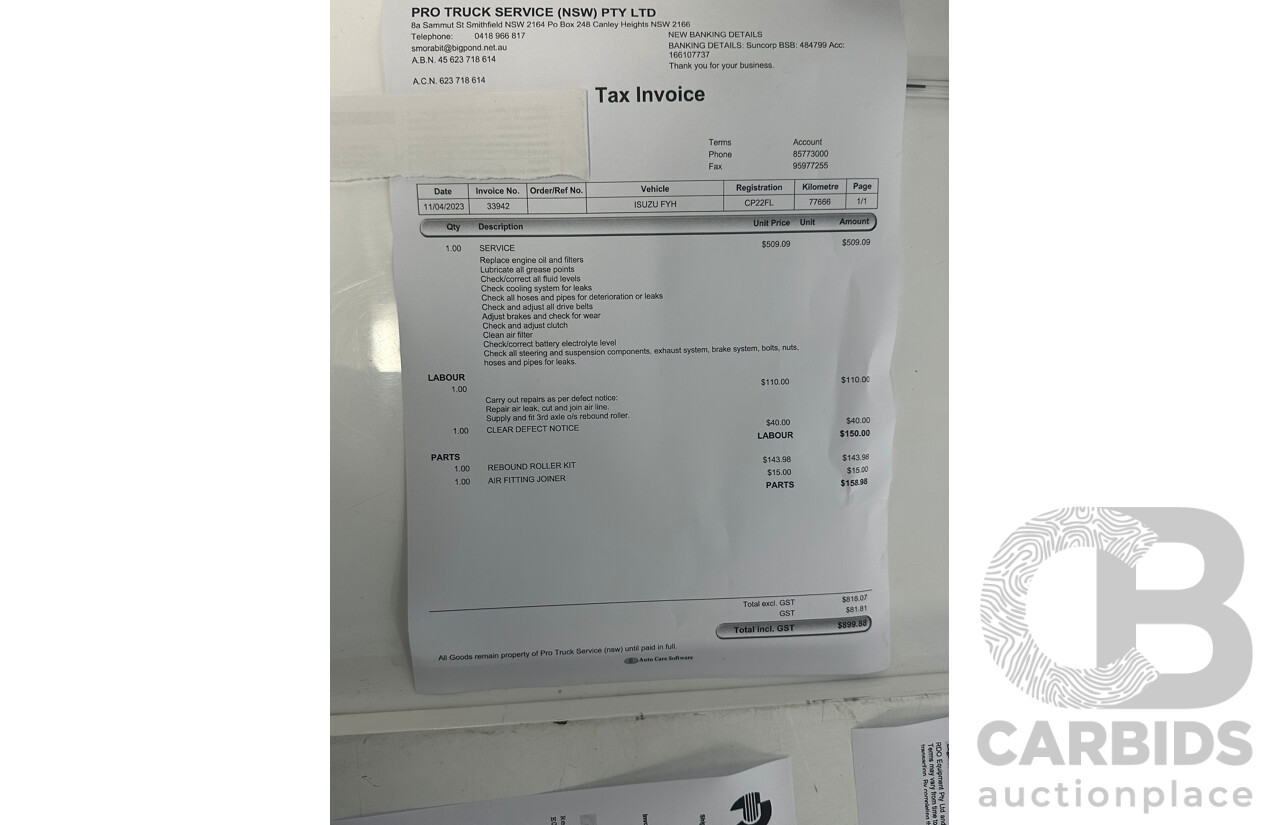

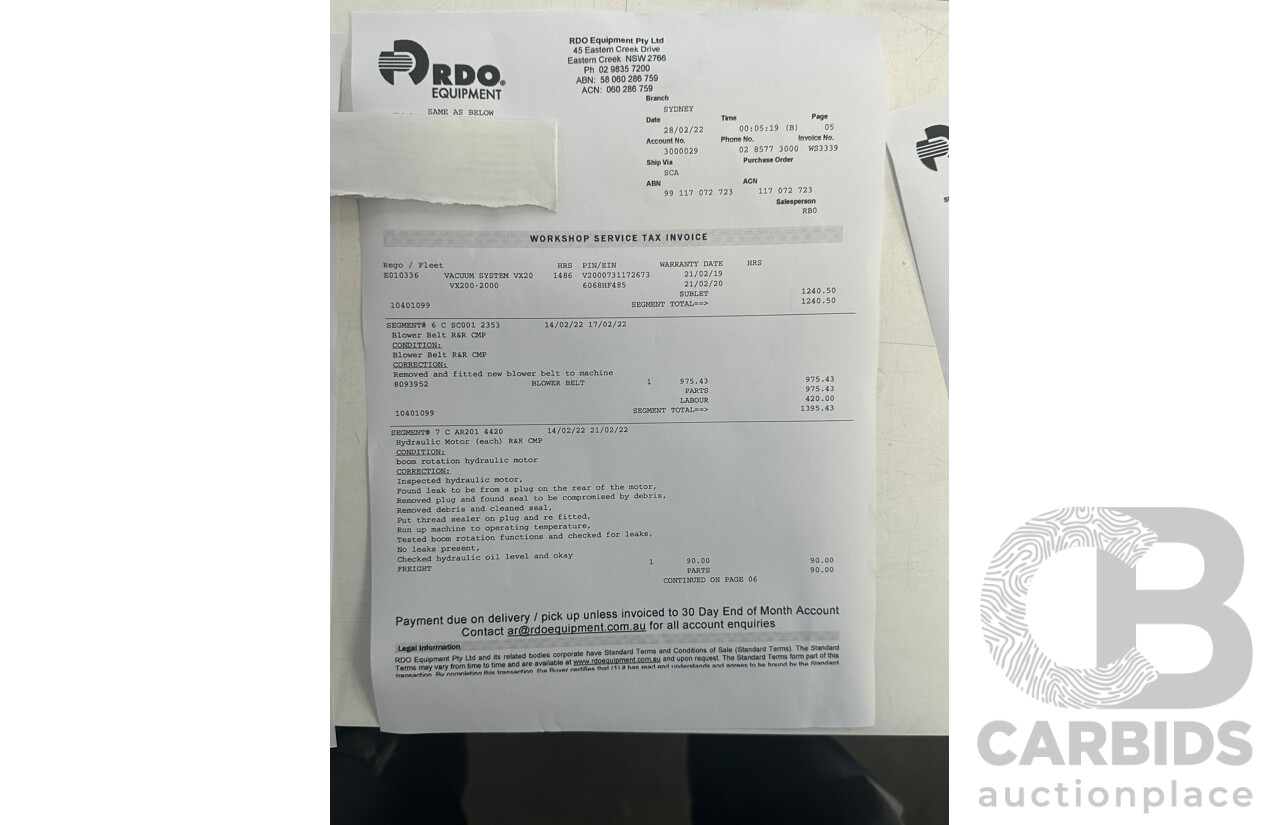

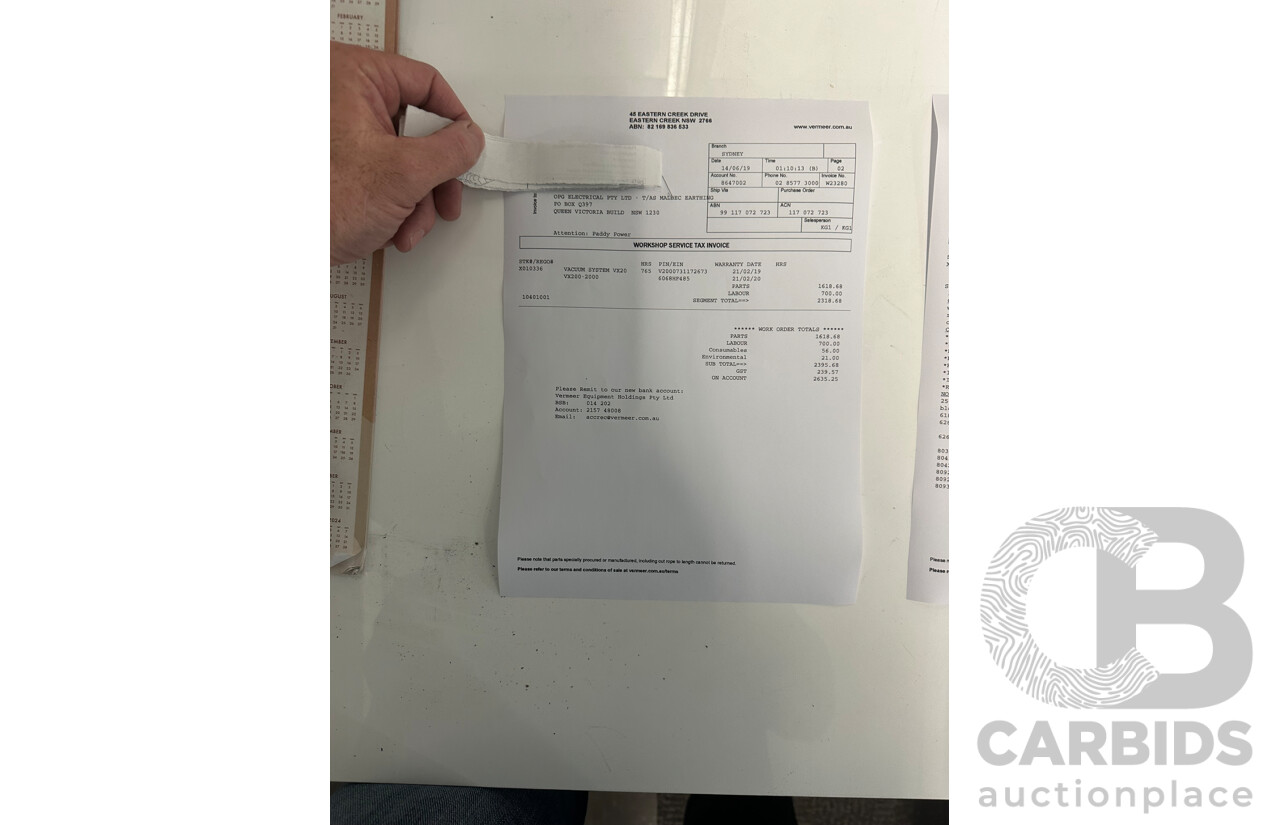

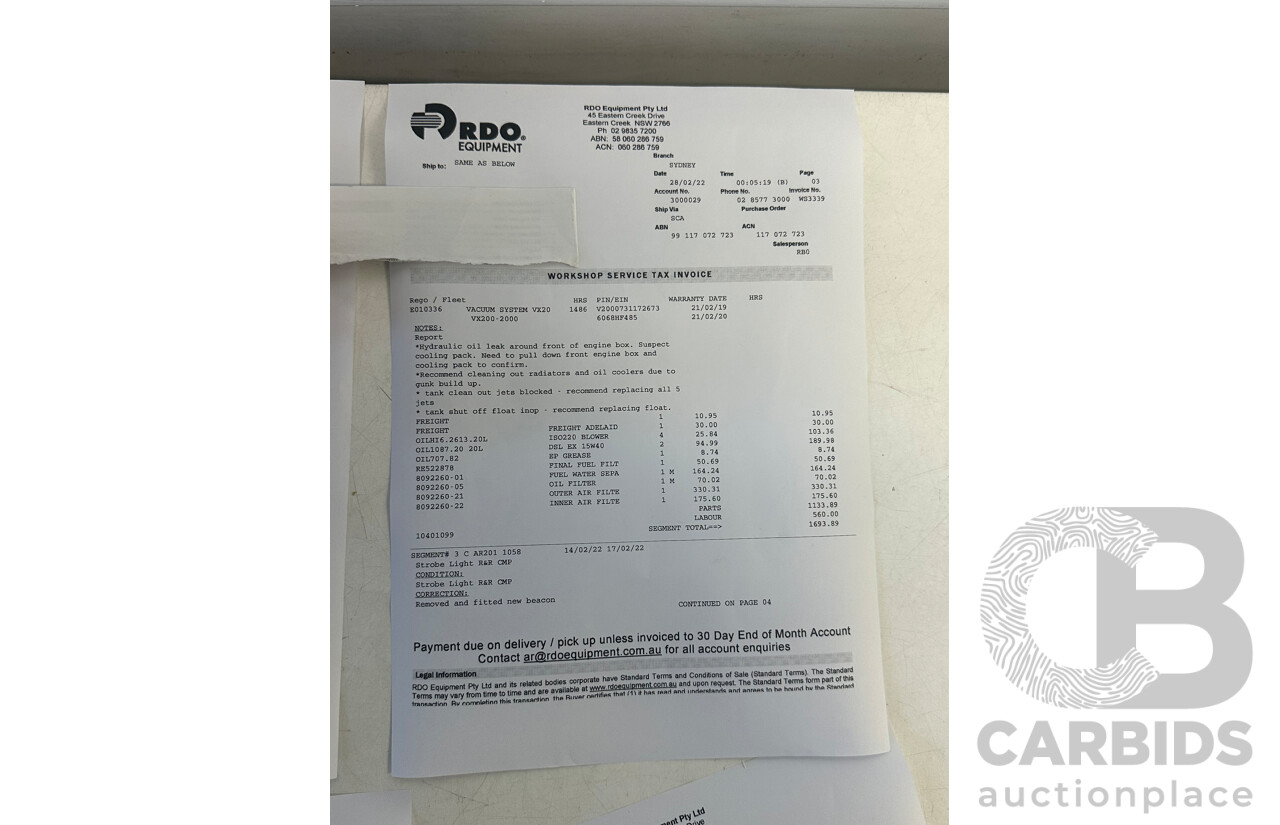

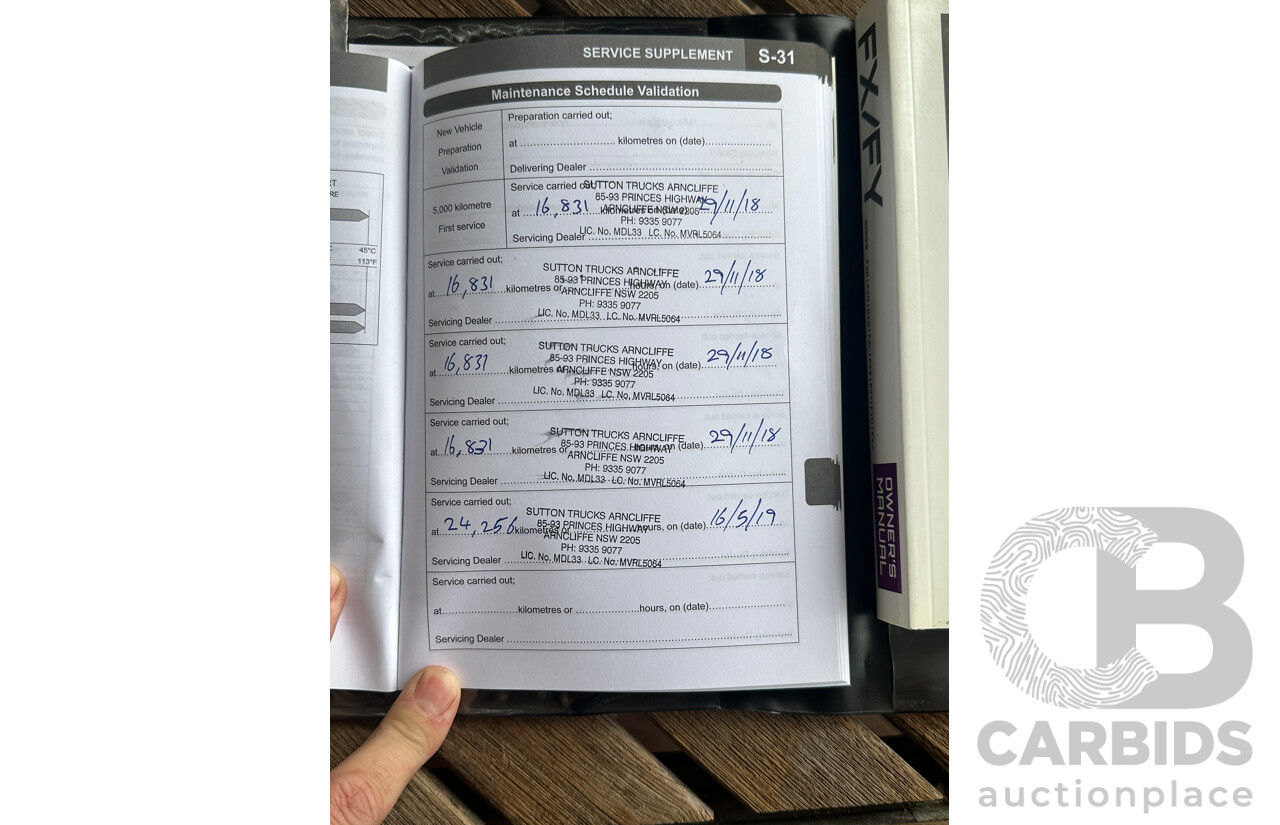

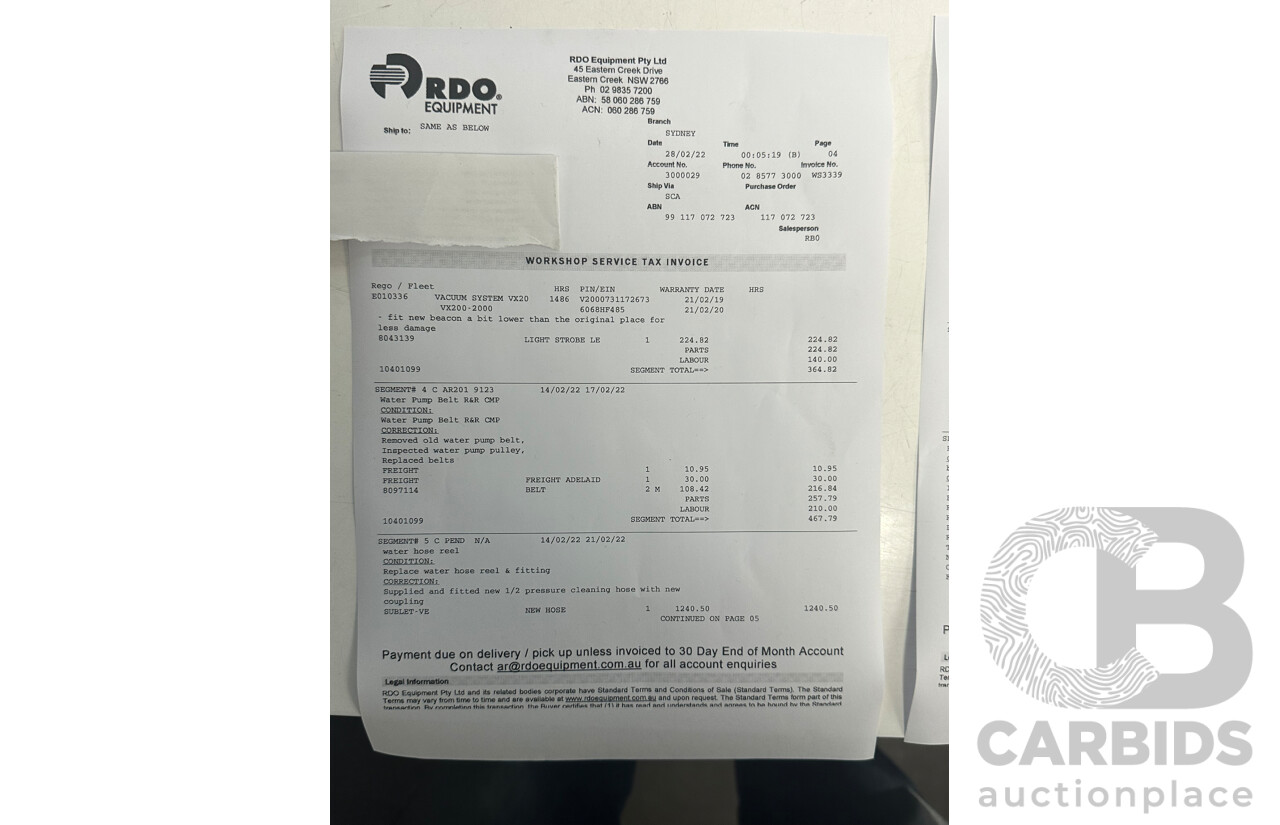

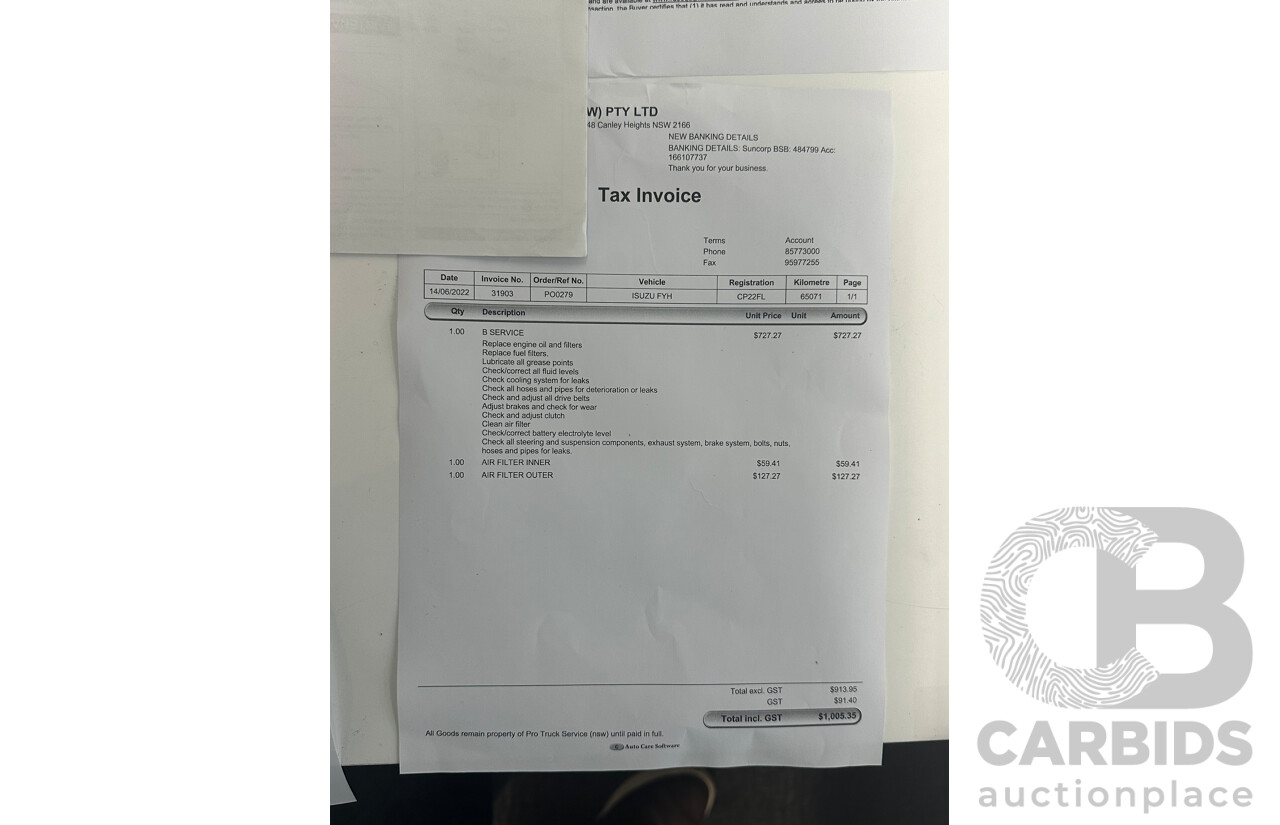

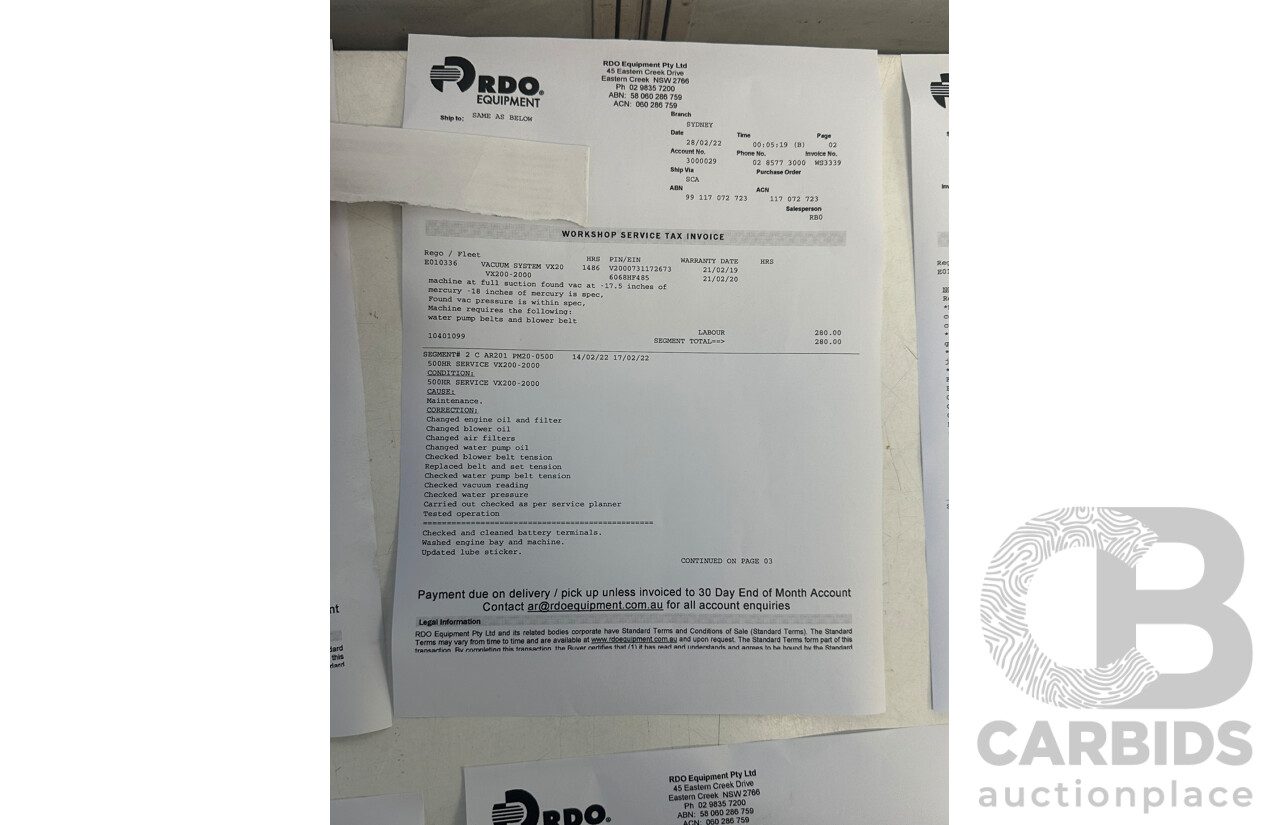

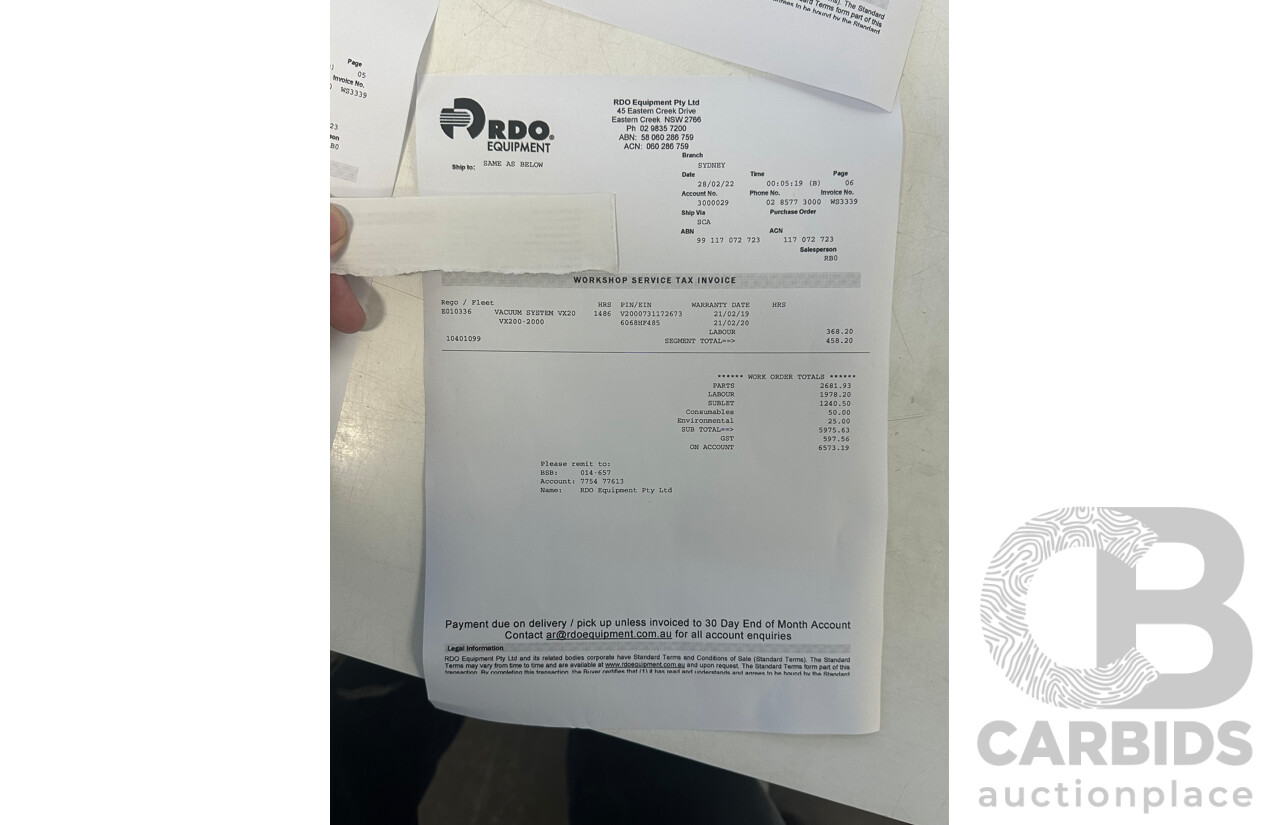

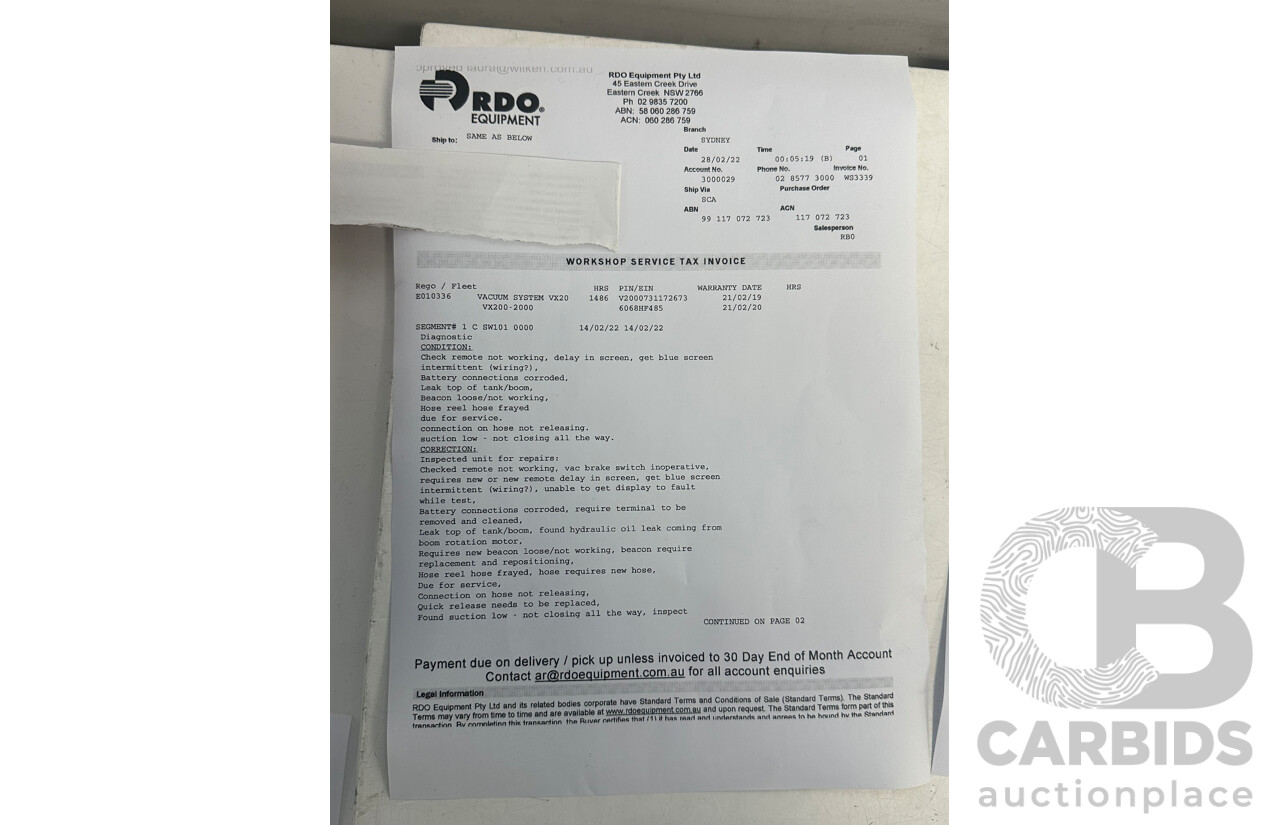

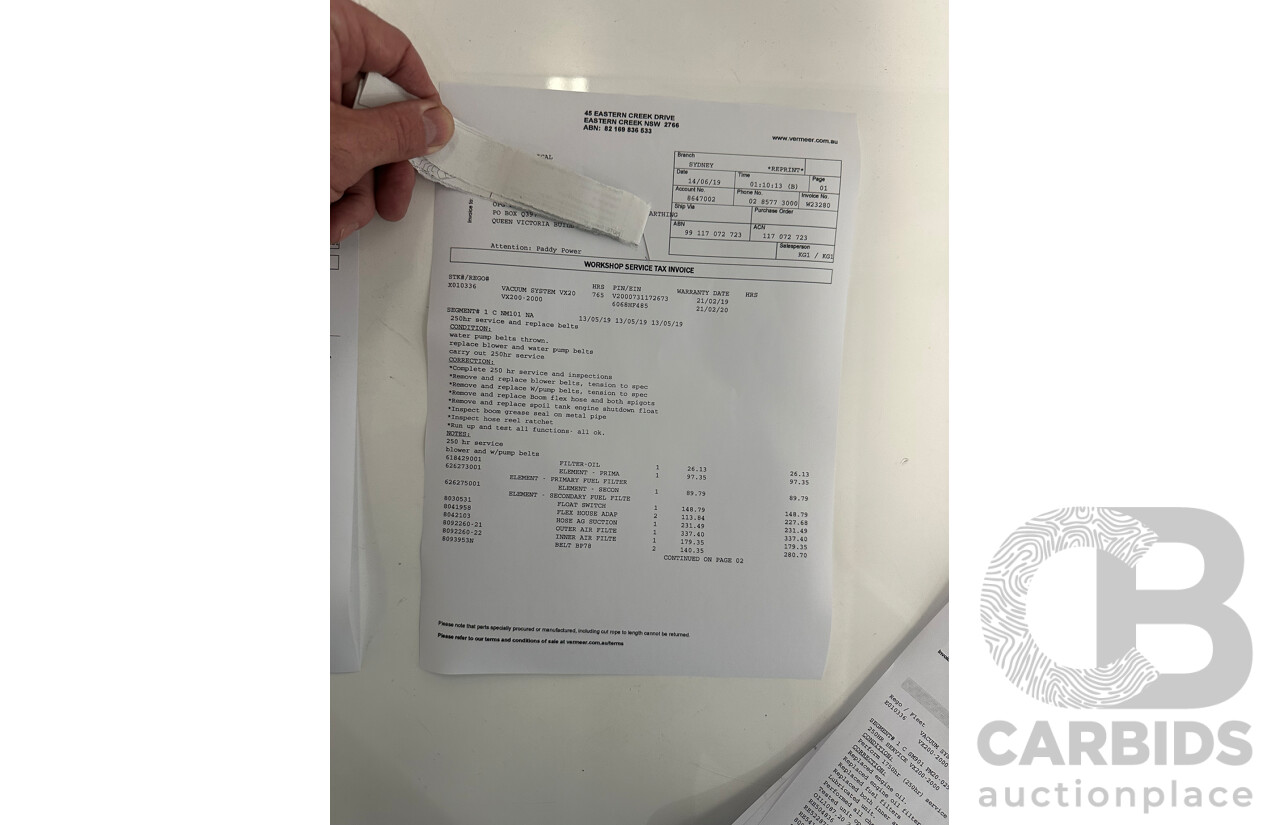

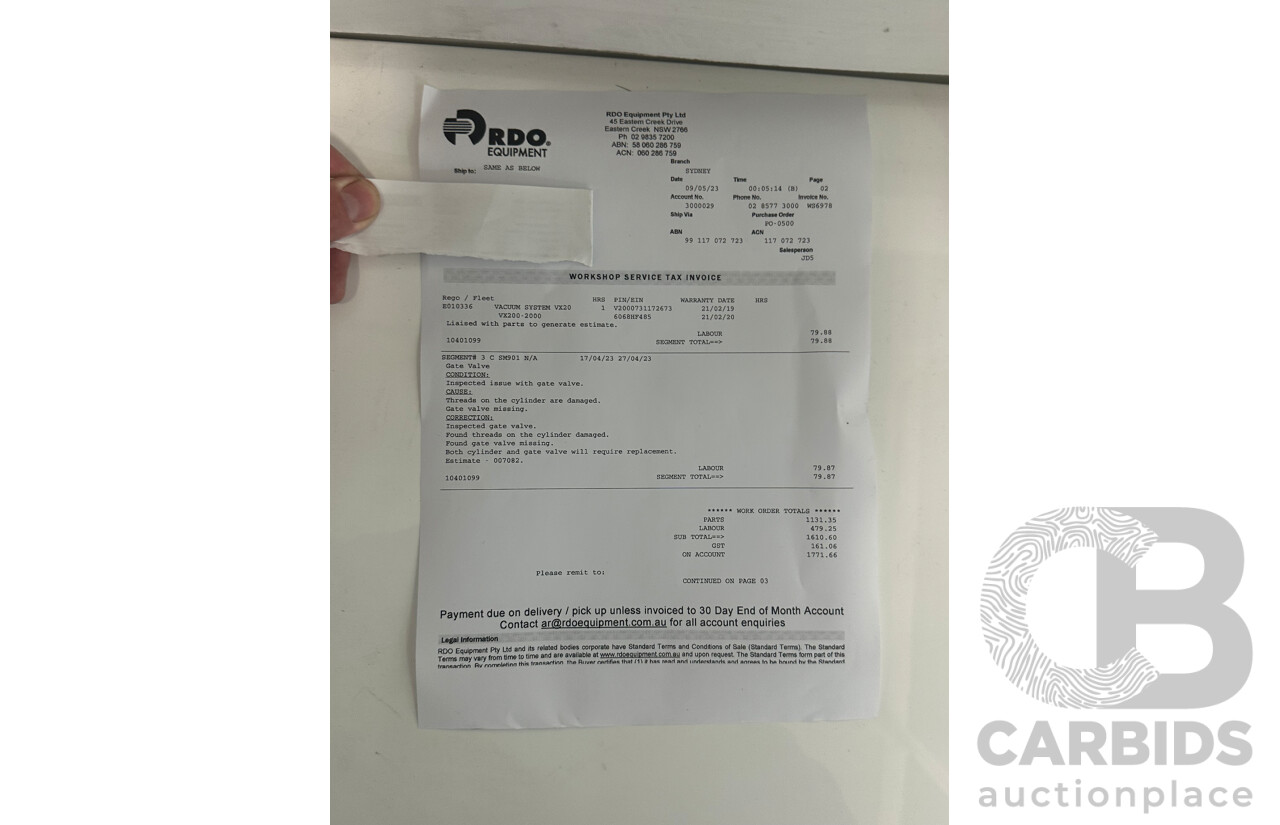

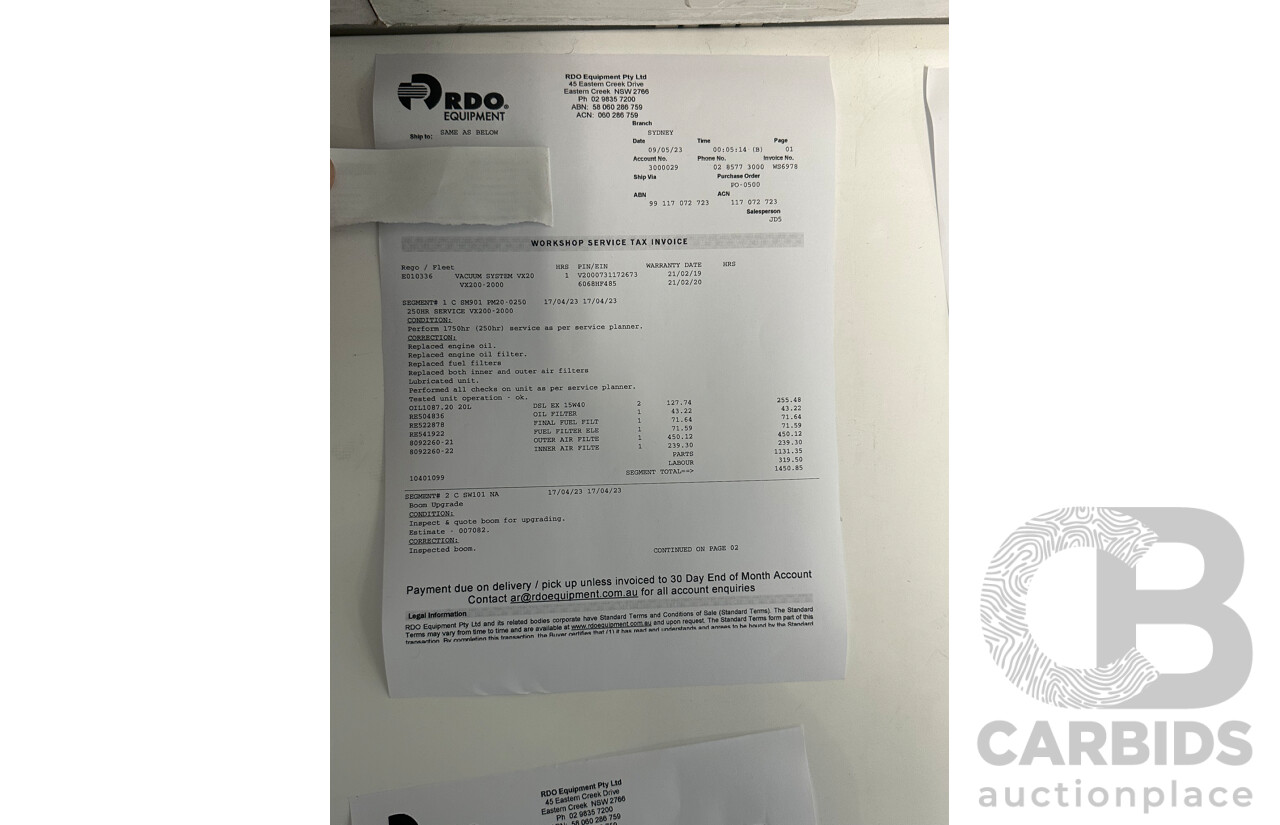

Service History
Full Service History and any repairs
Keys Included
2
Mechanical inspections
We welcome any independent party to inspect motor vehicles on your behalf. This is highly recommended in the case you cannot see the car yourself.
The information is intended as a guide only and ALLBIDS gives no guarantee or warranty about the accuracy of the information contained within. You must ensure you have read, understood and agreed to the Terms and Conditions for Buying at Auction which include confirmation that vehicles are sold “as is, where is” with all faults (if any) and you must independently verify information which is important to your purchasing decision.
Vehicle Overview
83,915km (Indicated)
Full Service History and any repairs
2
6 speed automatic
9839 24Valve SOHC Cylinder
TD
diesel
10x5
Front Tyres
75% Tread left
75% Tread left
Rear Tyres
75% Tread left
75% Tread left

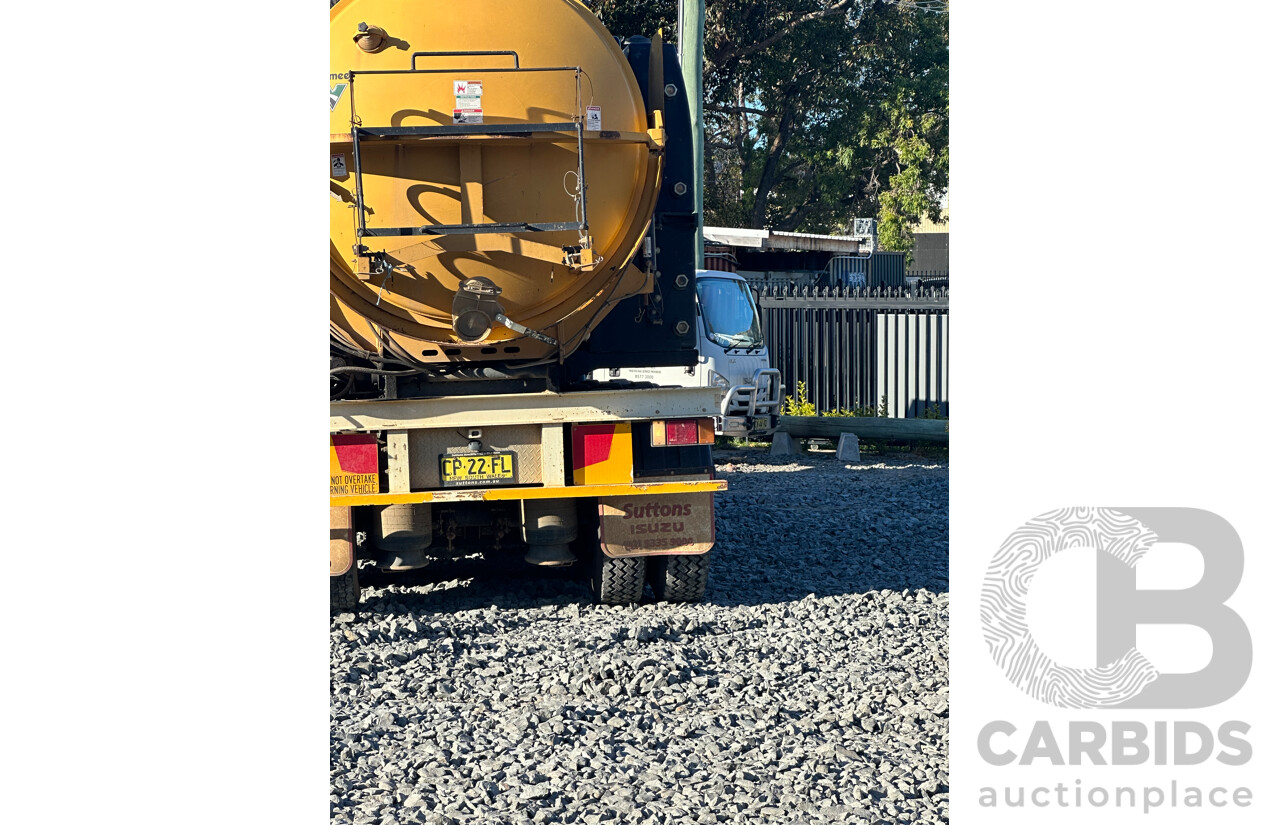

Registration
CP22FL (NSW)
Expiry 15/02/2024
Expiry 15/02/2024
VIN
JALFYH77TH7000041
ENGINE
6421630440
No Roadworthy Certificate Included
Vehicle NOT on WOVR
No Finance Owing
