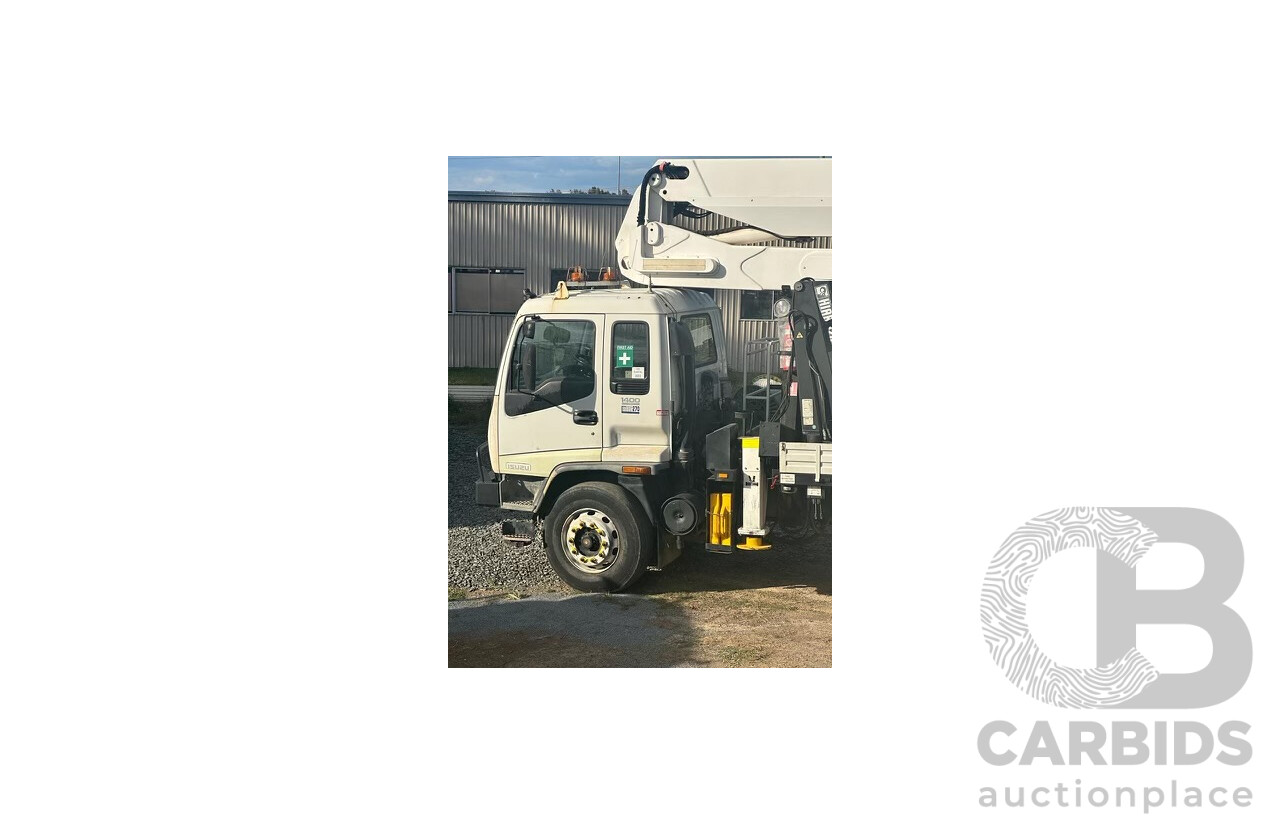

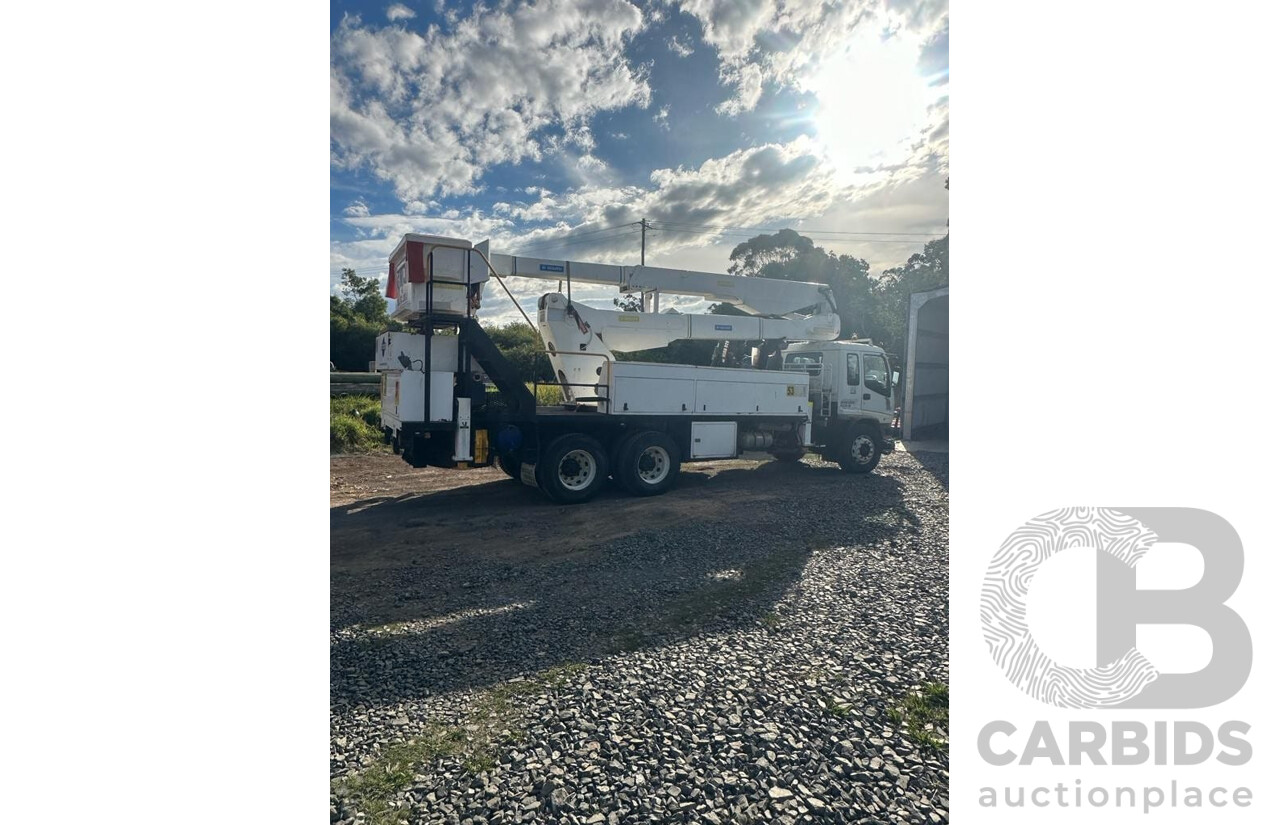

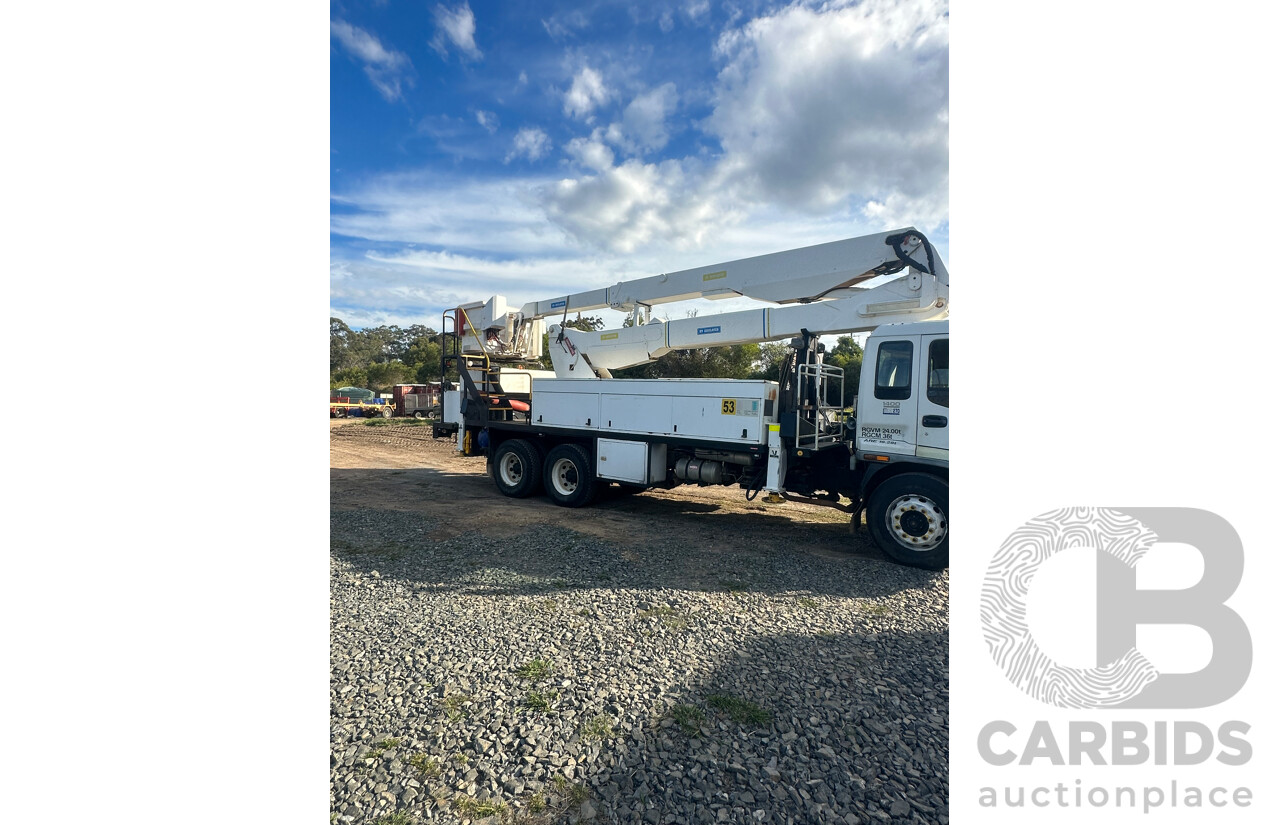

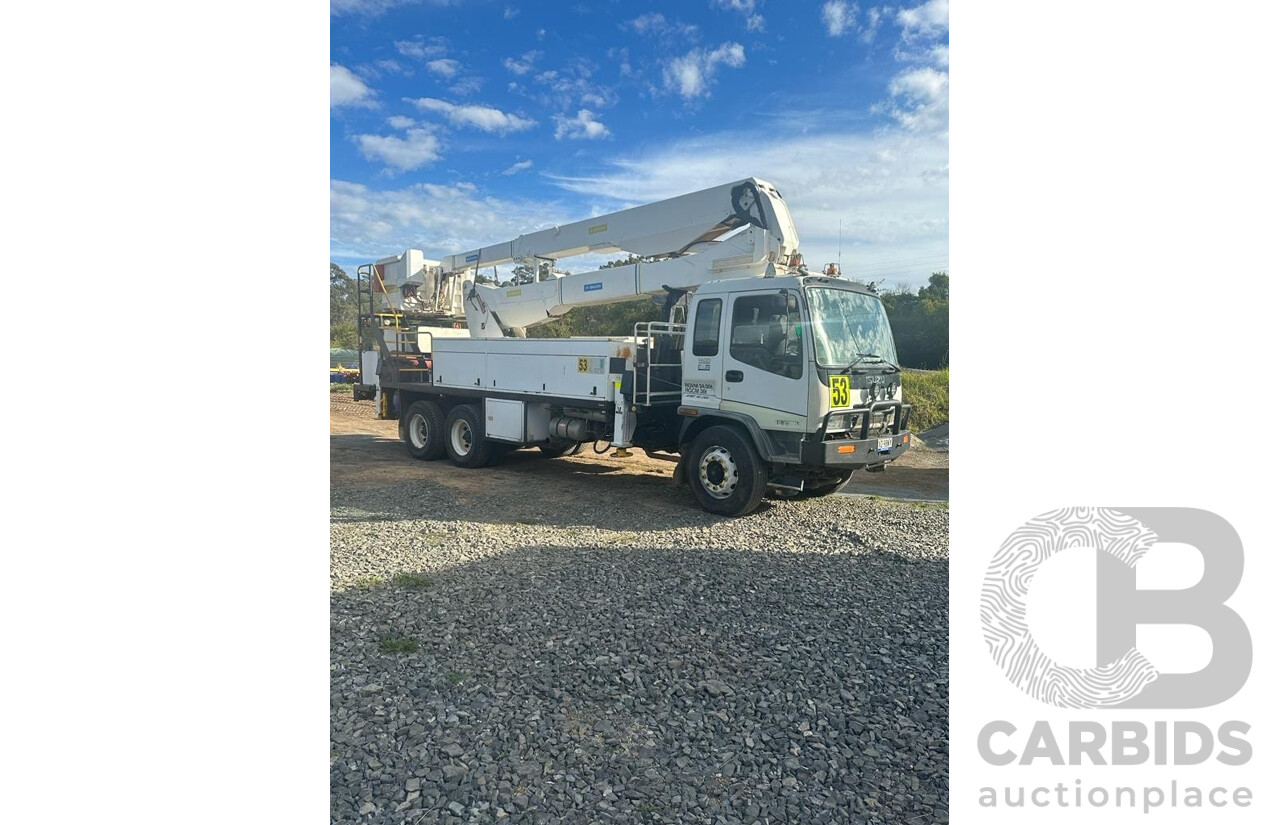

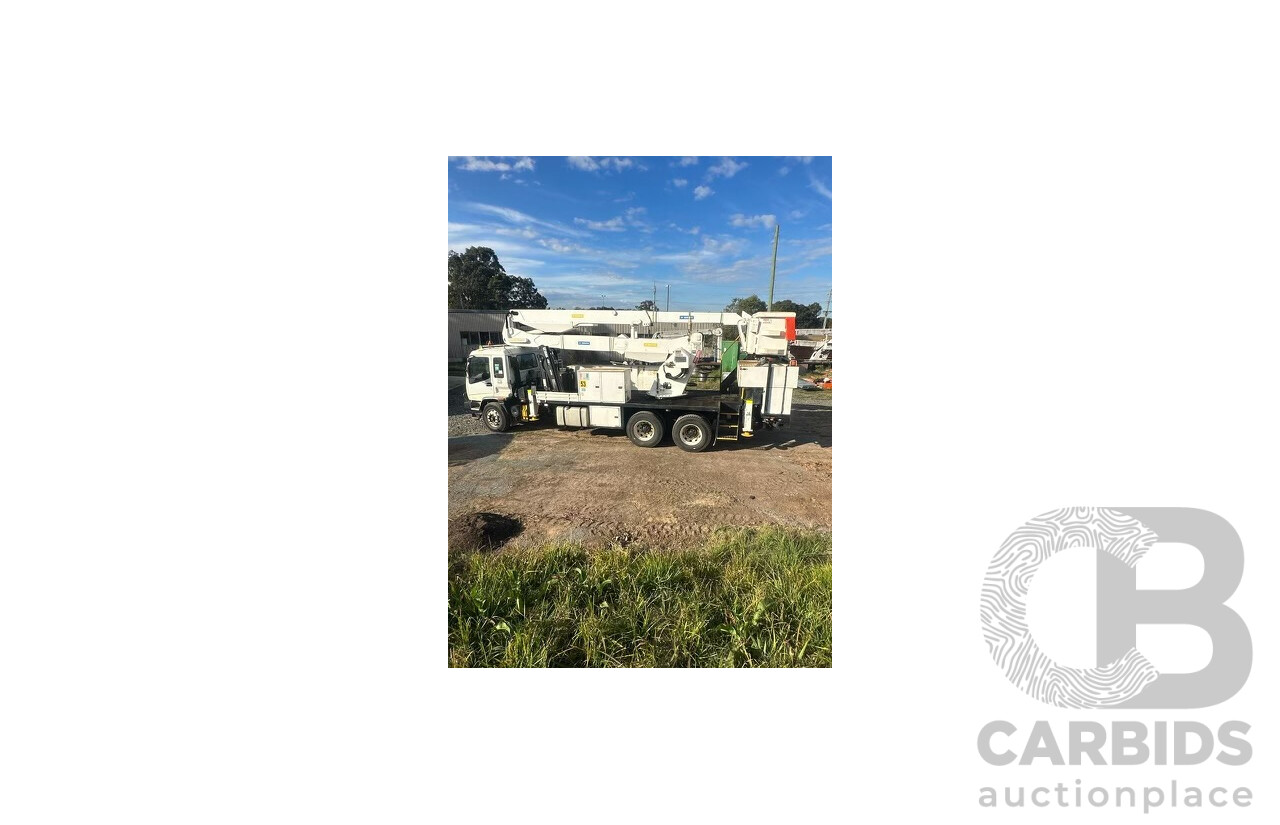

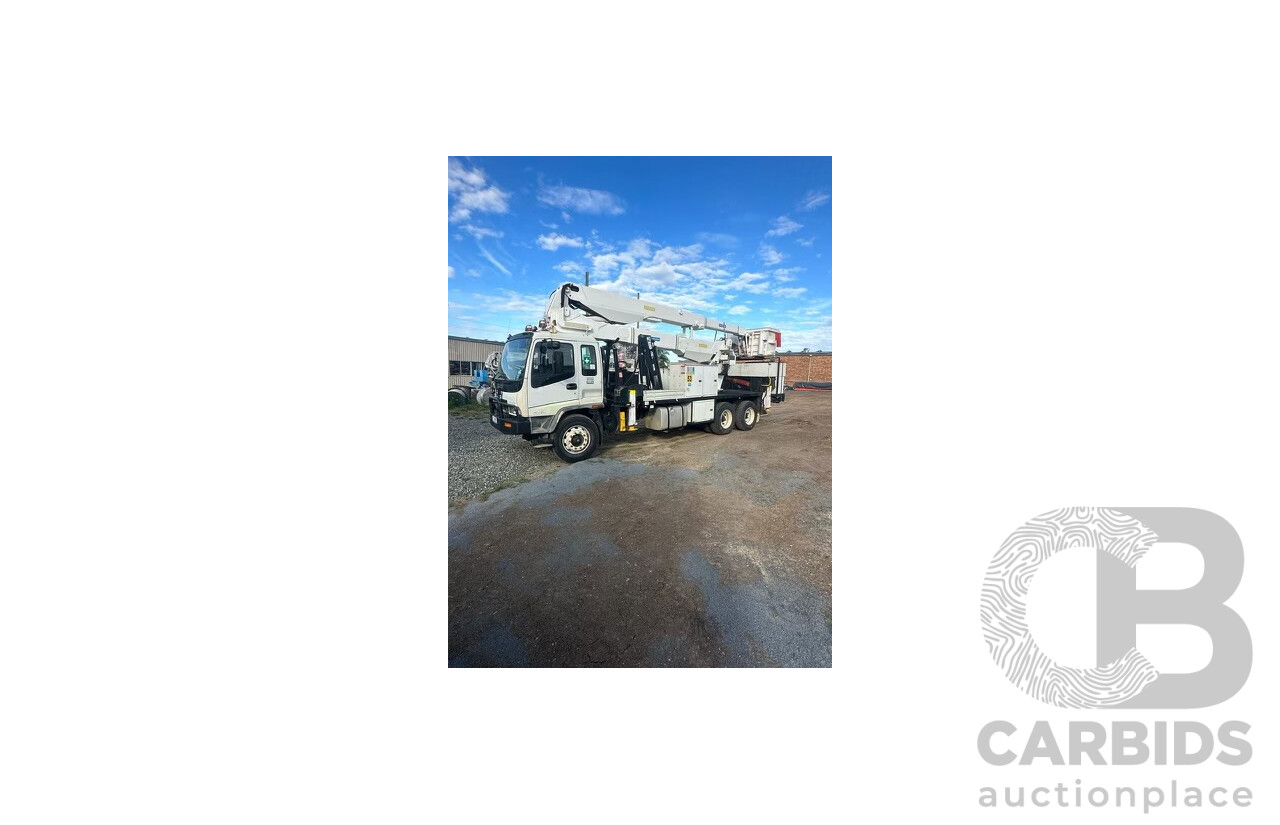

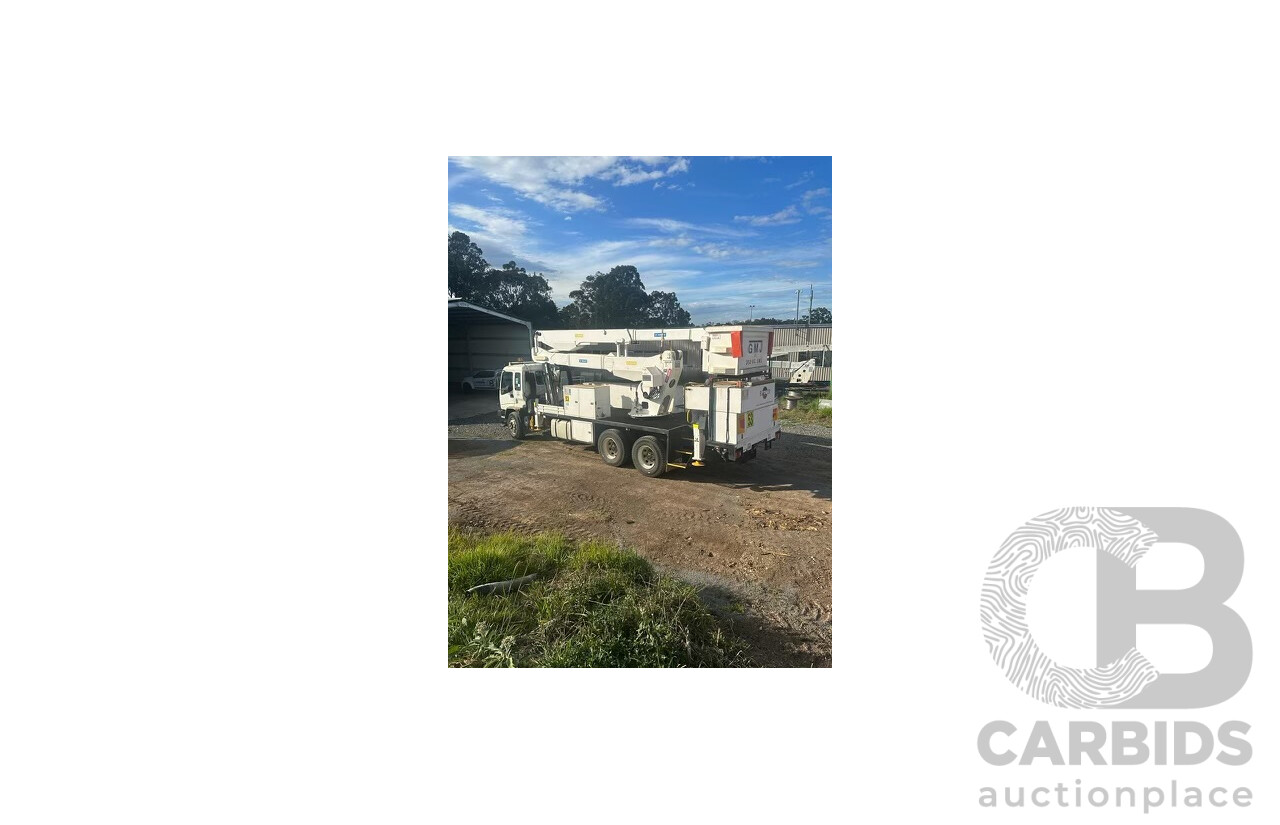

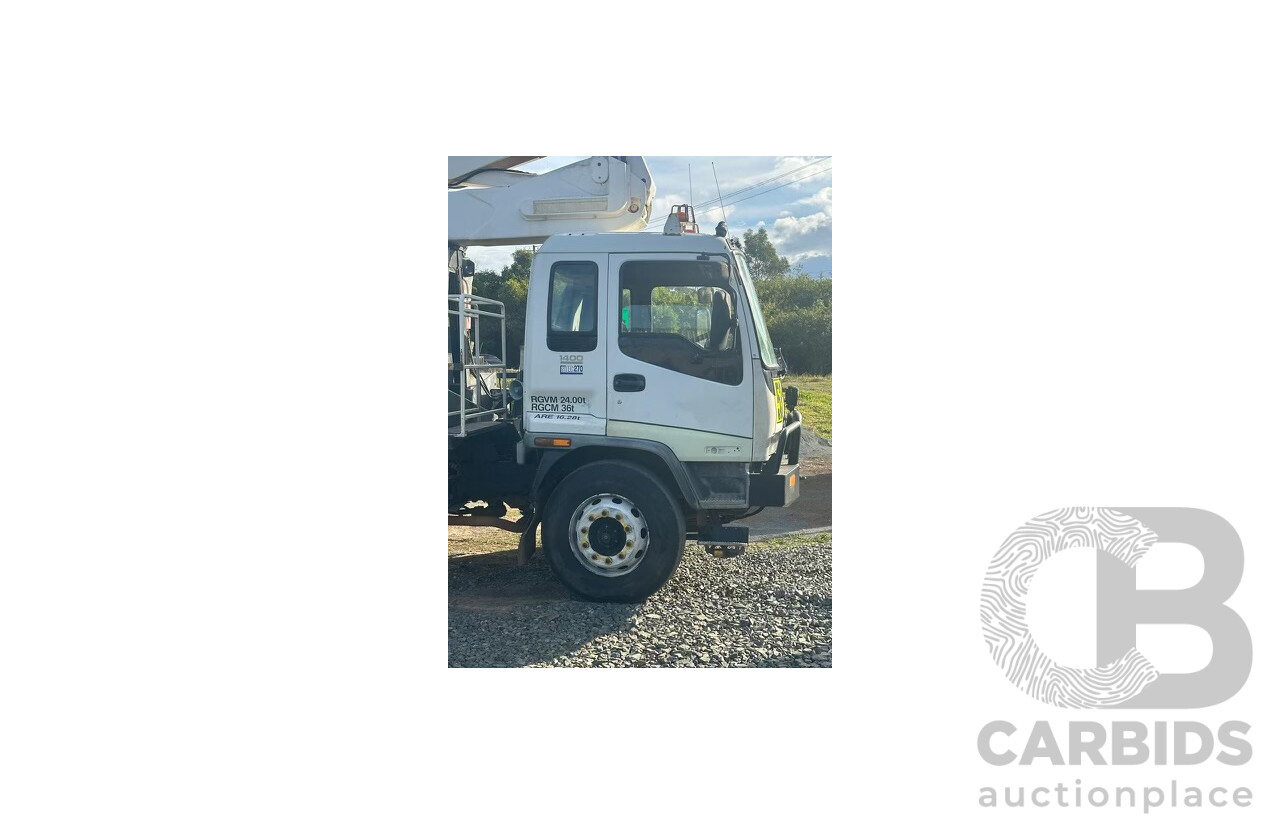

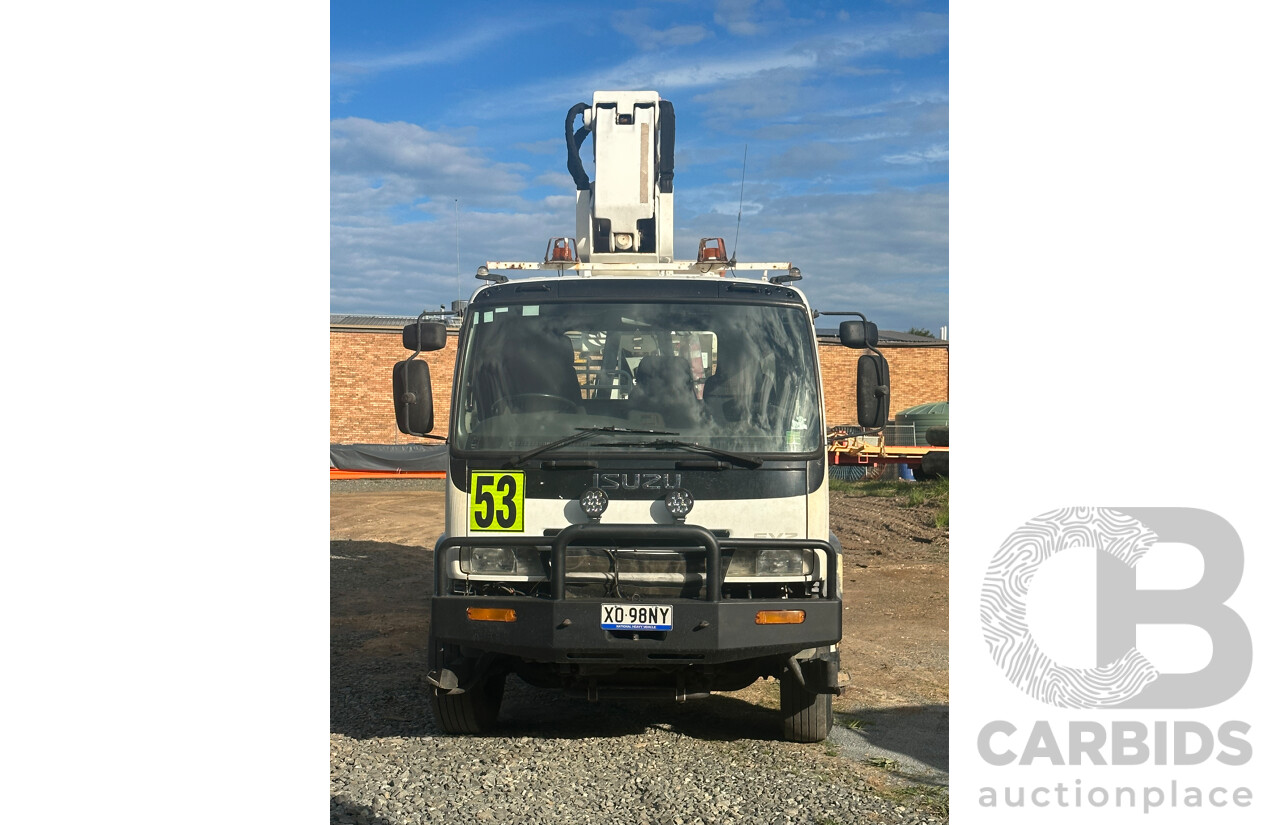

03/2002 Isuzu FY FVZ work Platform With EWP UNDER OFFER

03/2002 Isuzu FY FVZ work Platform With EWP

KEY FACTS

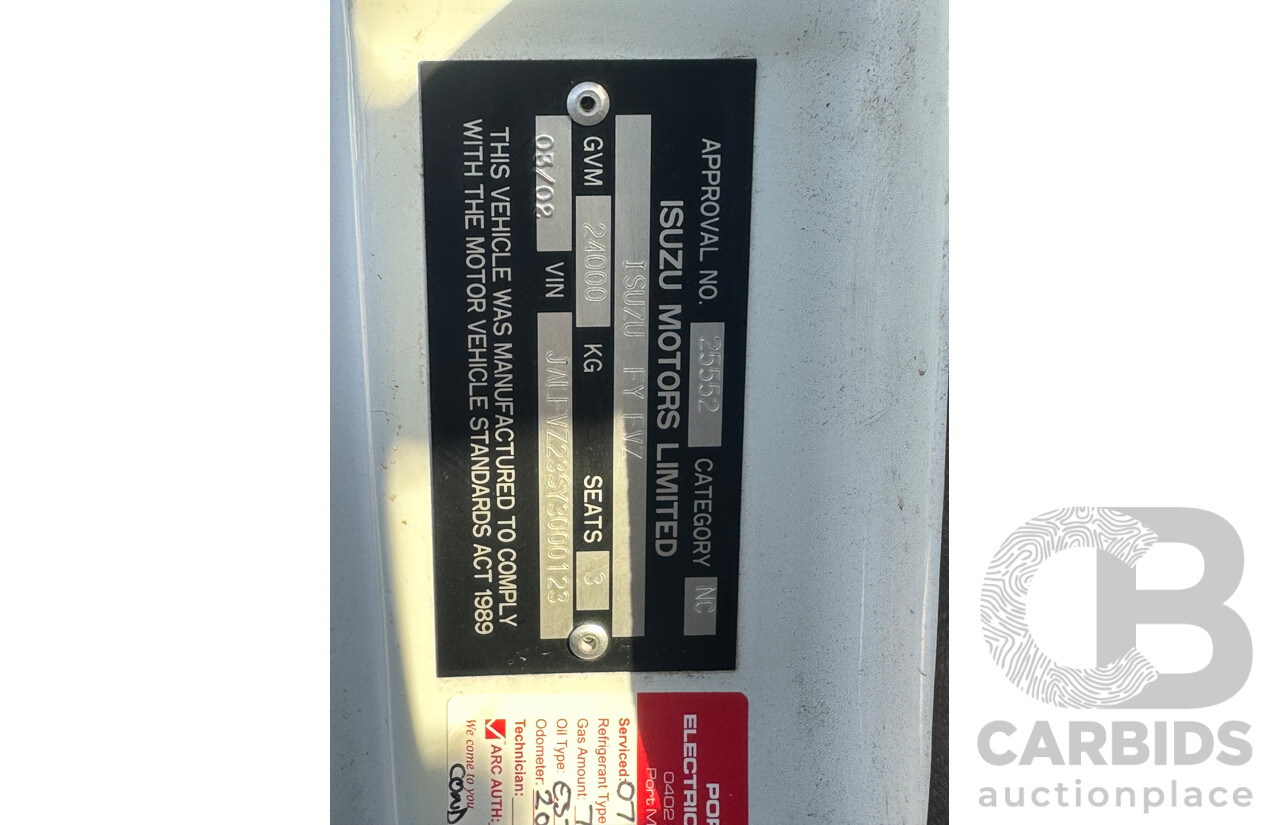

03/2002 Isuzu FY FVZ work Platform With EWP

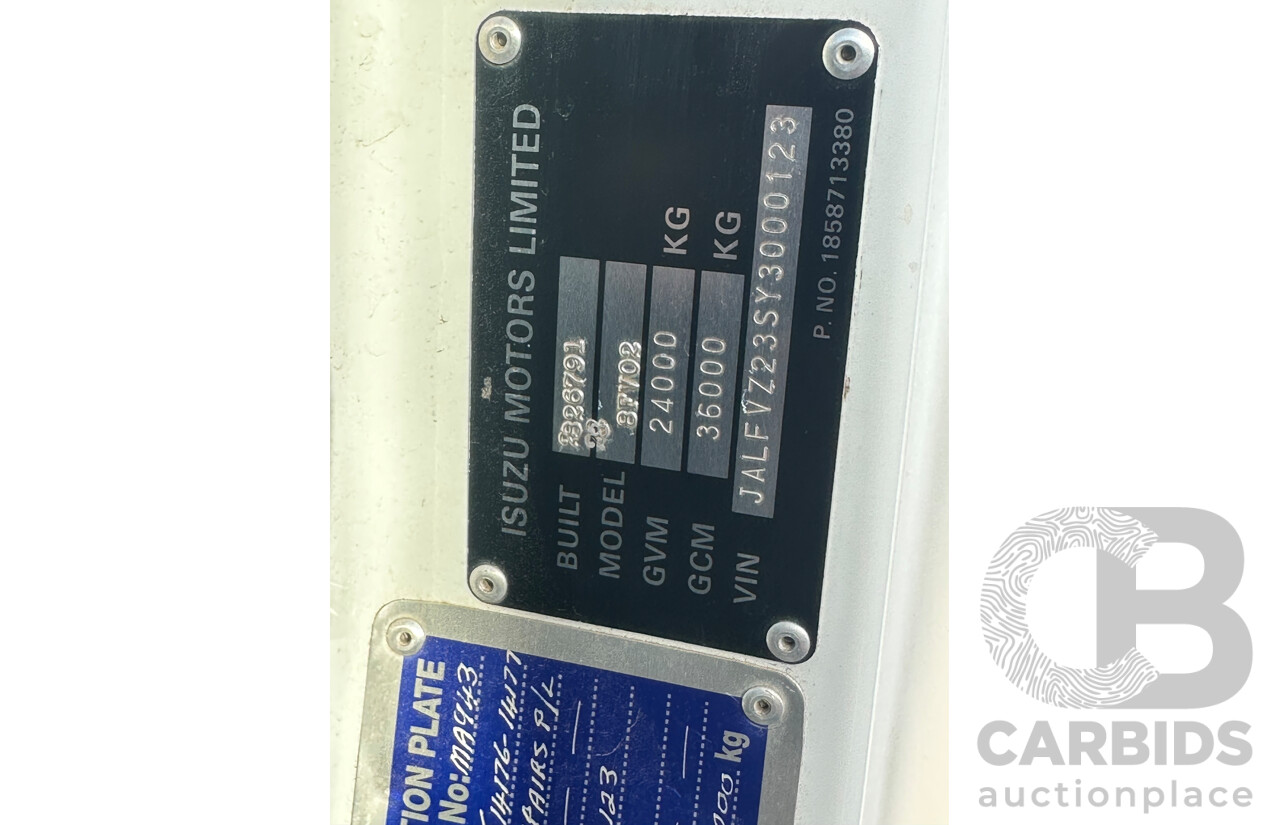

Make: Isuzu

Model: FVZ193A

Date of manufacture: 02/2003

Engine number: 6SD1738479

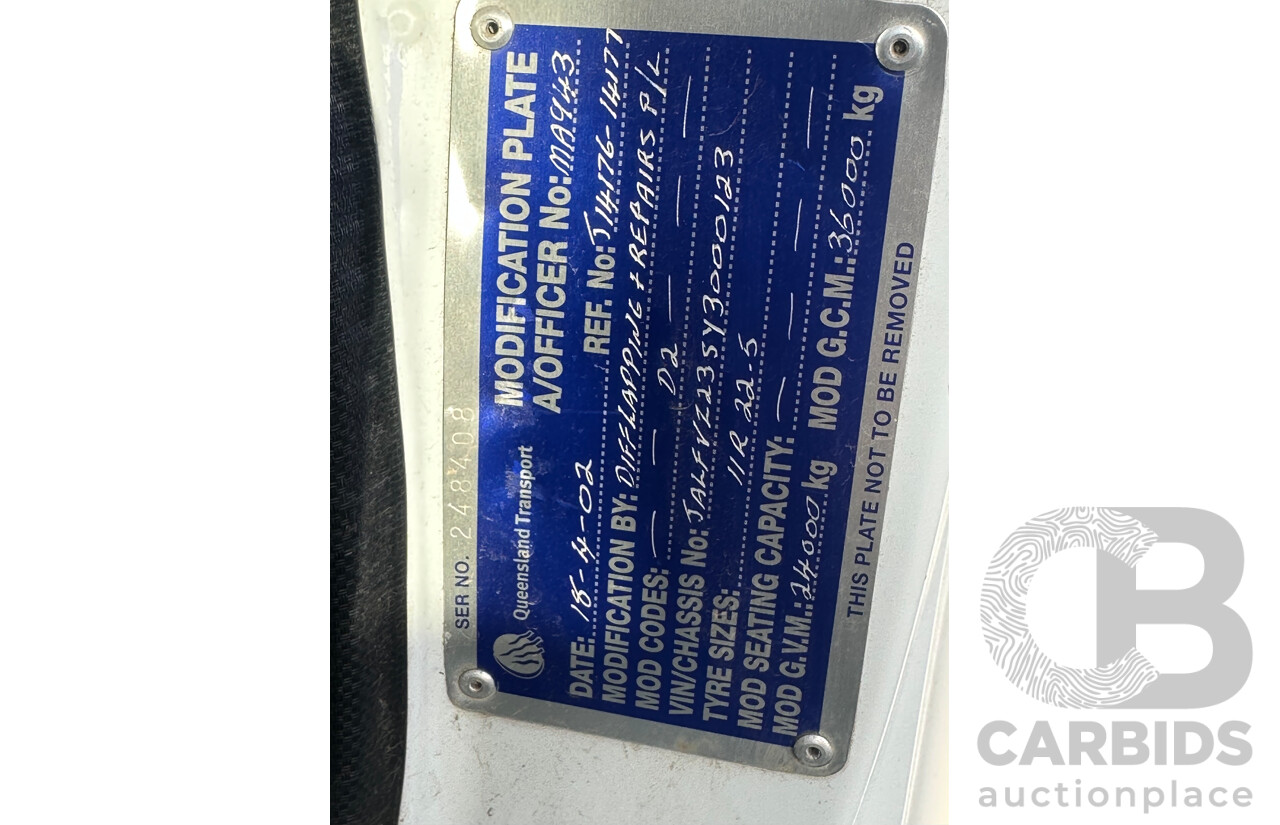

VIN: JALFVZ23SY3000123

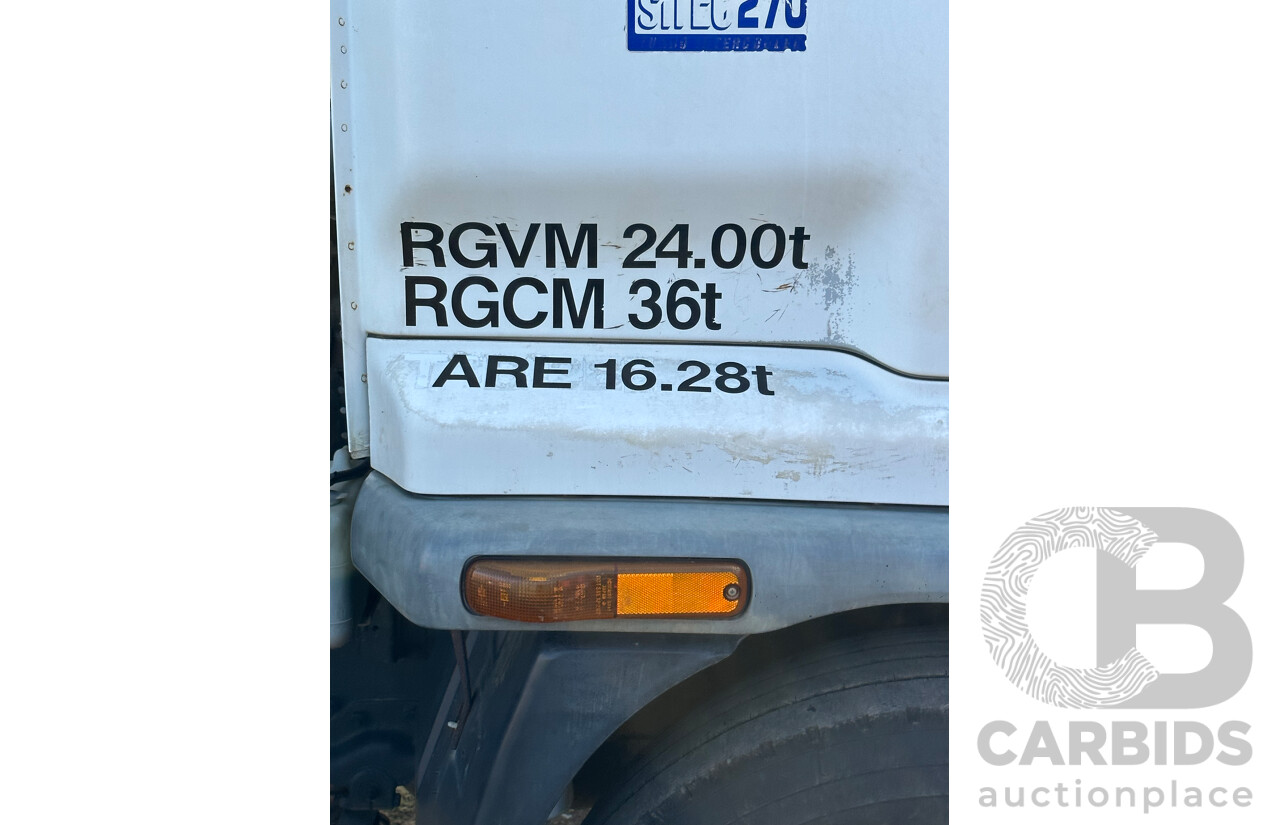

Tare weight:16280

GVM:24,000kg

GCM:36,000kg

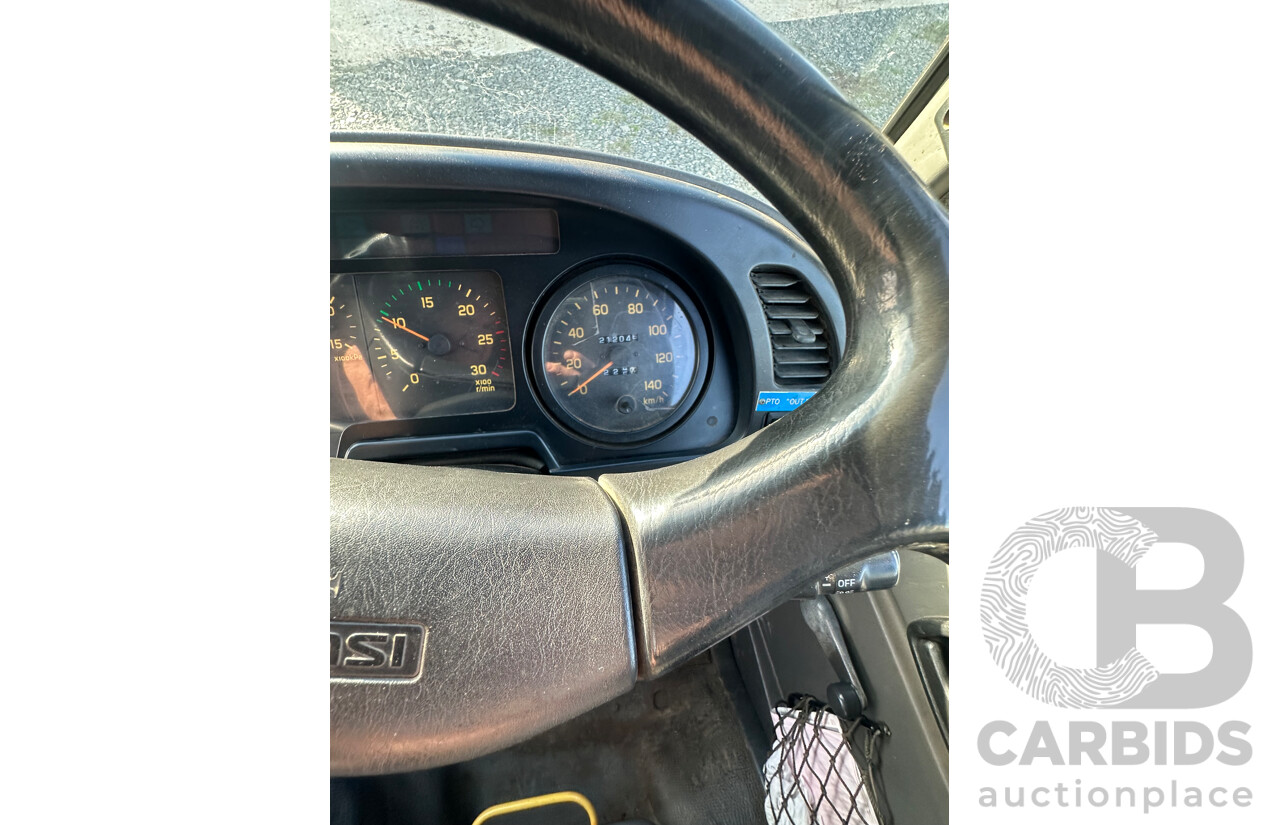

Odometer: 212,046 km's

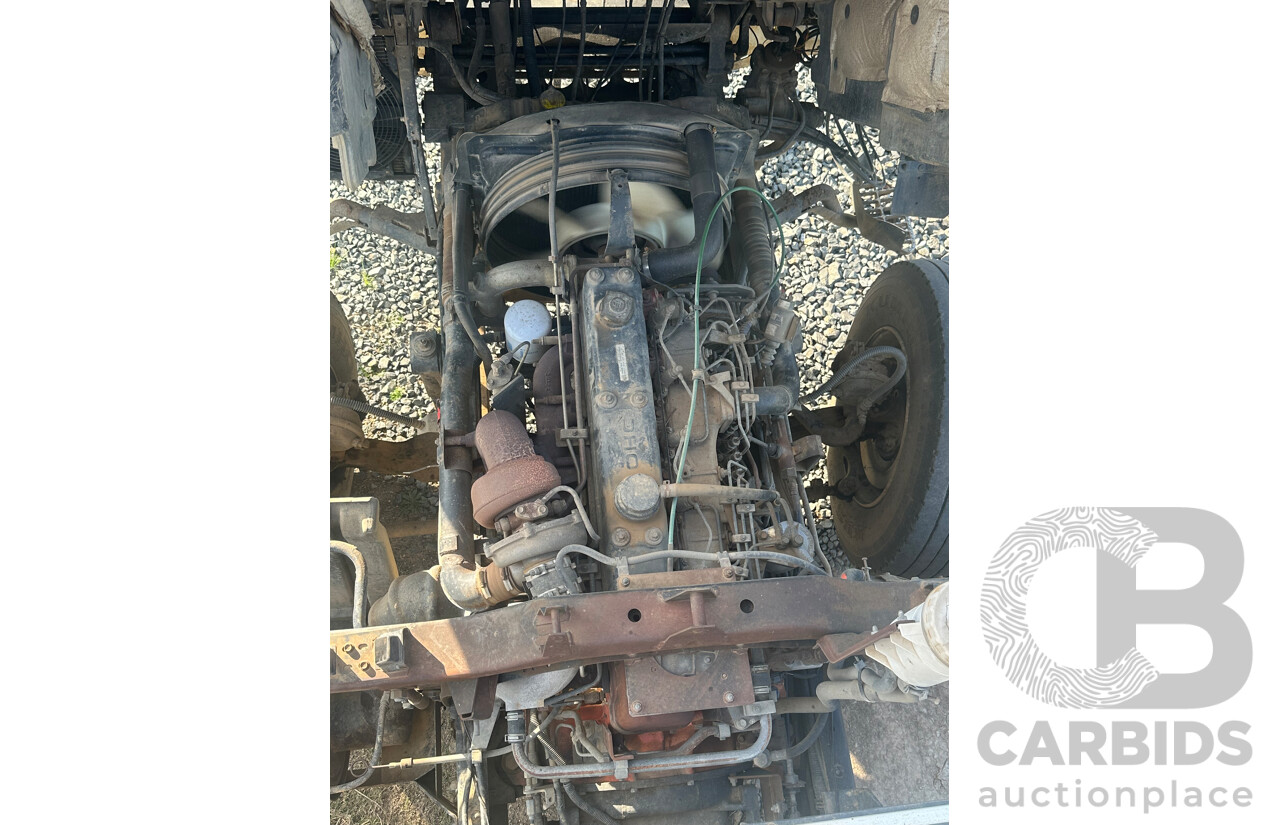

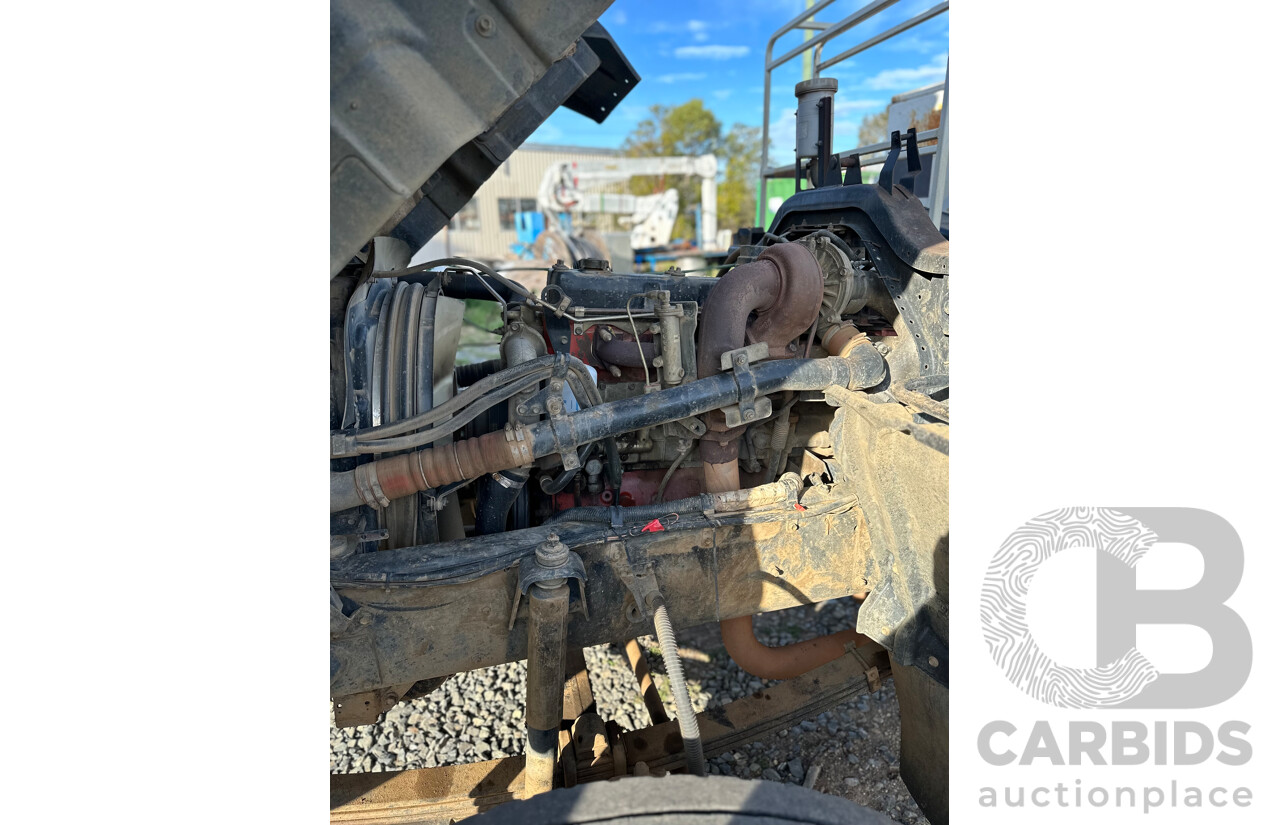

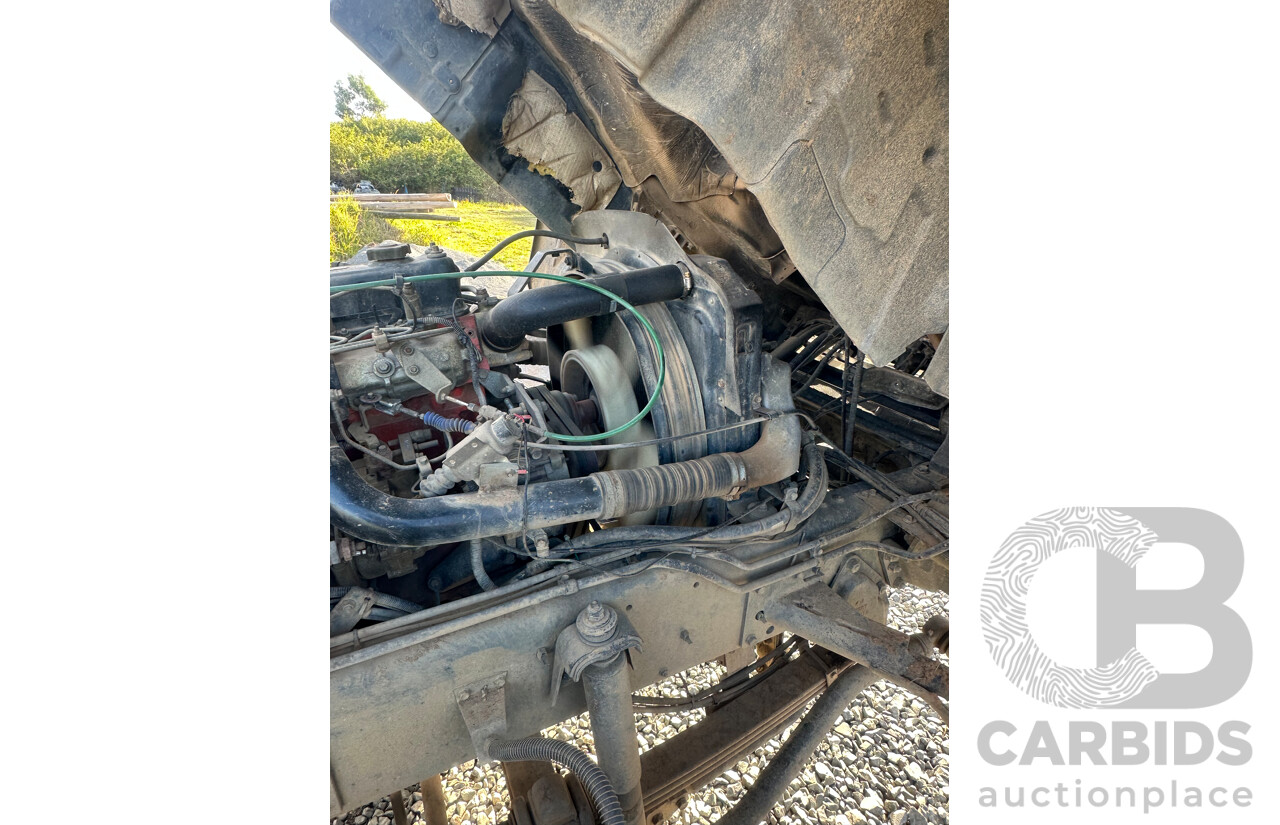

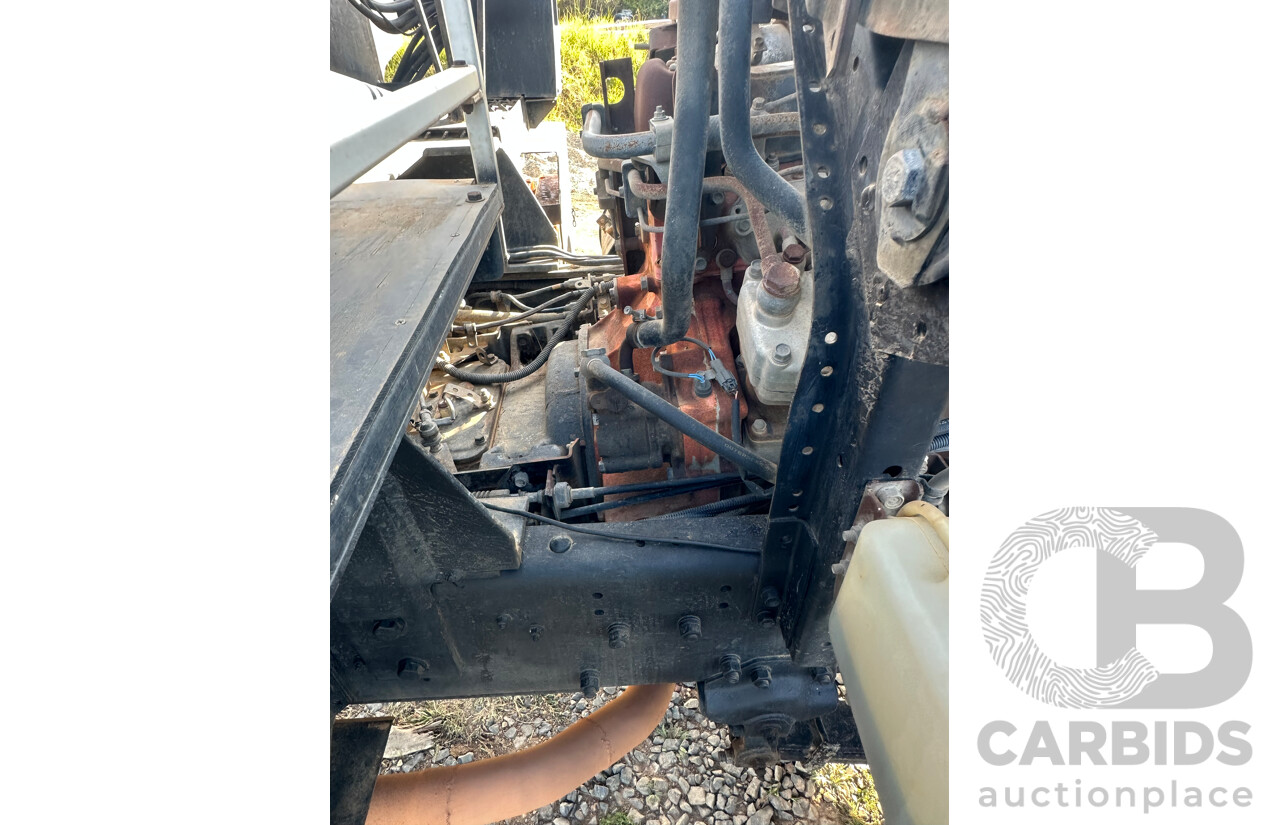

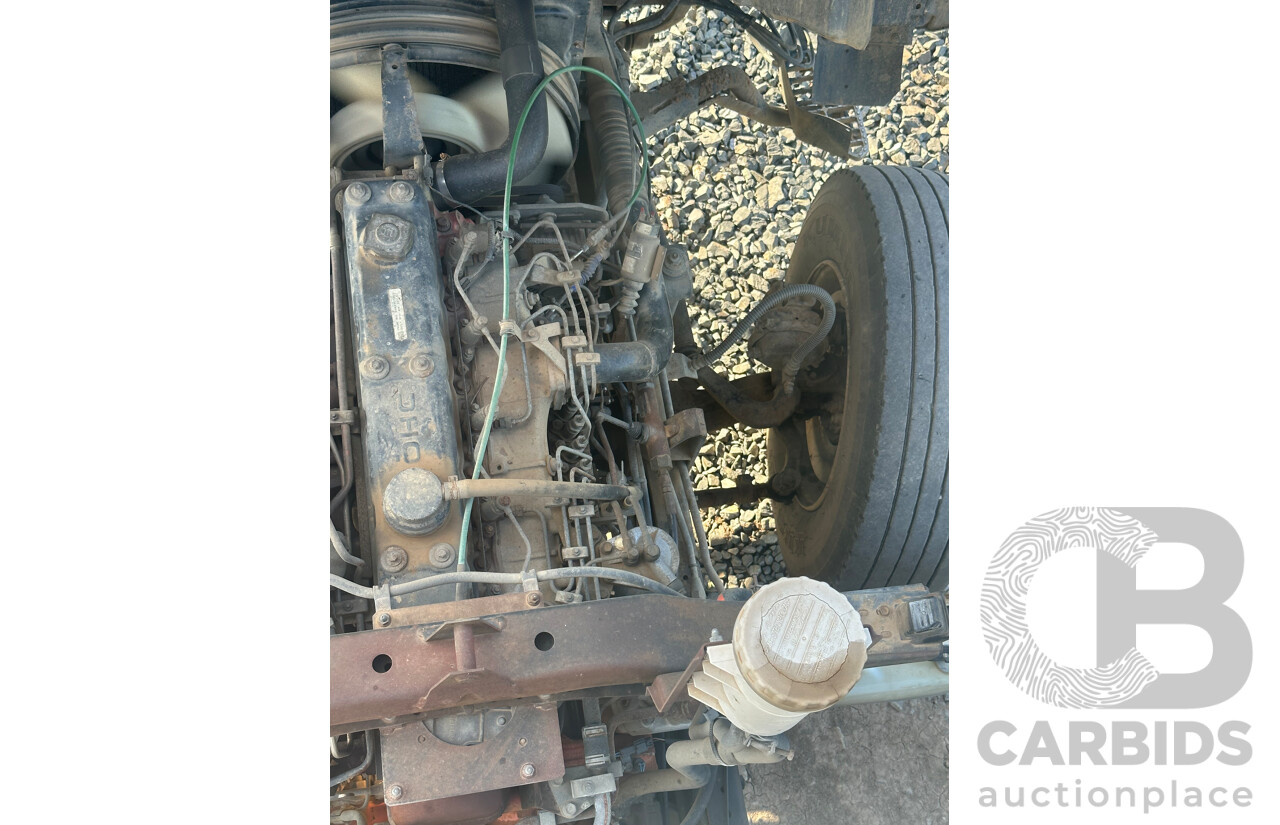

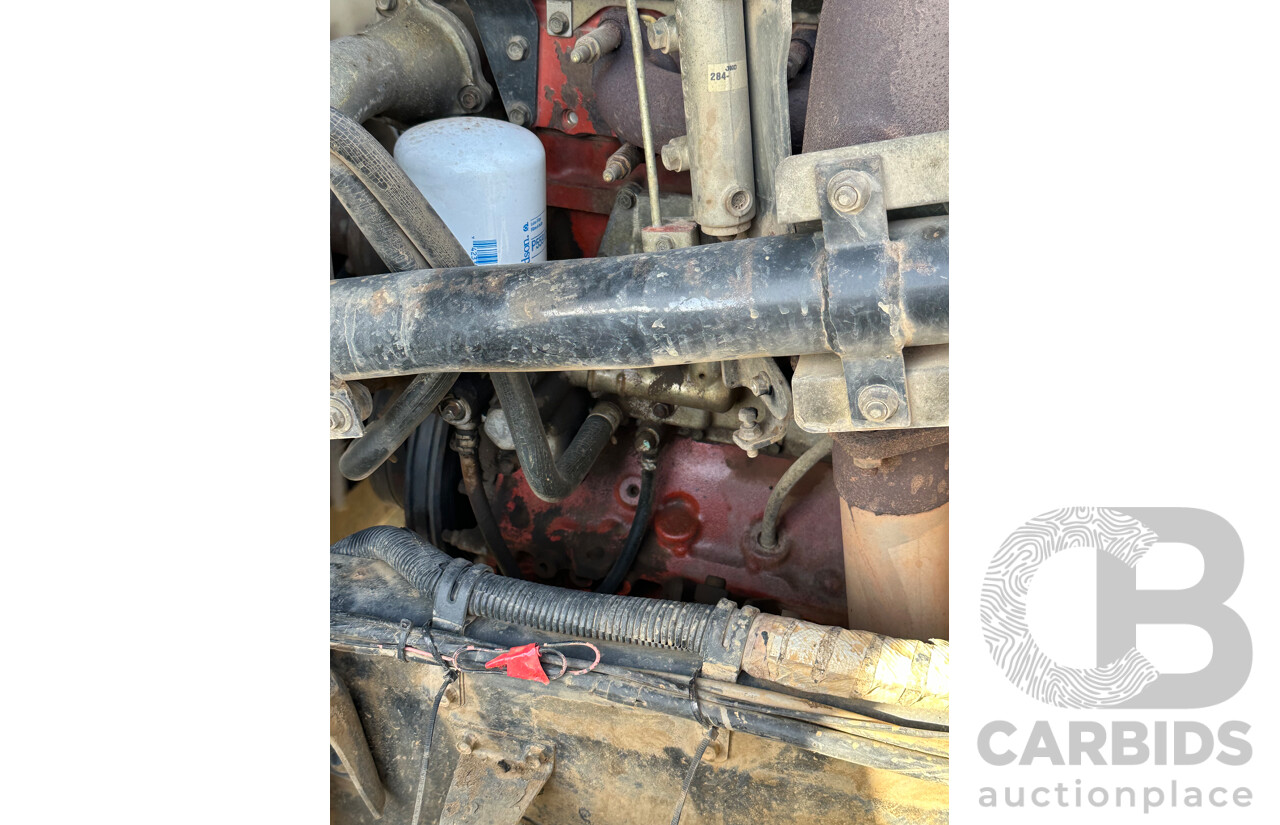

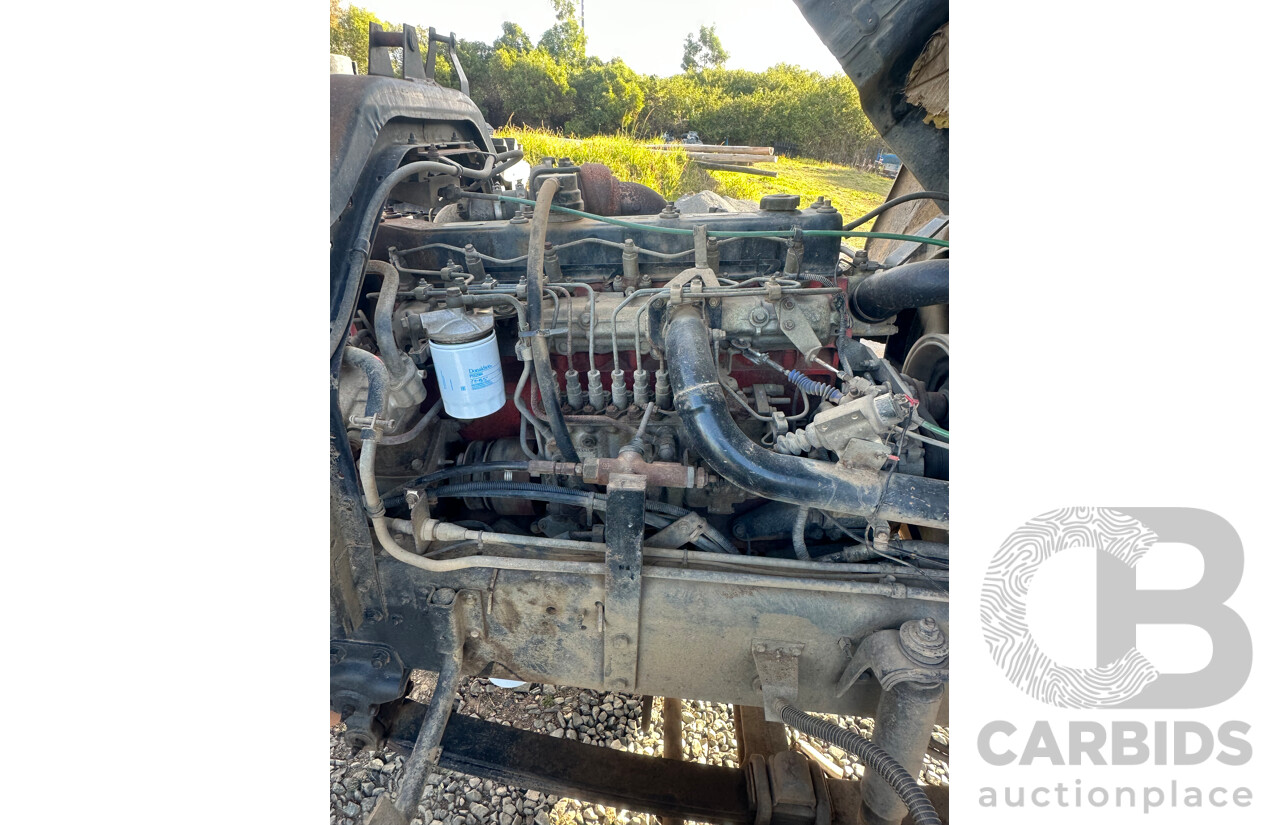

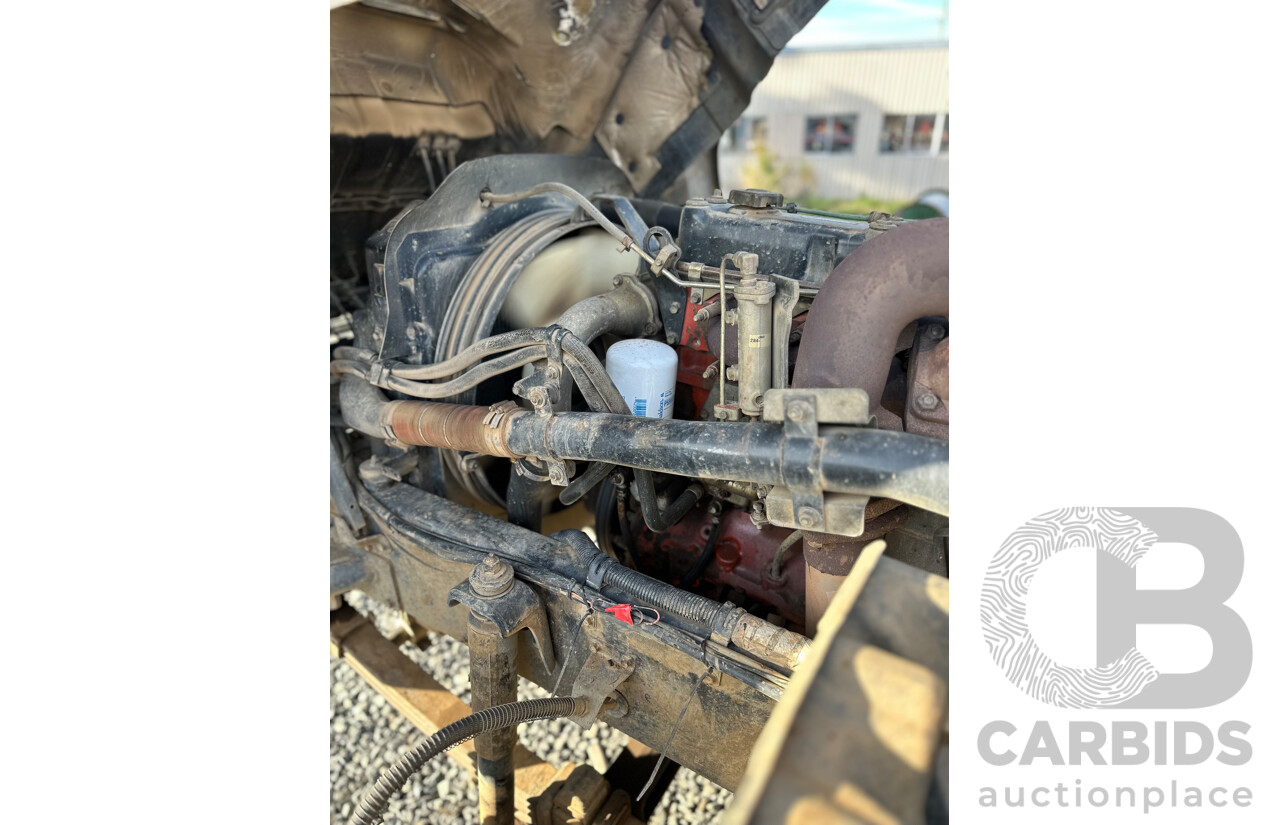

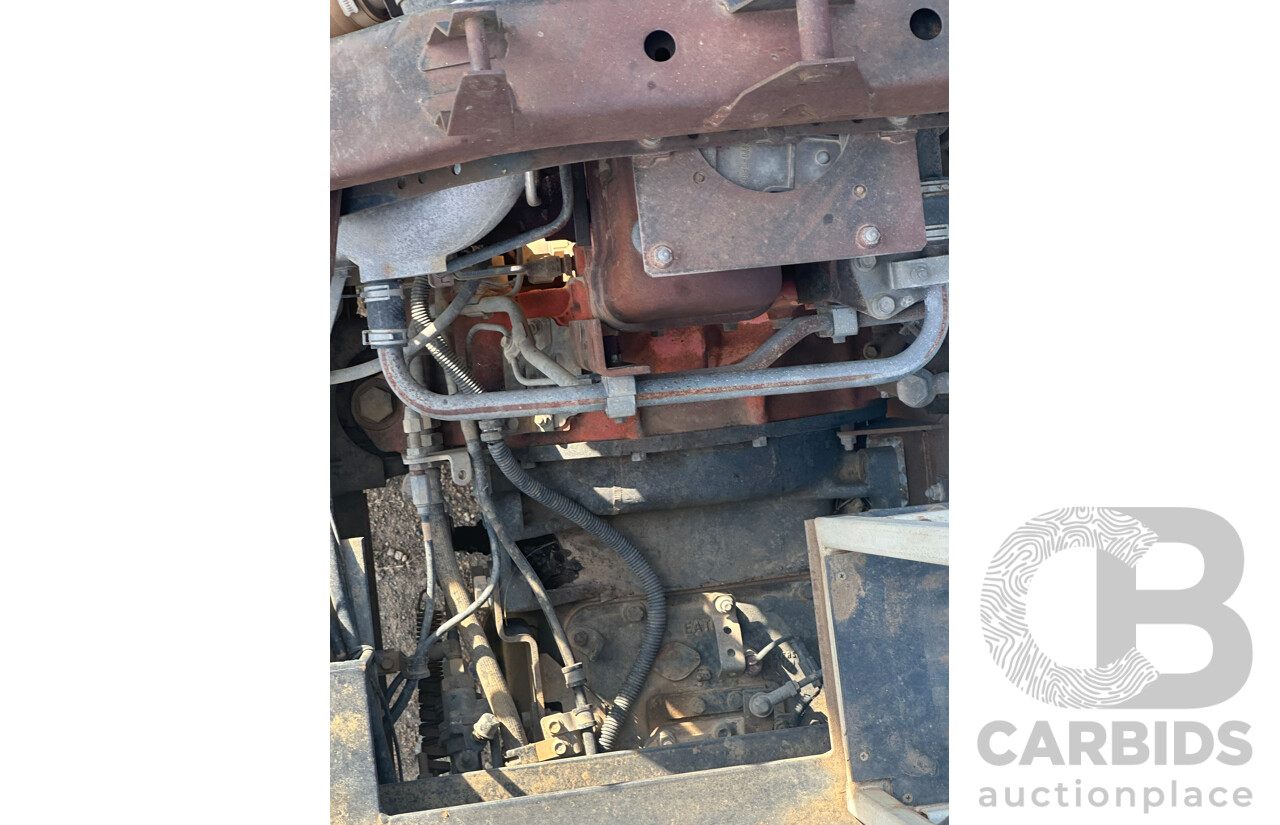

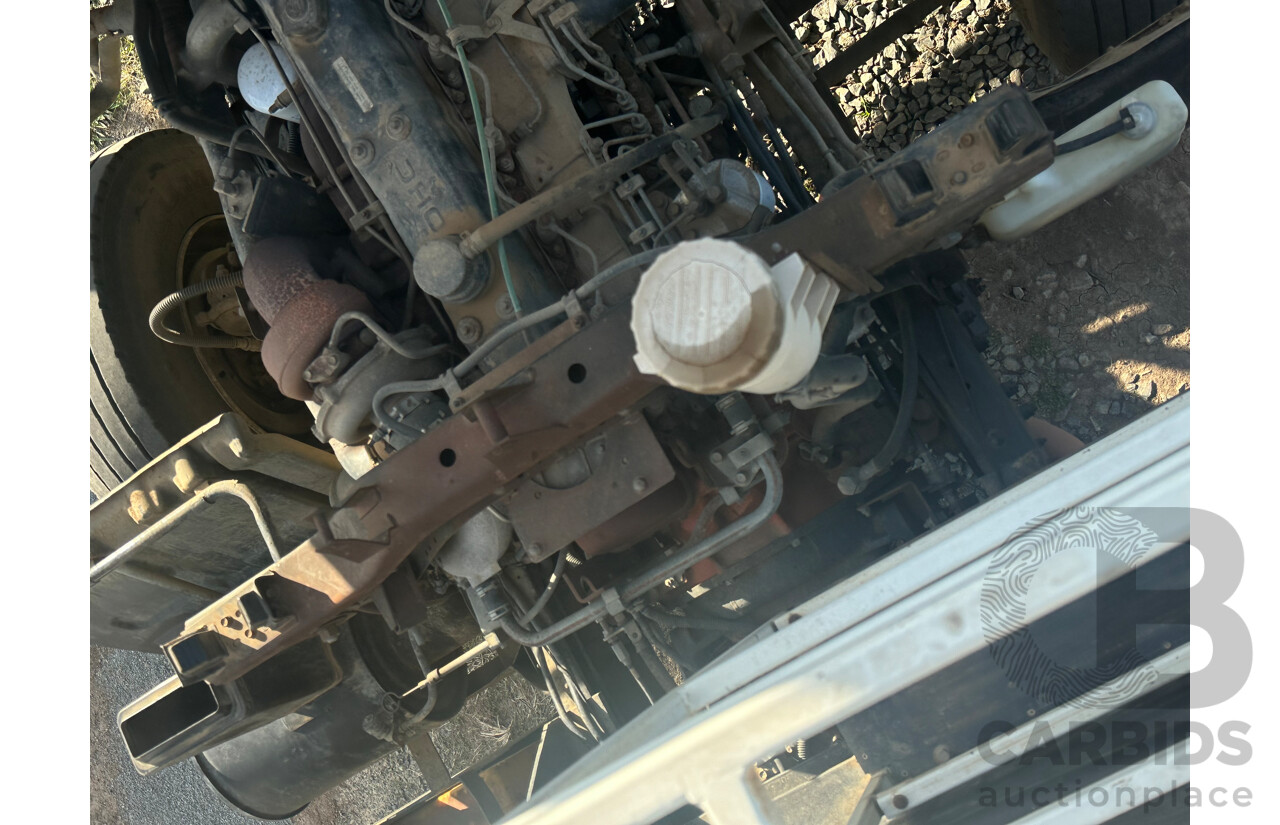

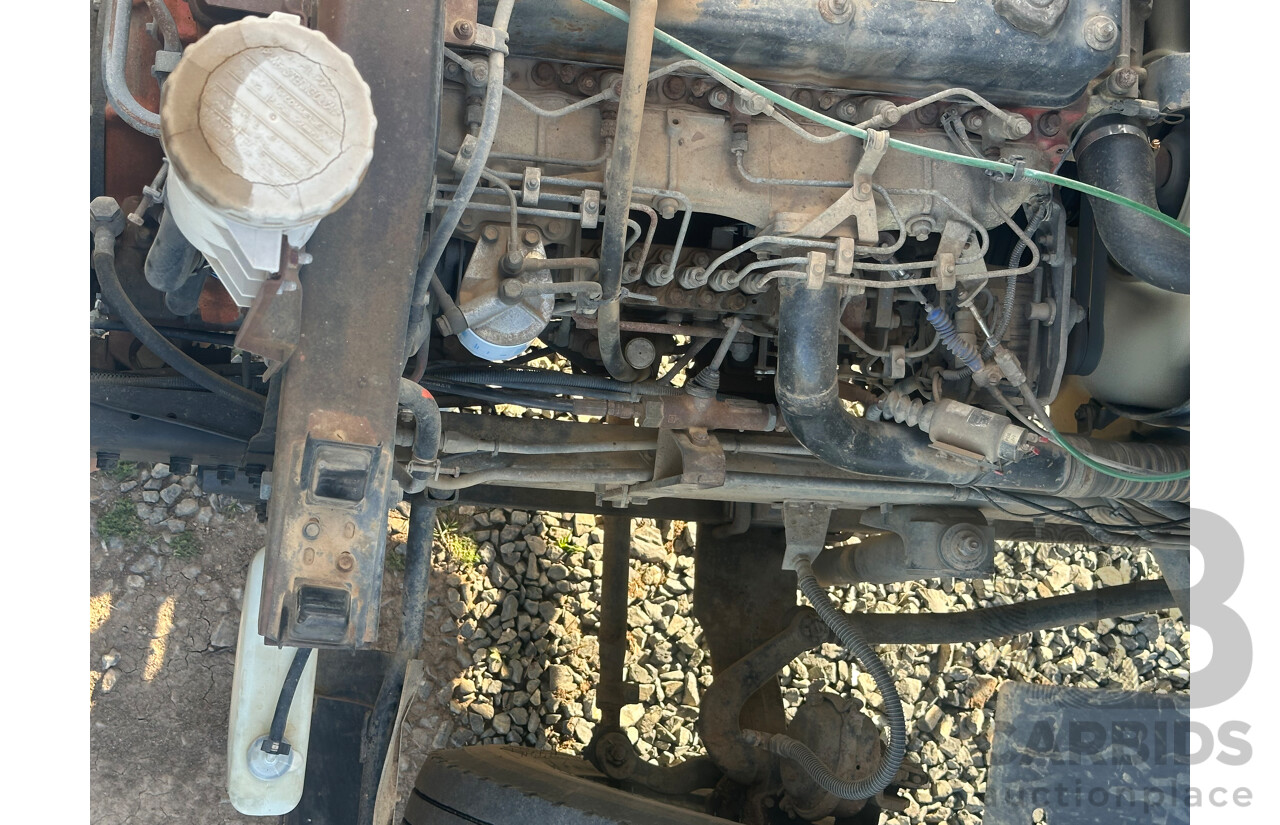

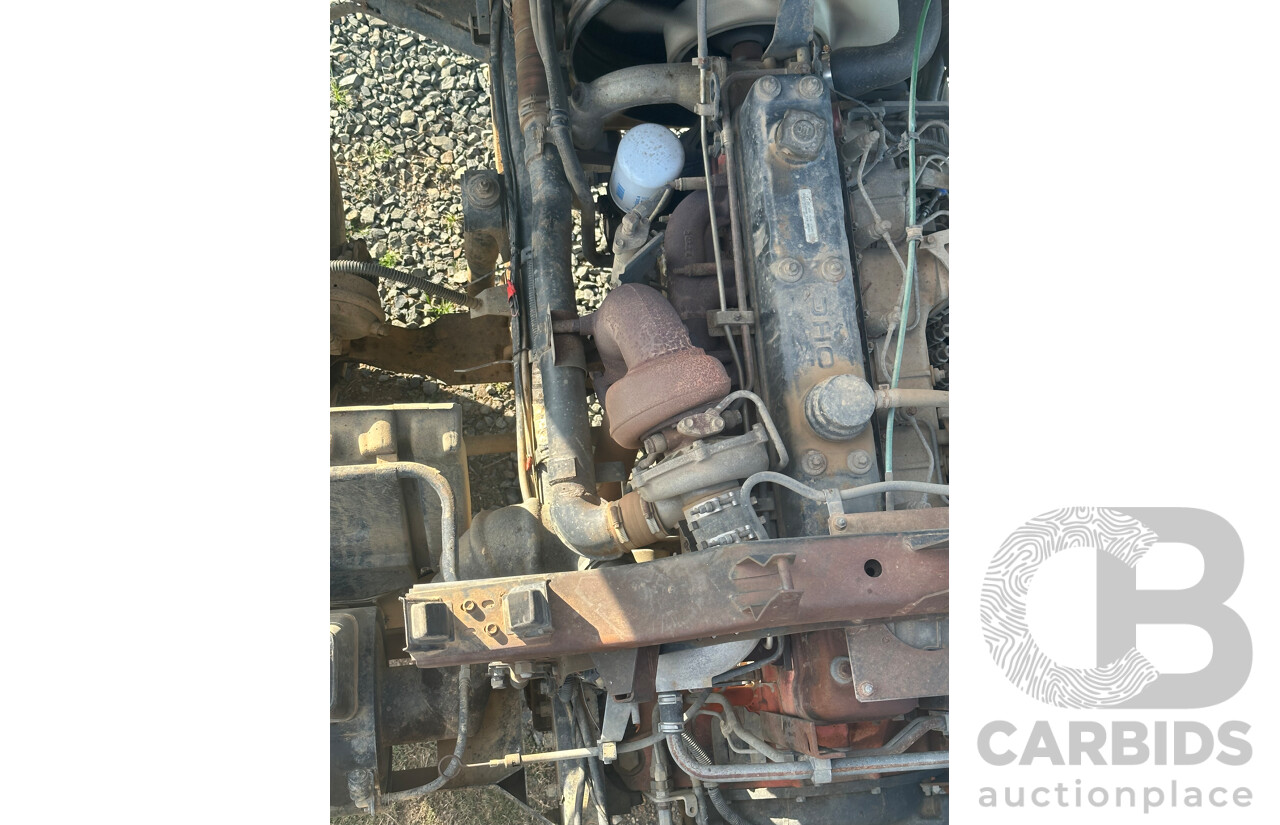

ENGINE: SITEC 275 (ISUZU 6SD1-TC)

• Type: 6 cylinder, 4 stroke, SOHC, direct injection diesel.

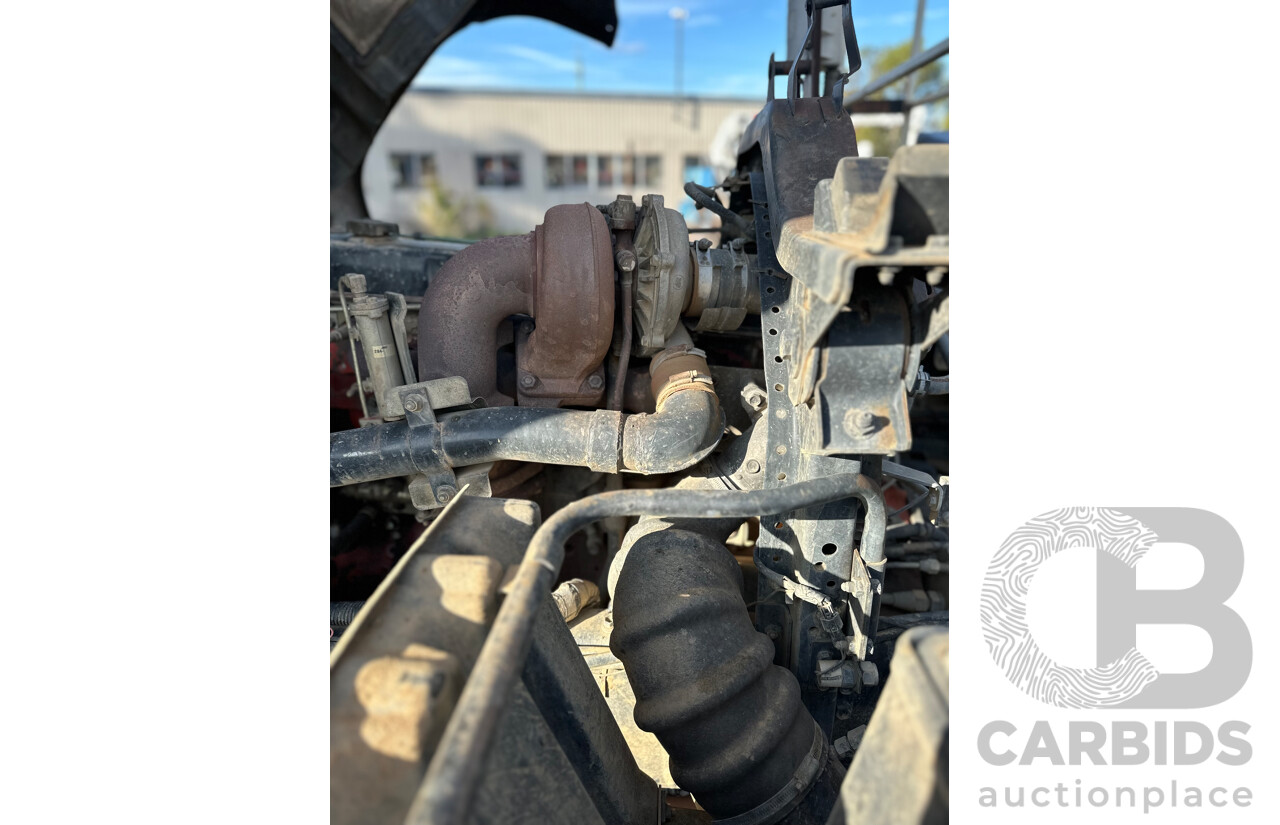

• Variable Geometry Turbocharger (VGT) and air-to-air intercooler
• Adjustable roller type rocker arms.
• Displacement: 9,839 cc
• Compression Ratio: 16.0:1
• Bore x Stroke: 120 x 145 mm
• Max power (DIN NET): 206 kW @ 2,000 RPM
• Max torque (DIN NET): 1030 Nm @ 1,400 RPM
• Emissions Standard: ADR 80/00 (Euro III)
• Plate type oil cooler. 28.4 L oil capacity.
• Separate full flow main filter and bypass oil filter.

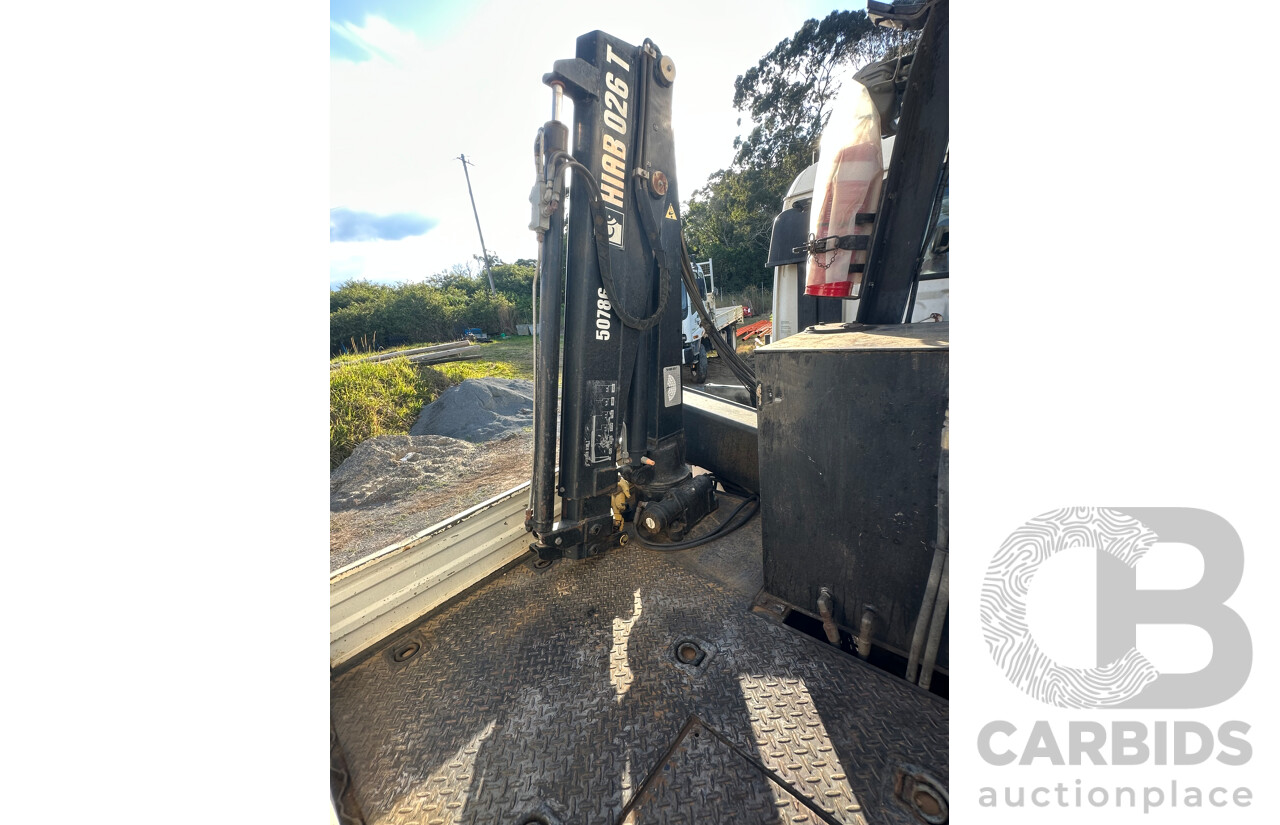

HIAB 026T    Lifting

• 1,820 kg
• 1,065 kg
• 725 kg
• 550 kg
• 430kg


COOLING SYSTEM

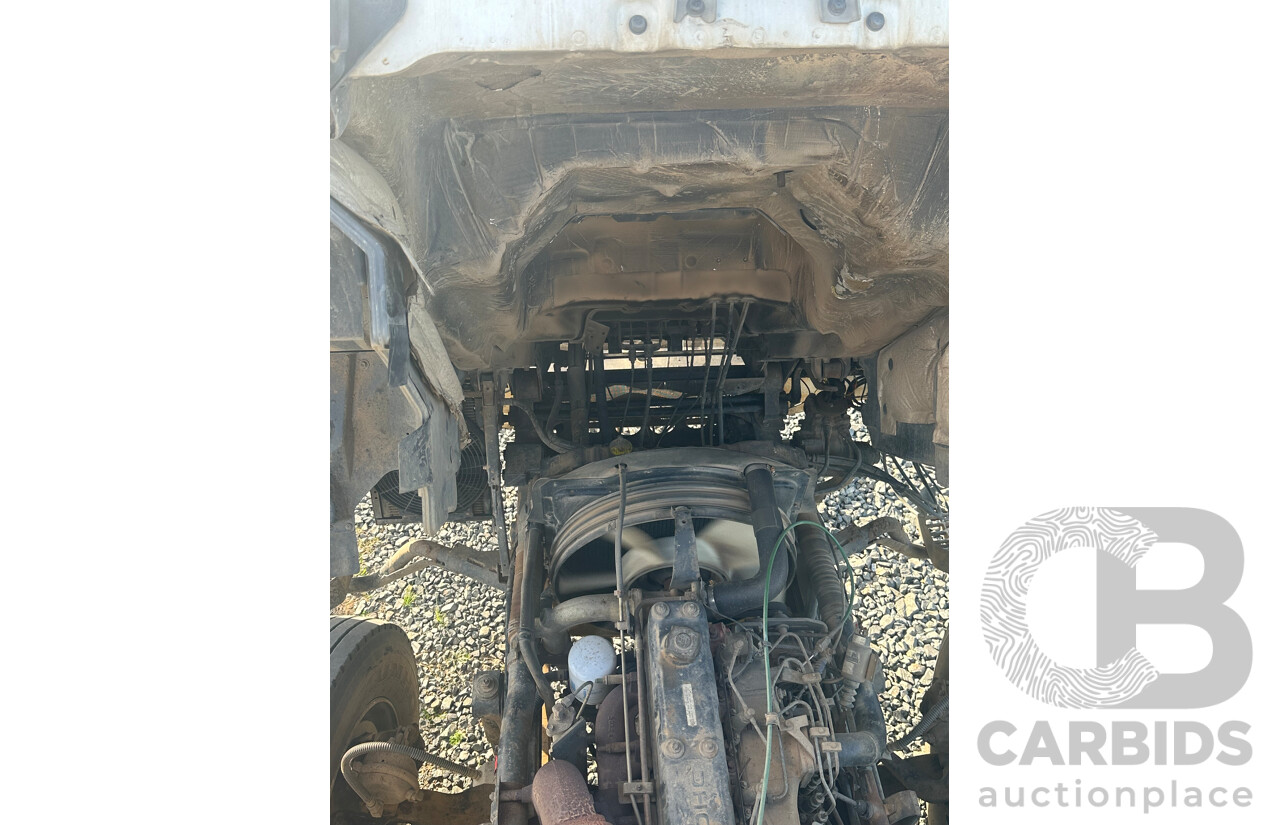

• 6 blade, 600 mm diameter cooling fan with thermostatically controlled viscous clutch. Dual drive belts.
• 29 L coolant capacity.

FUEL SYSTEM

• Denso common rail fuel injection. Separate fuel filter and water separator.

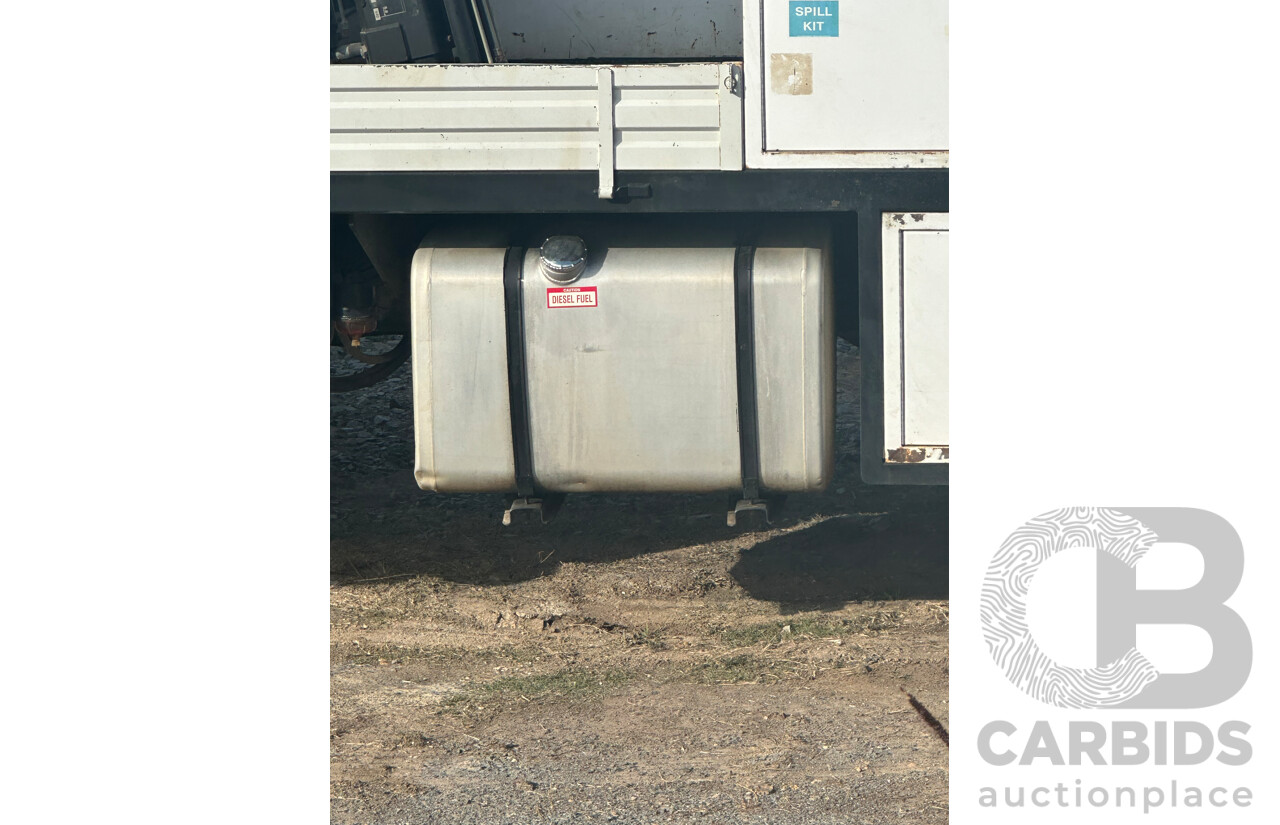

• 400 L aluminum tank (Long models).
• 180 L steel tank (FVZ Medium, PTO & Auto models).

TRANSMISSION

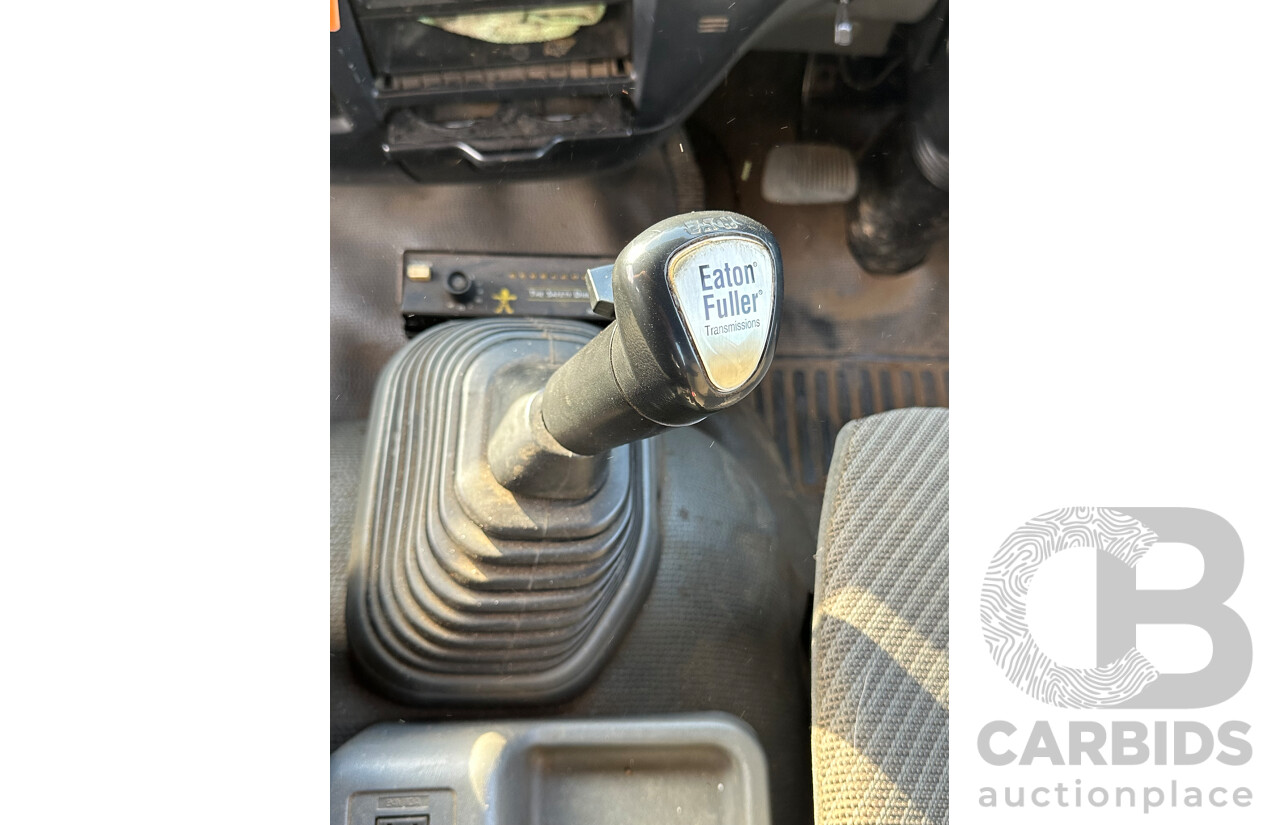

• EATON RT-7608LL 10 Speed manual
• 10 forward speeds. Direct drive.
• Repeat ‘H’ shift pattern.
• 11.1 L oil capacity.
• SAE PTO opening on RHS and bottom of transmission case.

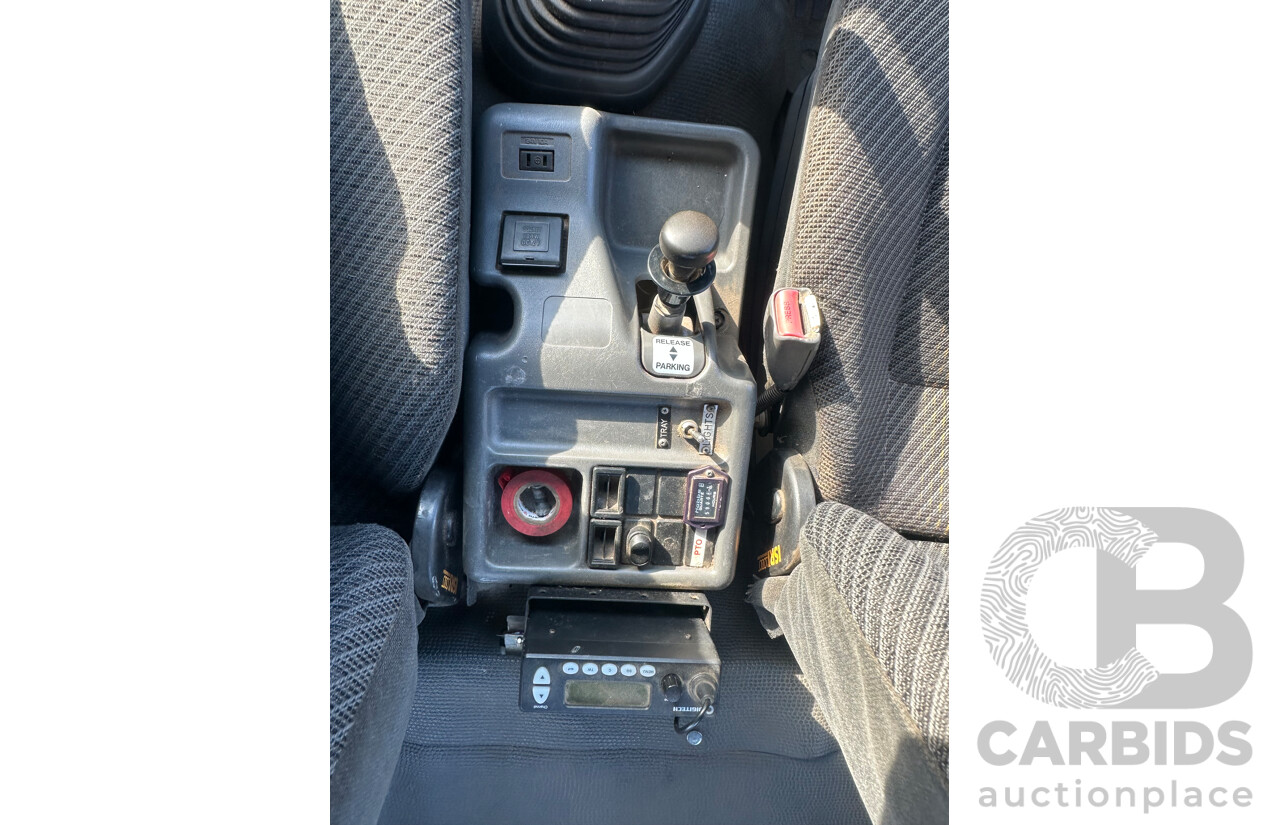

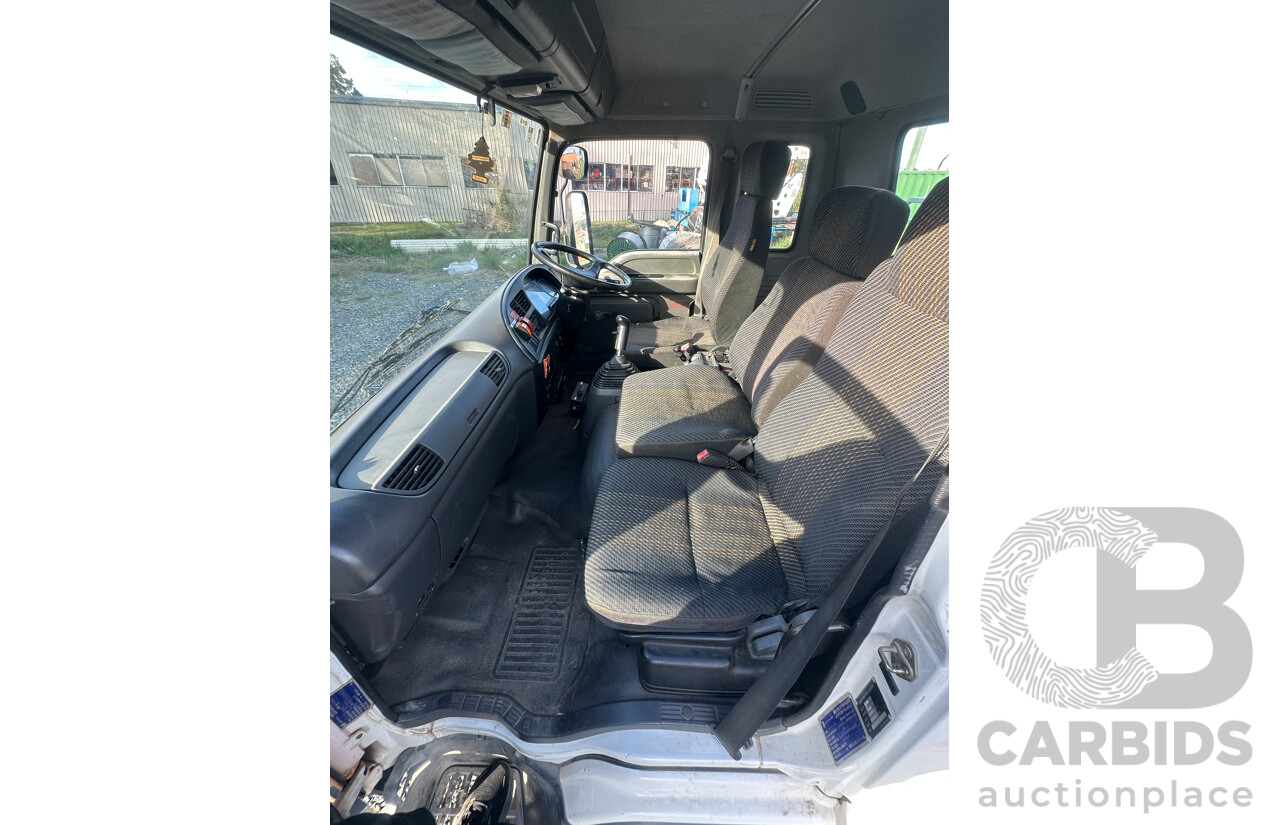

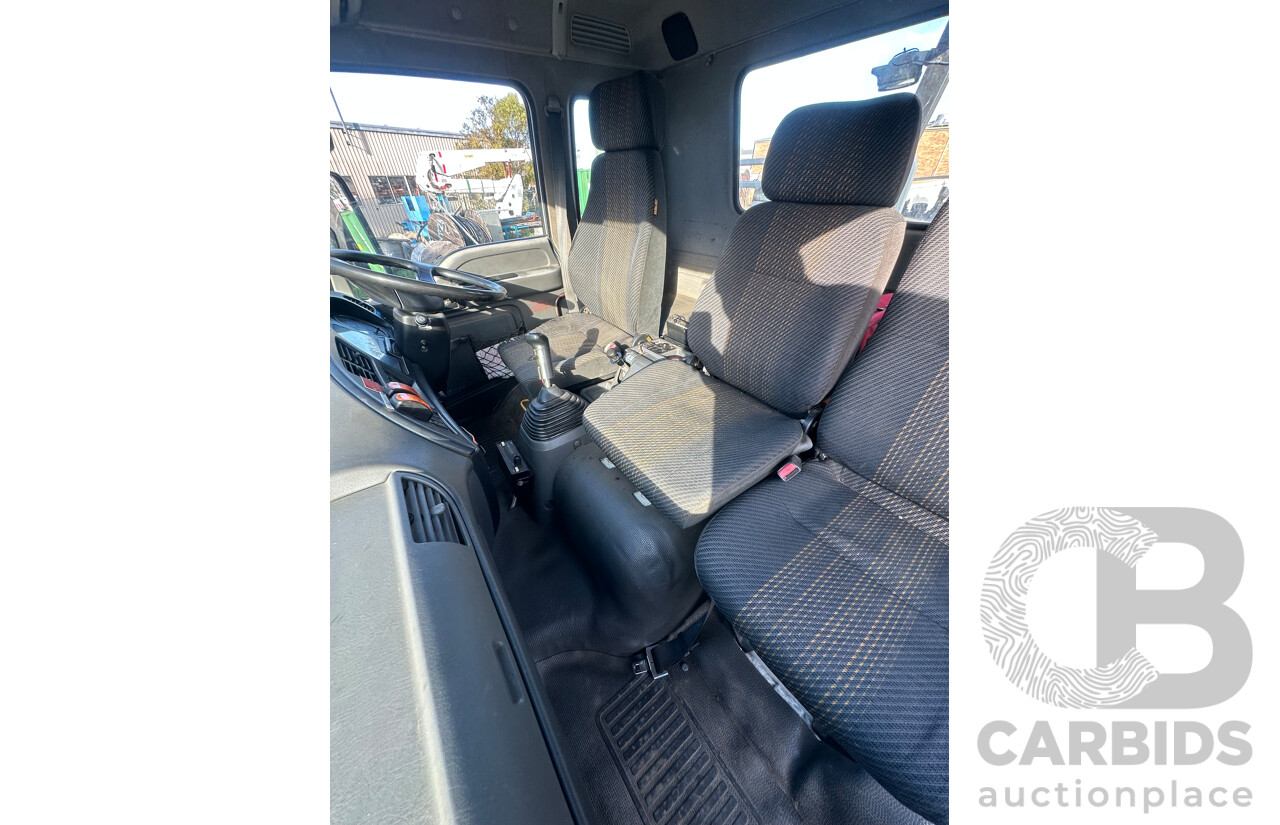

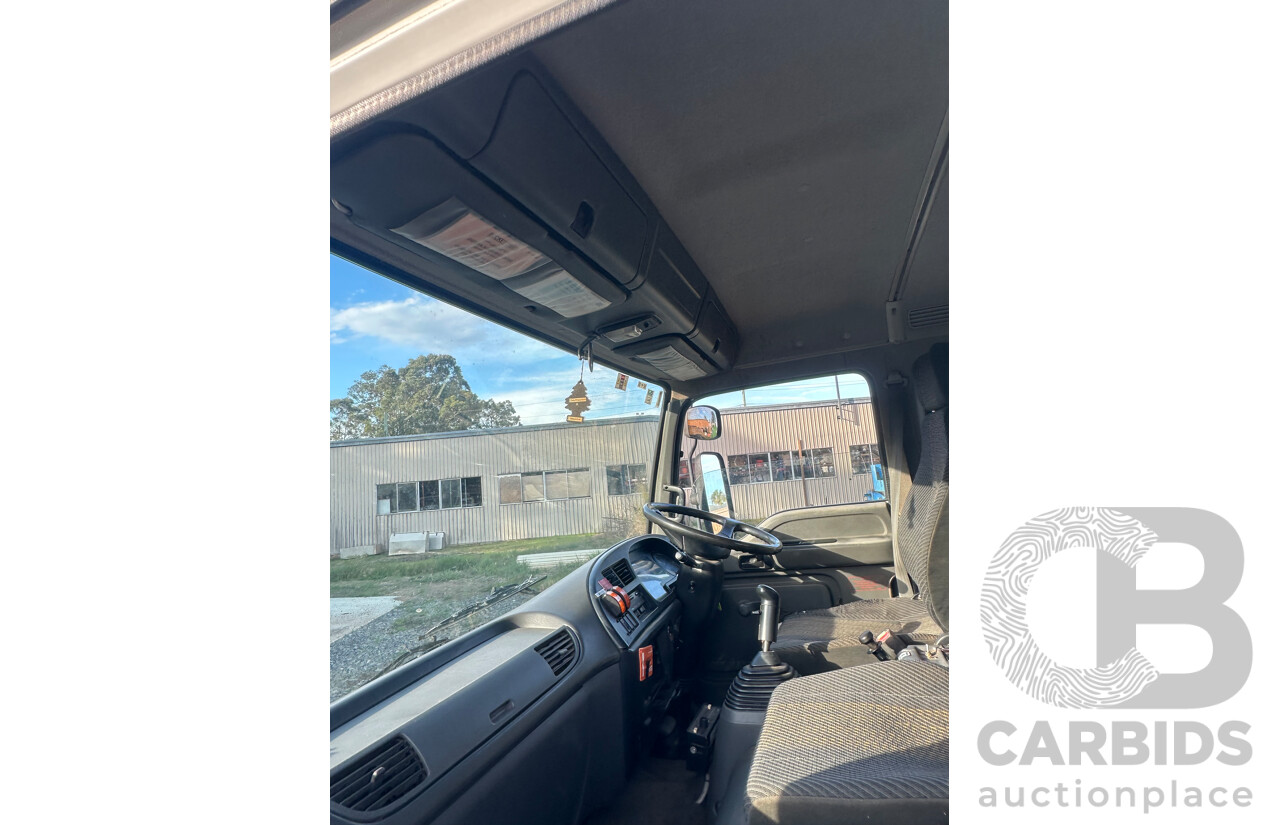

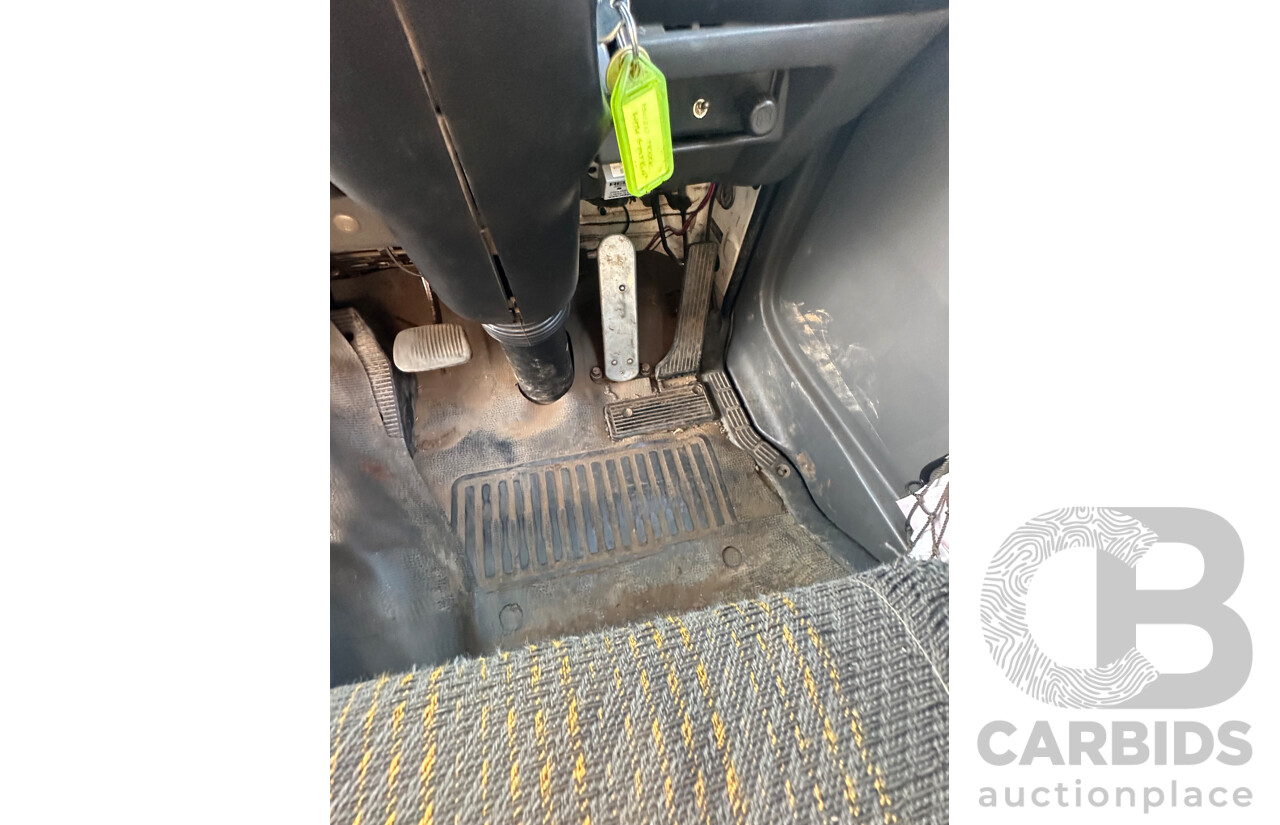

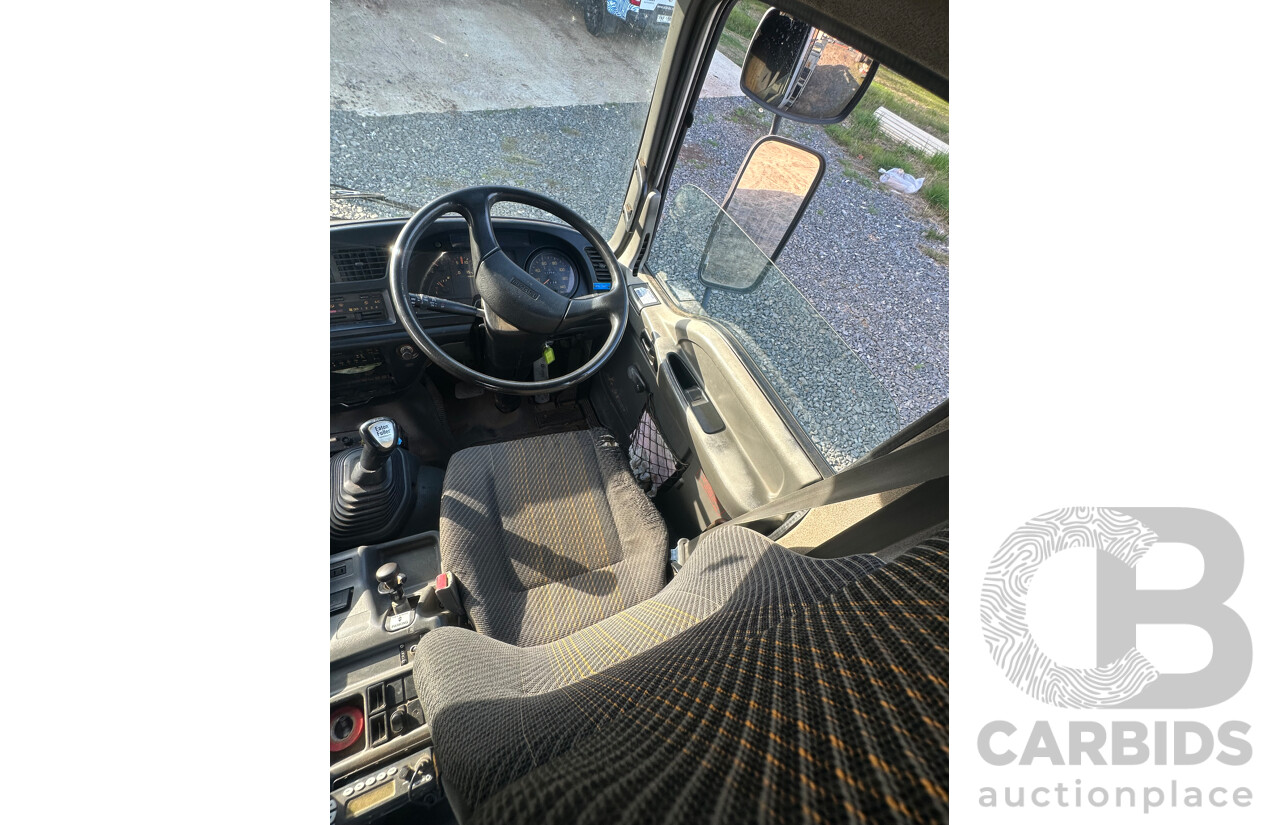

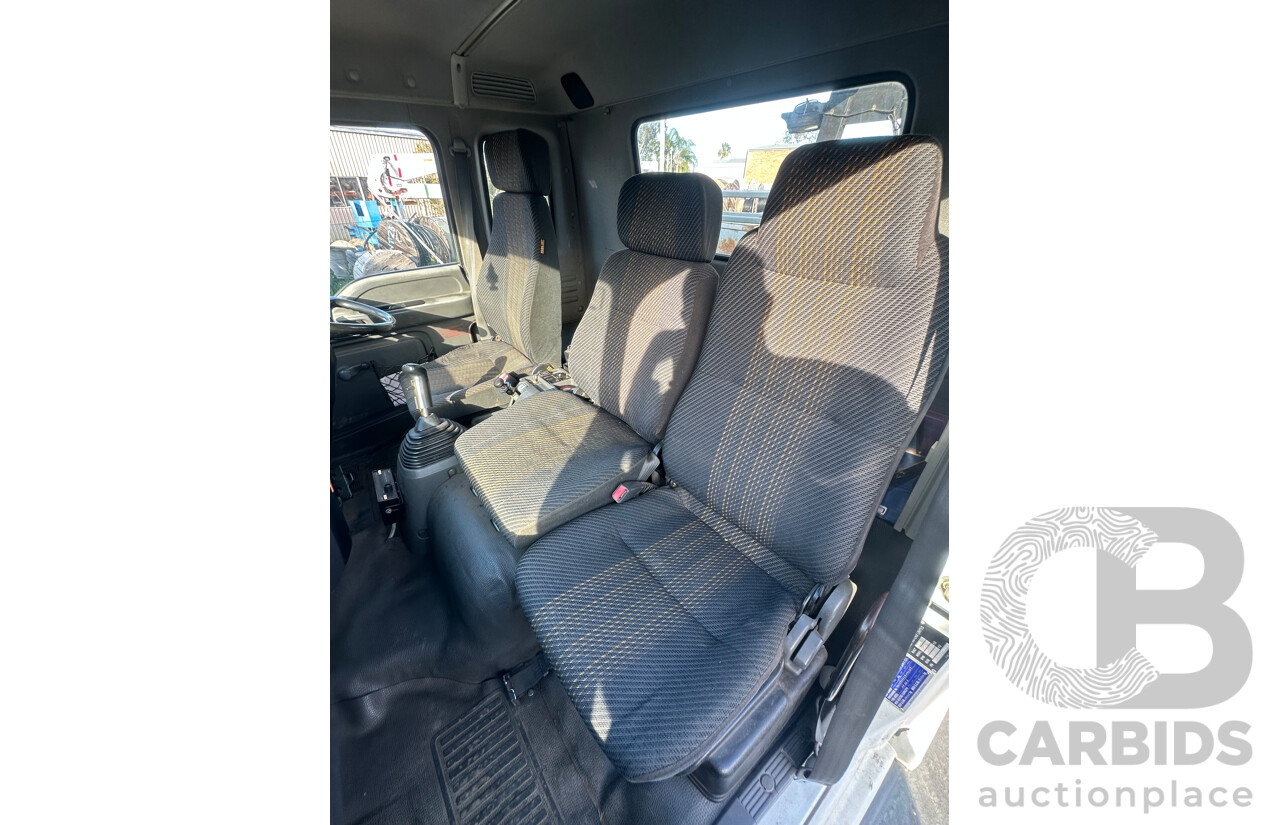

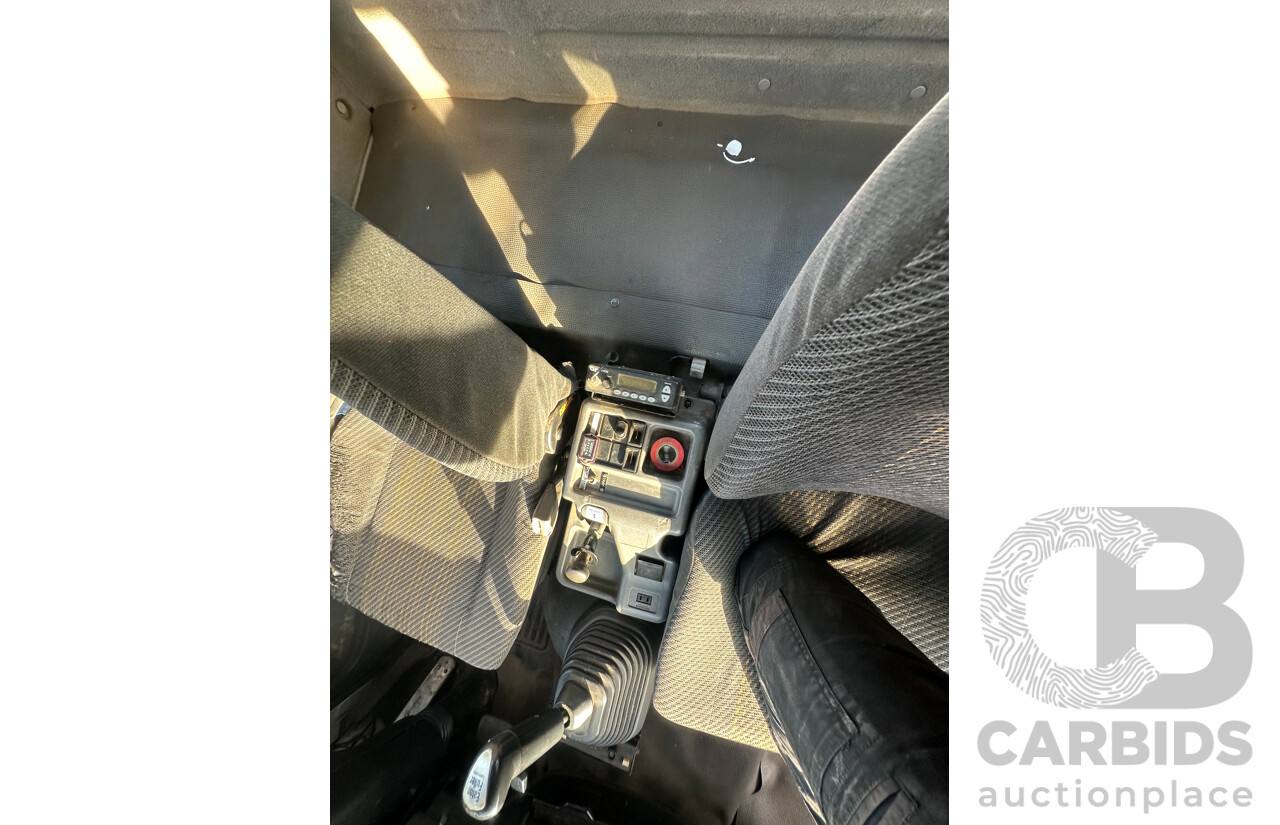

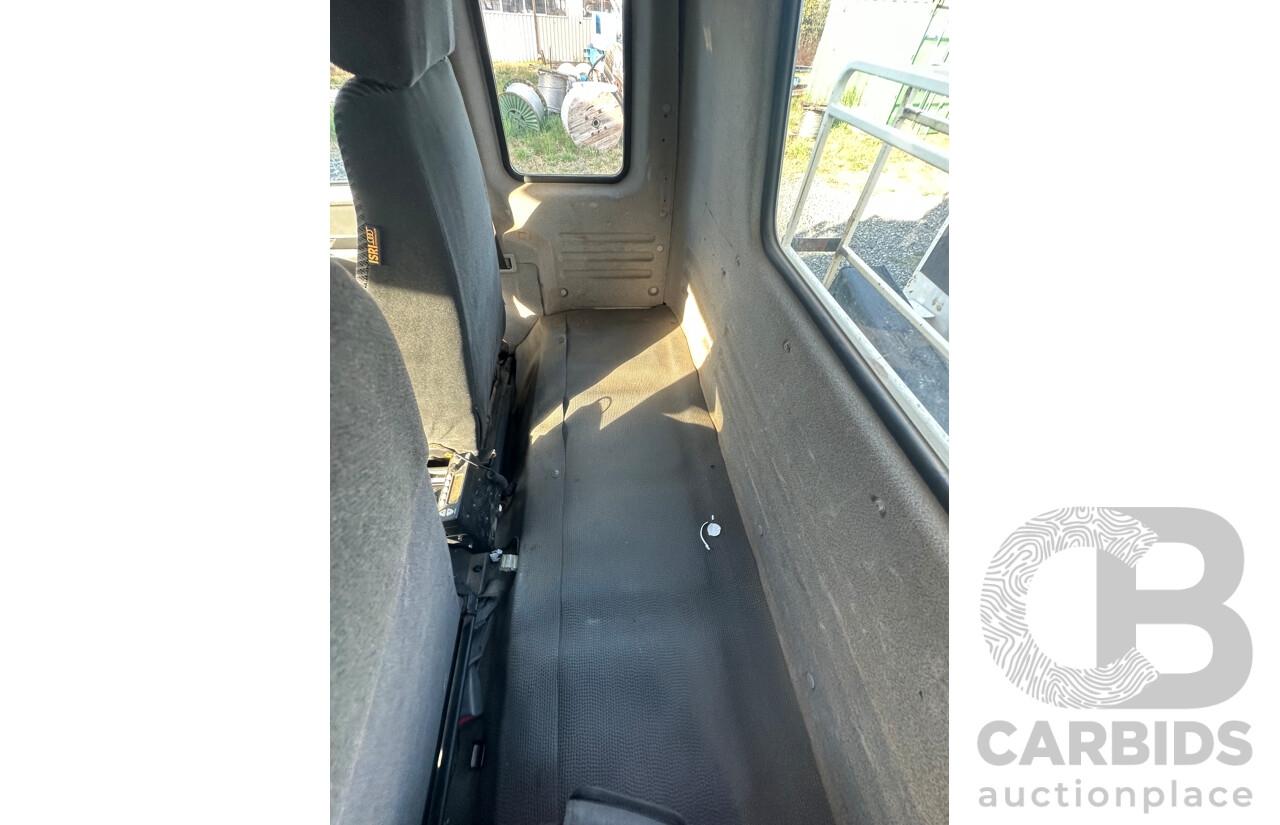

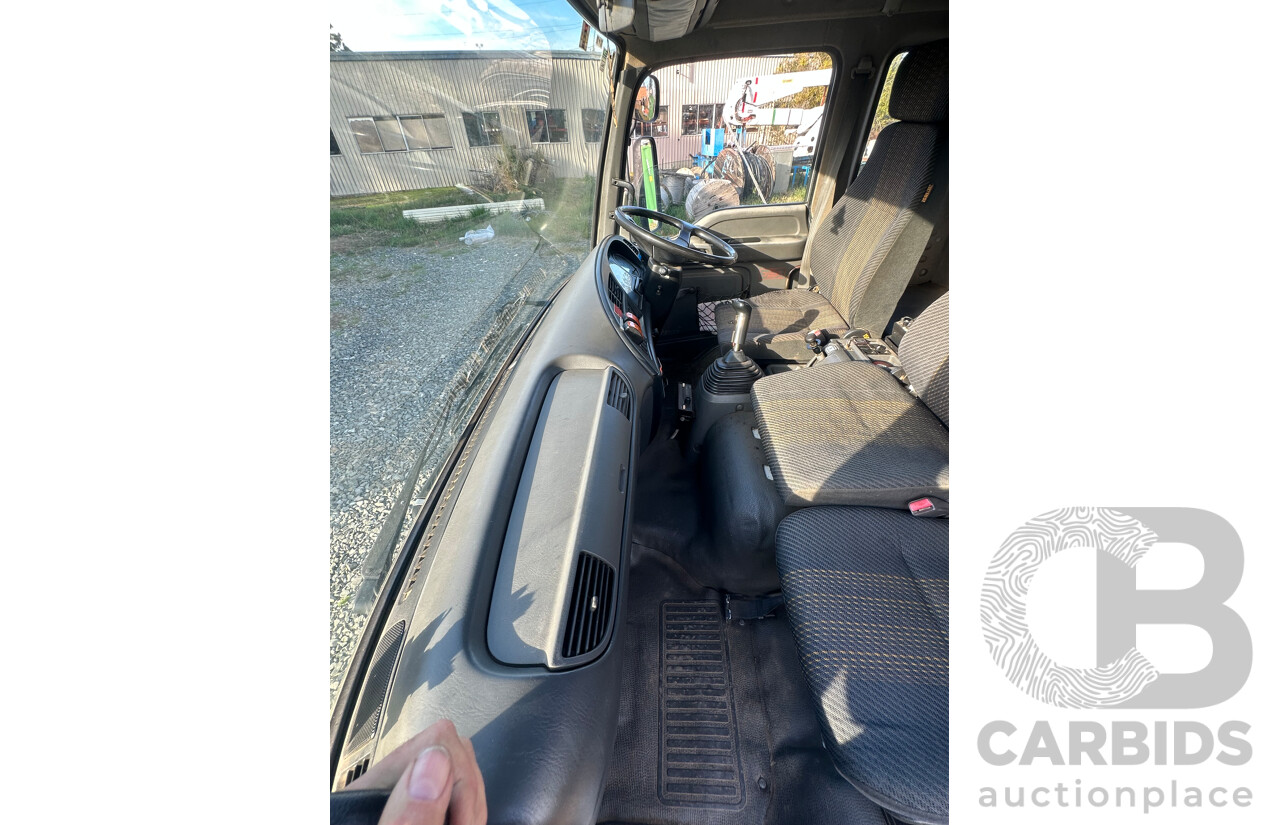

CAB INTERIOR

• Isringhausen ISRI 6500/517 air suspension driver’s seat, auto weight adjustment to 130 kg.
• Reclining passenger bucket seat. Centre seat with folding seat back
• 12 Volt, 100 Watt and 24 Volt, 2 pin accessory sockets located in centre console.
• Electric windows.
• Central locking with remote keyless entry.
• Centre facia pullout drinks holder. Lockable centre storage compartment.
• Heater/Demister with 4-speed fan and outlets for windscreen, side windows, face and floor.
• Standard fully integrated air conditioning.
• Remote seek/volume and mute switch located on dash to right of steering wheel.

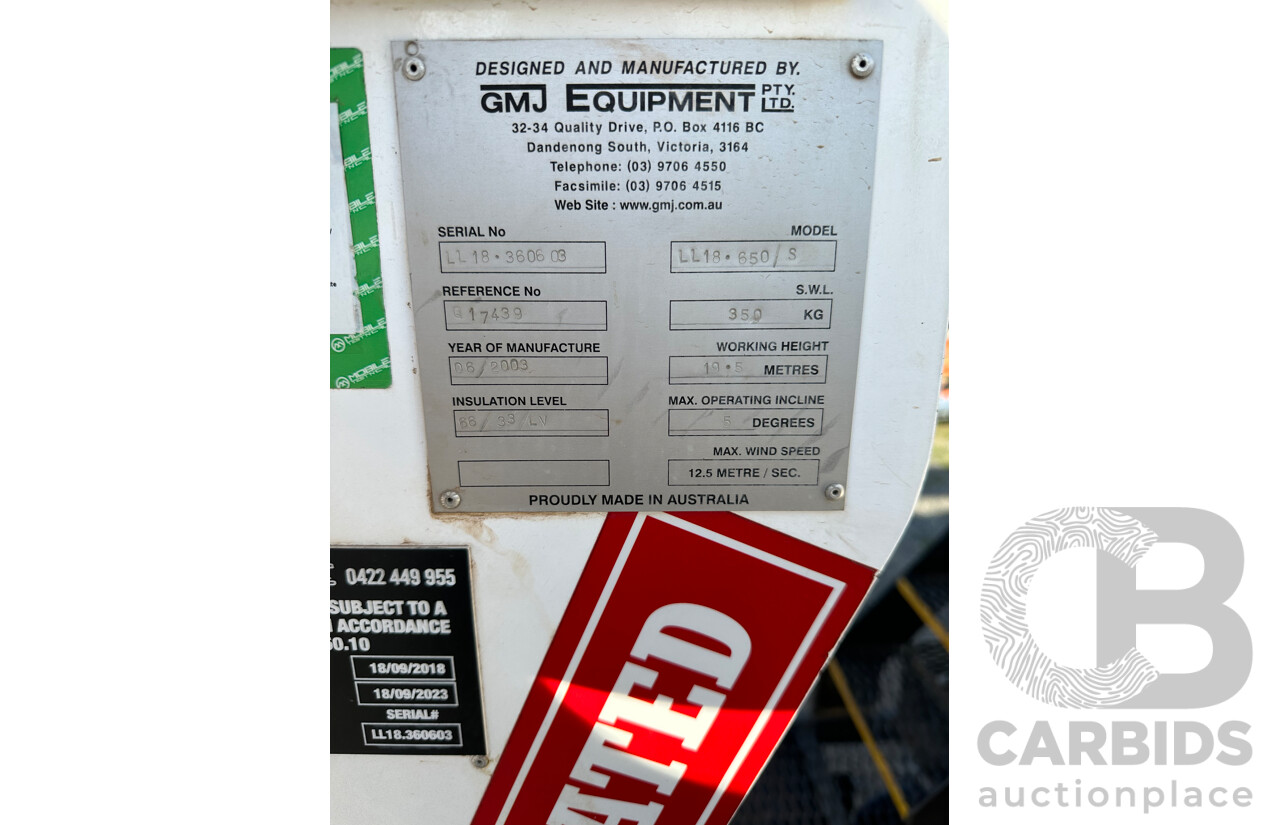

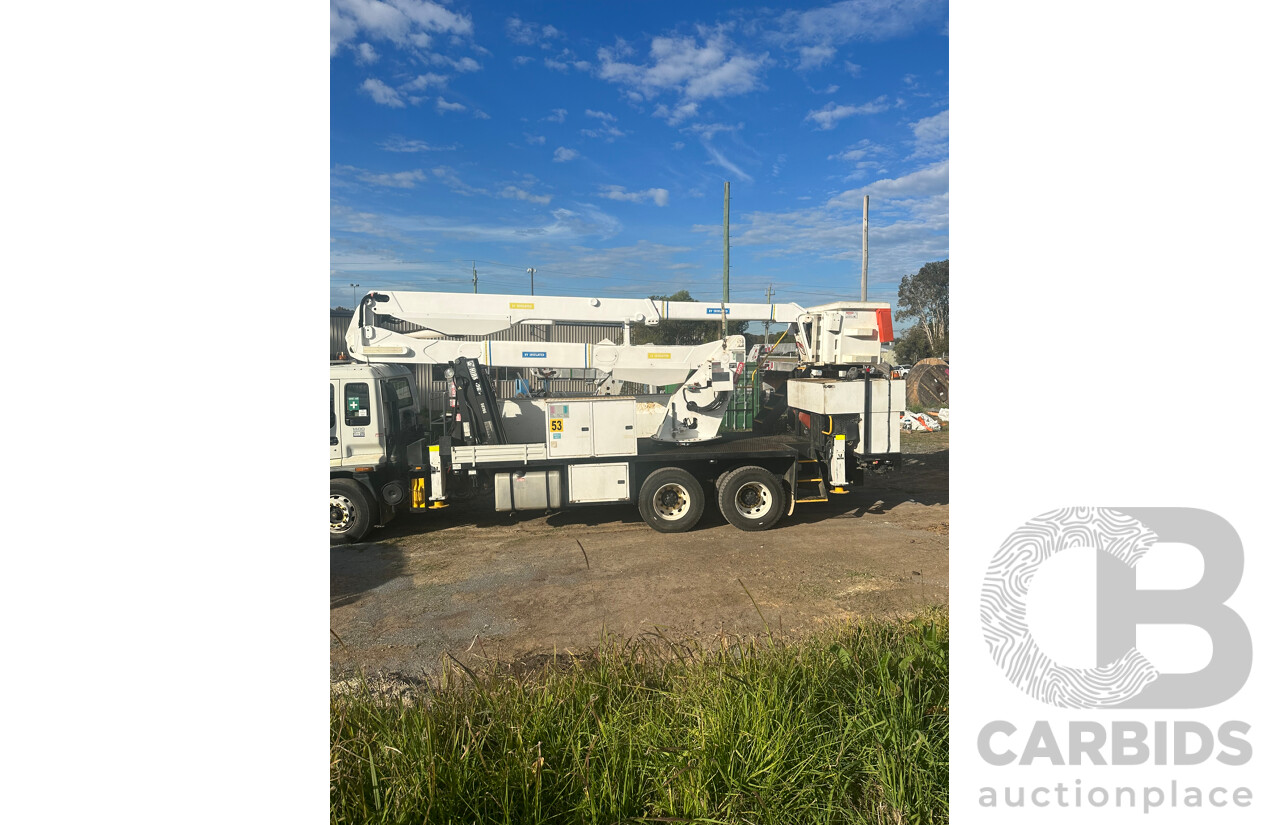

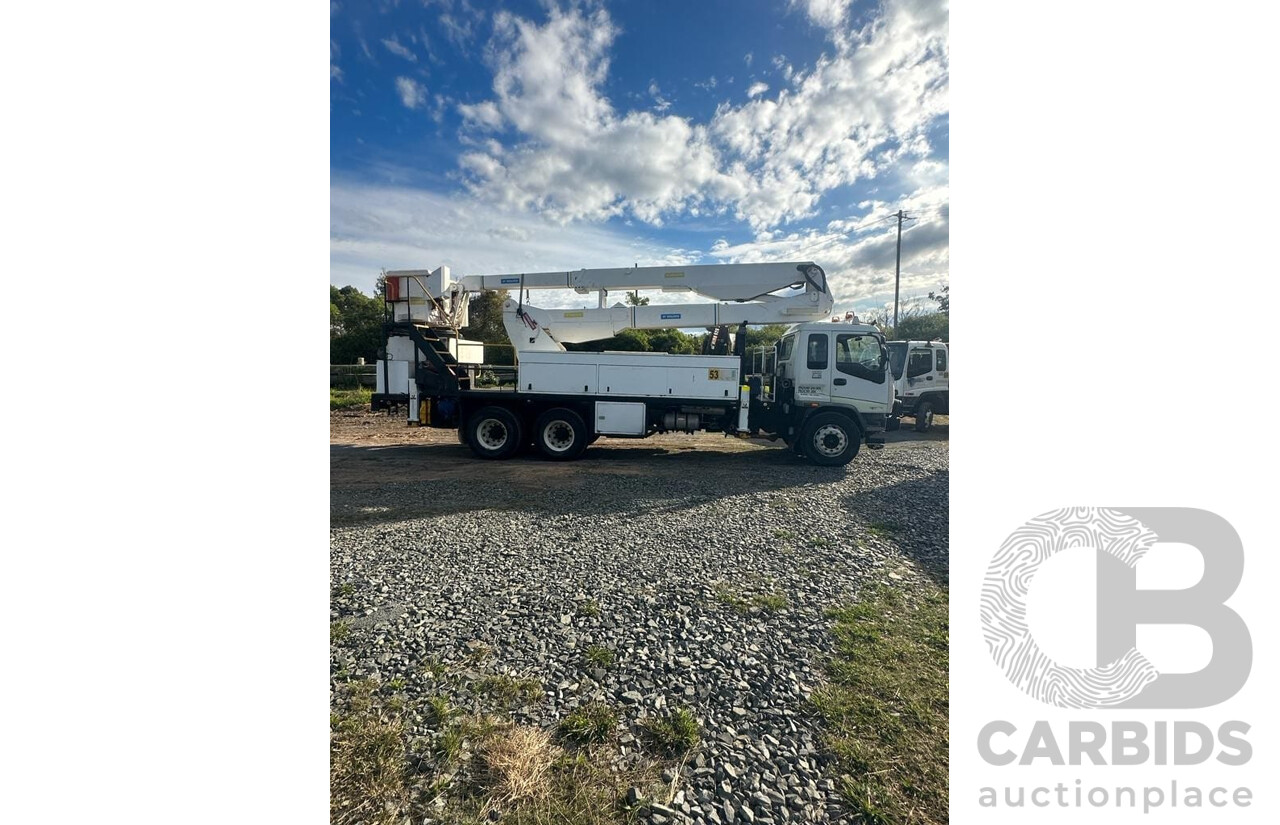

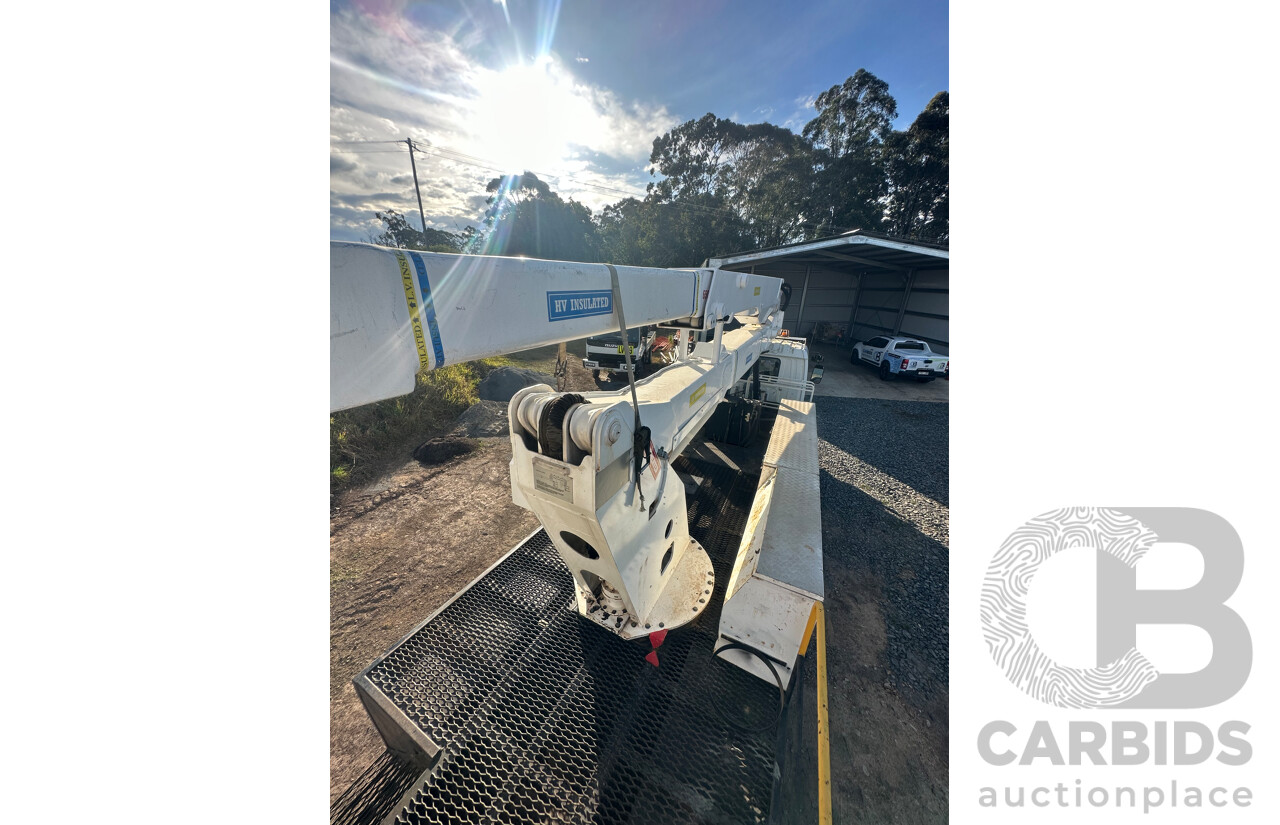

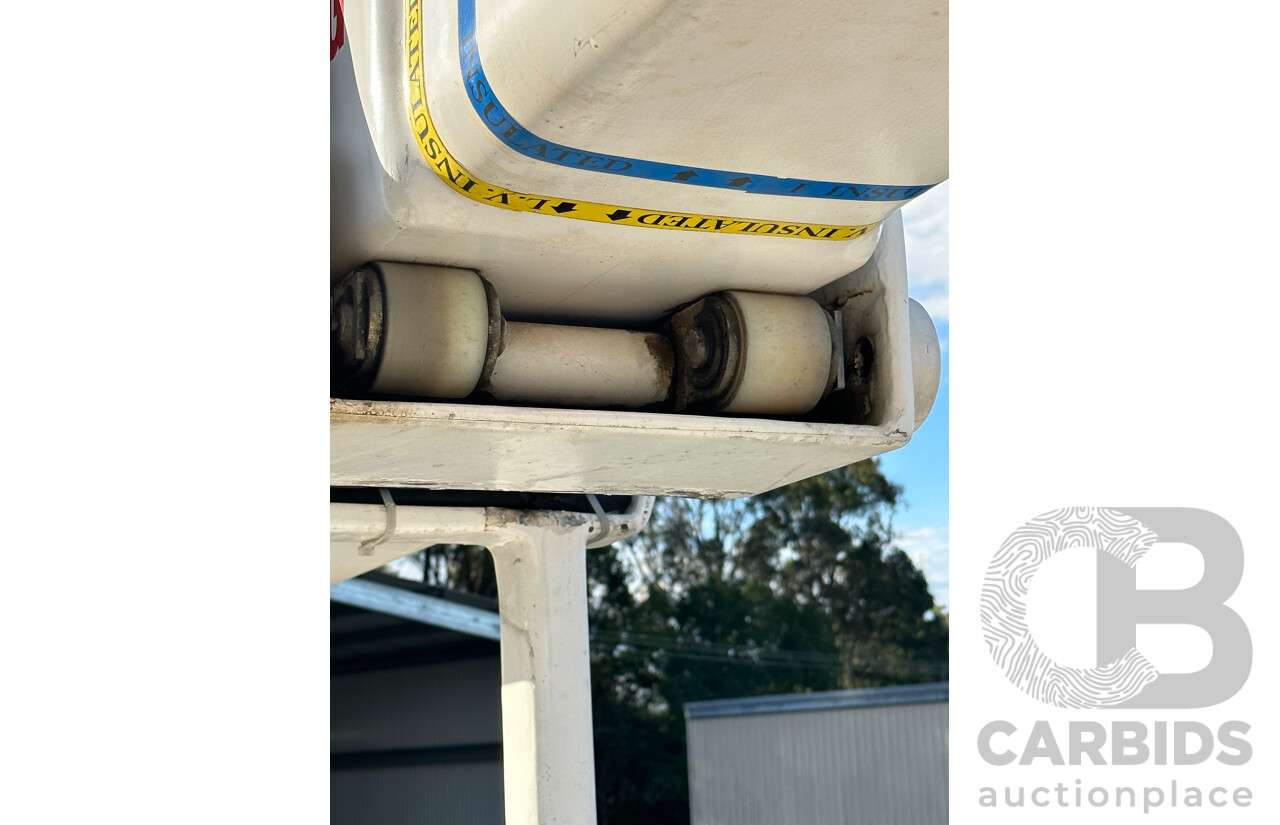

TECHNICAL SPECIFICATION & FEATURES

• Model LLF19-350
• Boom configuration type Articulated / telescopic / fly

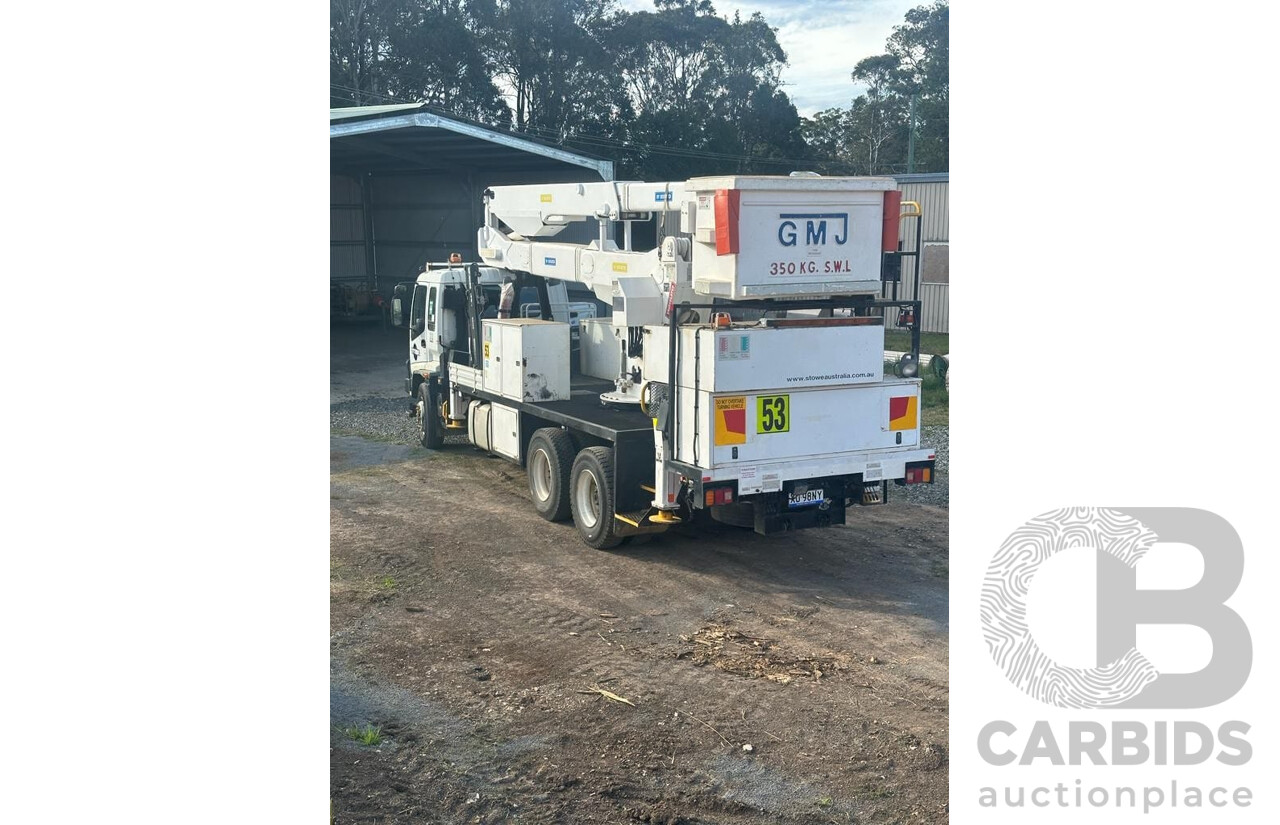

• Safe working load 350 kg S
• With basket rotator 325 kg O

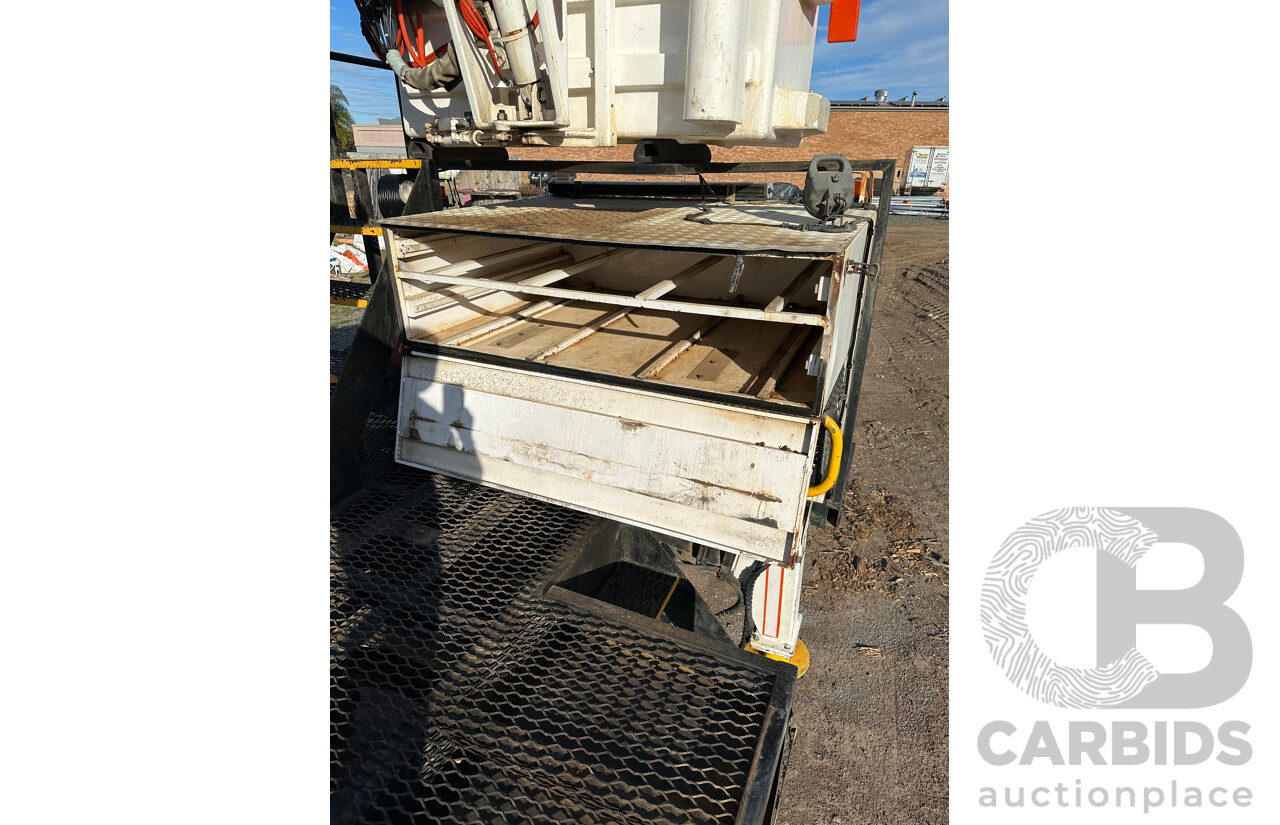

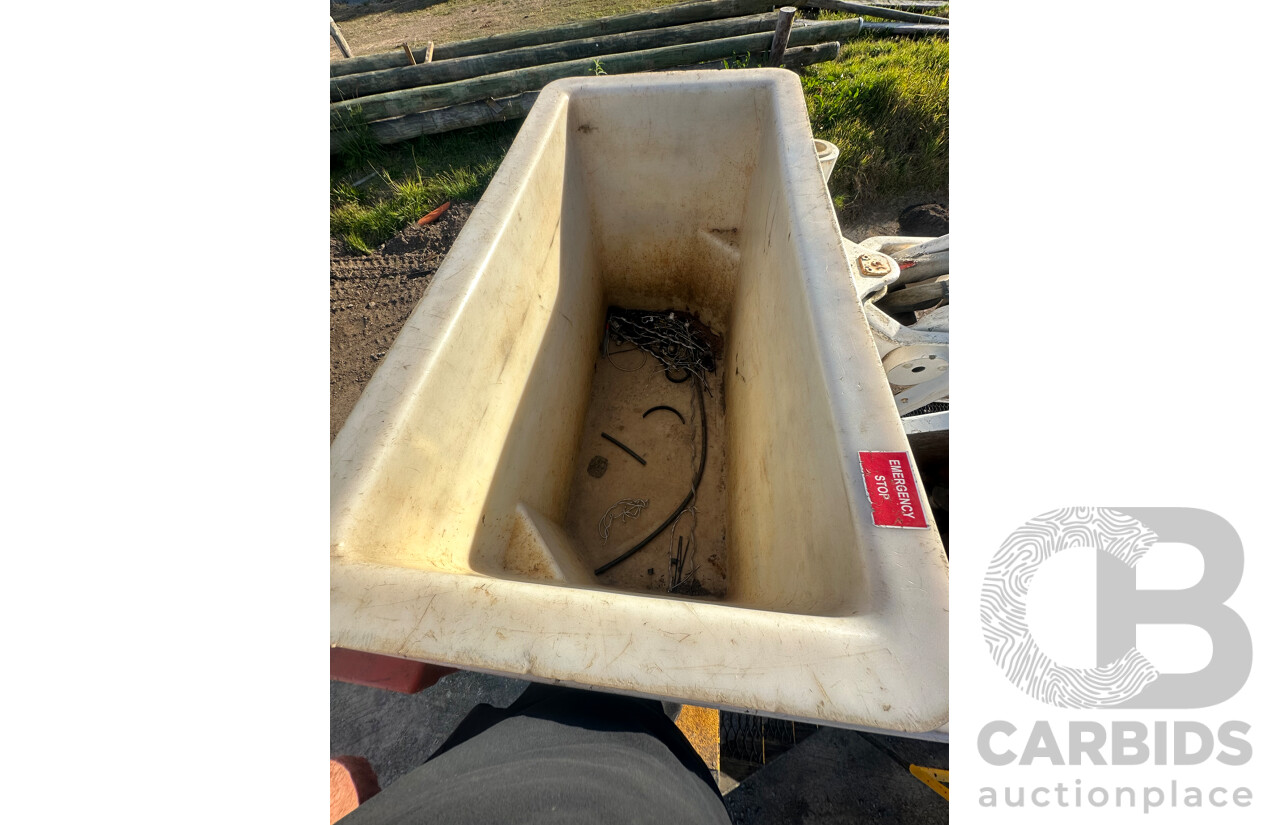

• Basket construction Fibreglass - Flame retardant to ASTM D635
• Working height 19.5 m
• Floor height 18.0 m
• Reach 12.4 m
• Chassis insulation rating
• 33 kV - Dry S
• 33 kV - Wet O
• Basket operator insulation rating 132 kV - Dry S 66 kV - Wet O
• Chassis insulation effective length 0.5 m
• Basket operator insulation effectiv length 2.0 m
• Low voltage insulation All metallic portions about 4.5 m

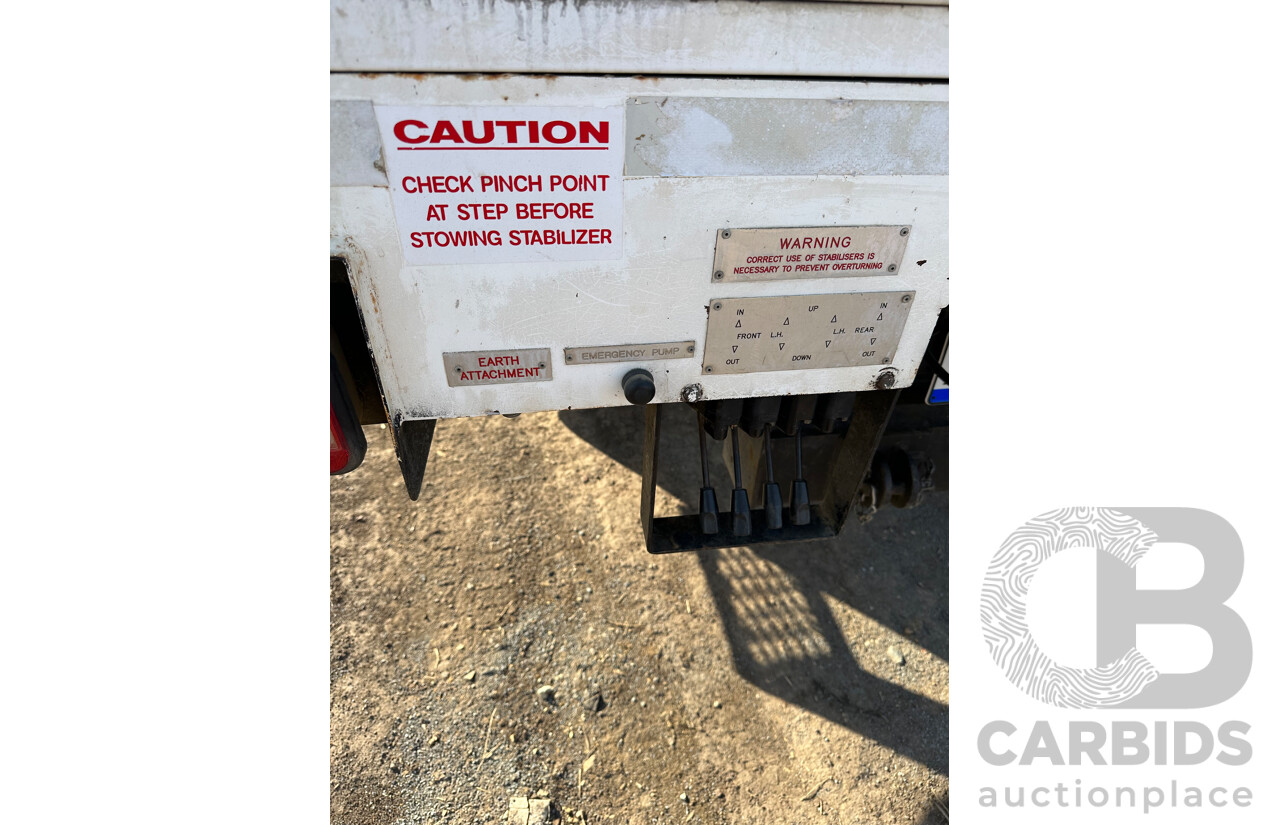

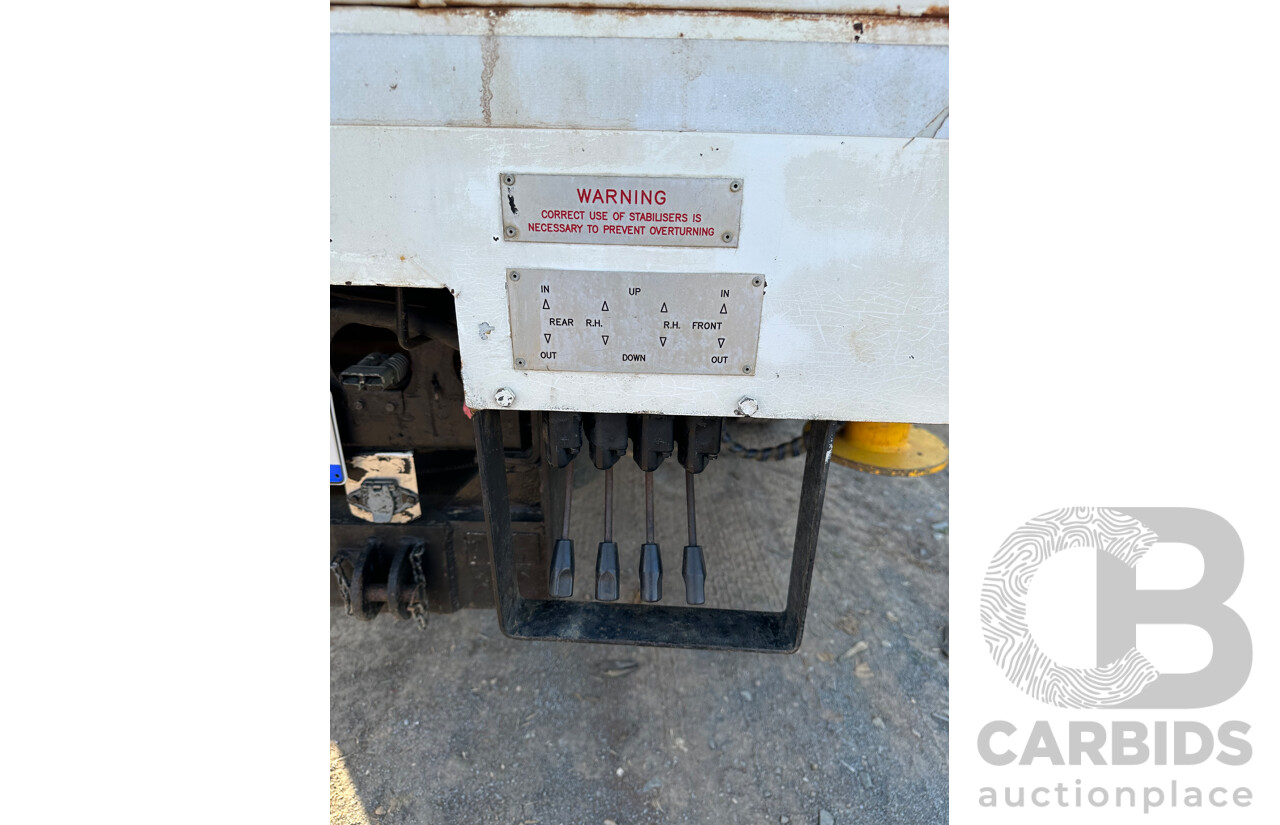

STABILISATION

• Front type Hydraulic in/out – up/down
• Rear type Hydraulic in/out – up/down
• Automatic stabilisation Automatic stow/engage & level at the touch of a button
• Max. stabiliser spread 4.4 m
• Ground penetration 0.25 m S0.40 m
• Max. operating chassis slope ± 5°
• Max. stabiliser load 100 kN (10,000 kg) – Per pad
• Max. operating wind speed 12.5 m/s (45 km/h)

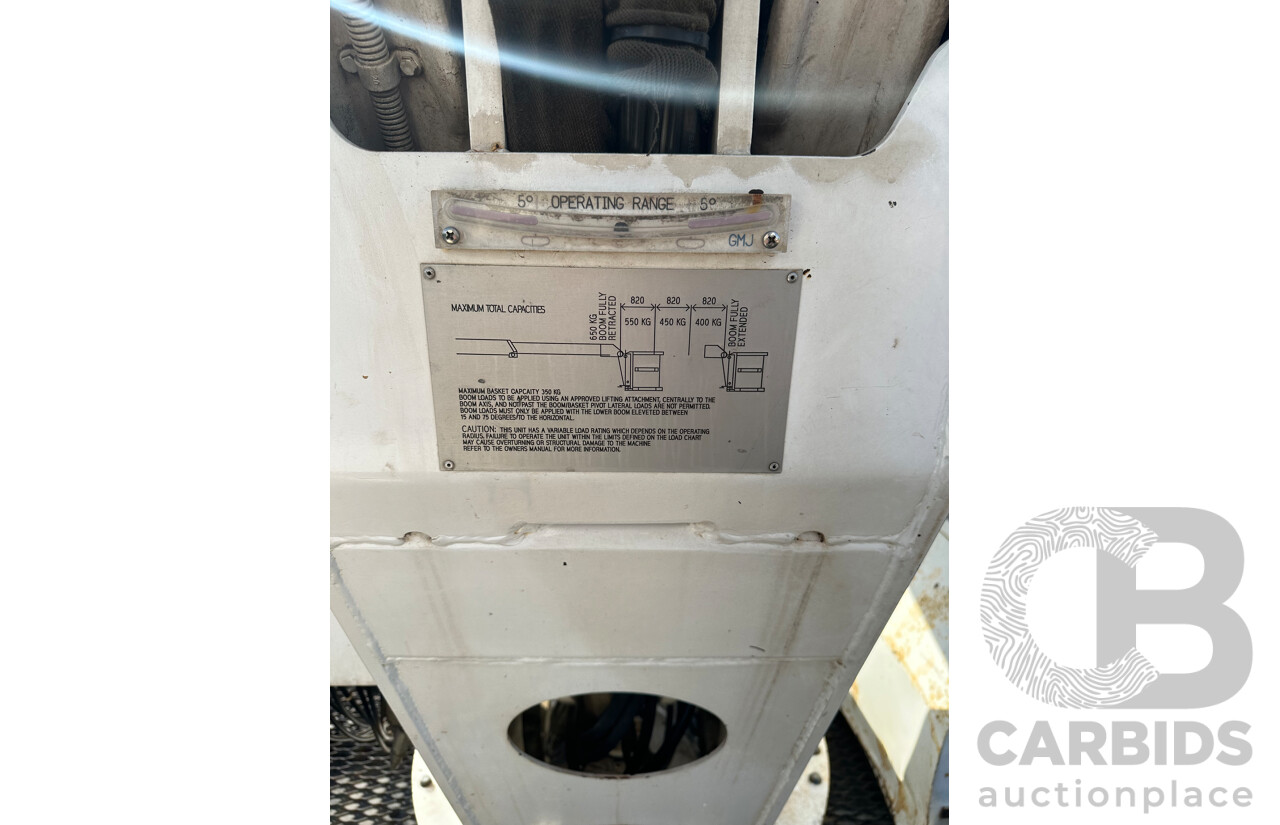

• Level indicators 3 off visible at stabiliser controls

SAFETY FEATURES

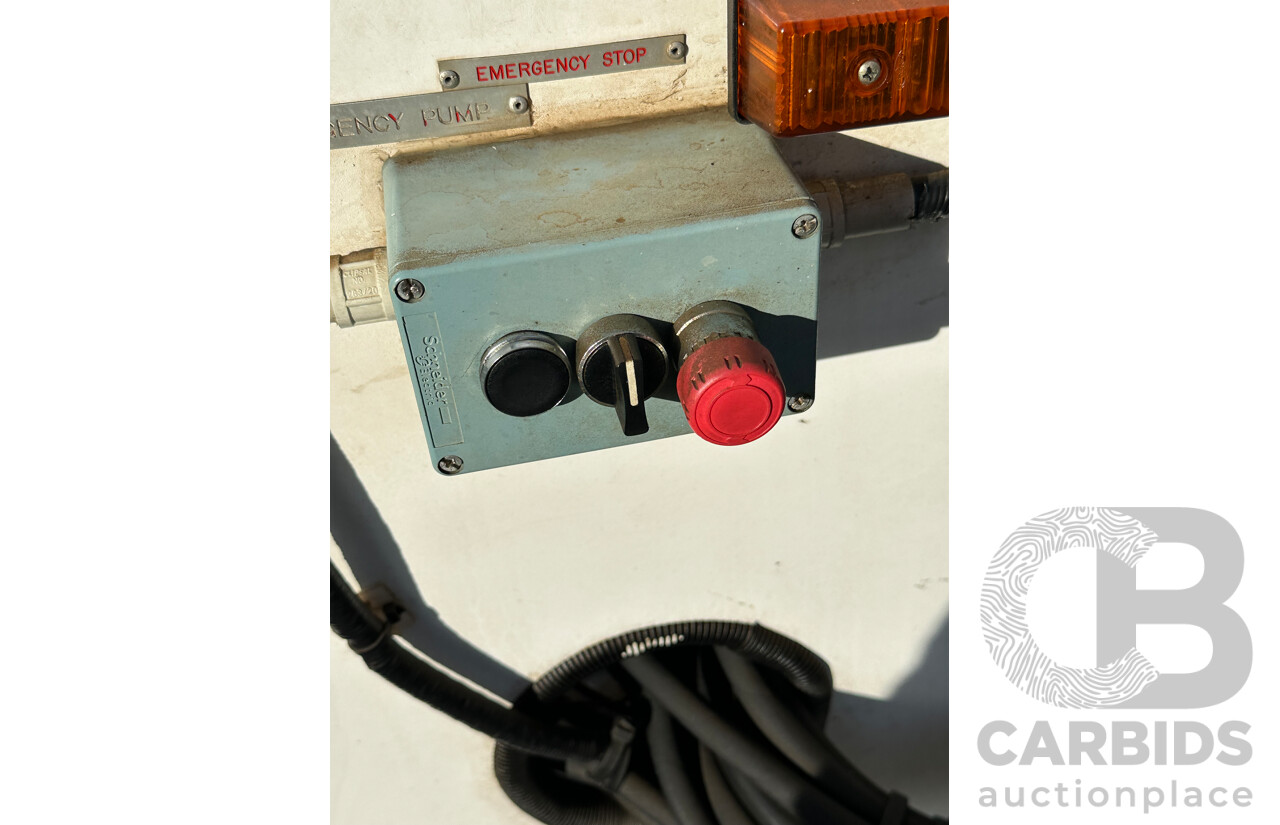

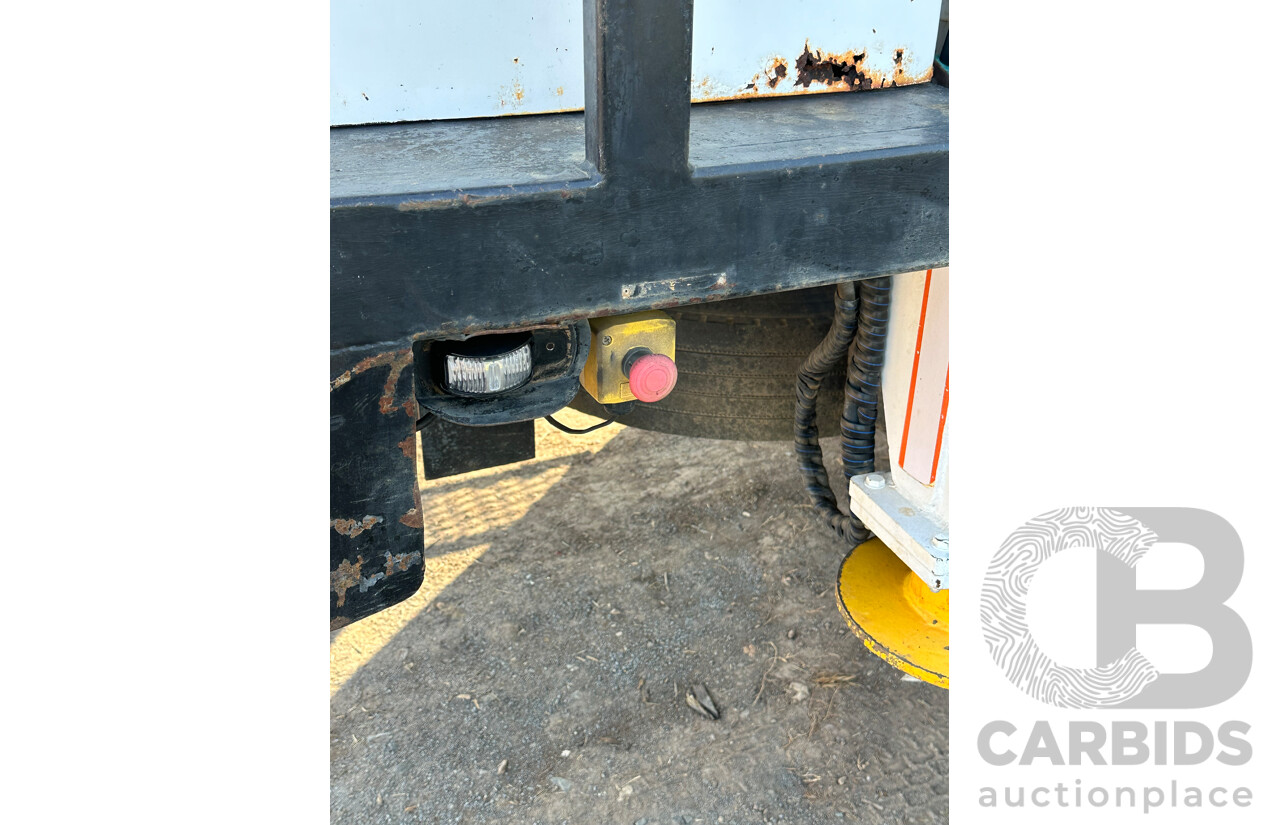

• Emergency stops located at all control locations with indication light to illustrate when active
• Over centre valves centre valves fitted to all cylinders to prevent unintended movement in the unlikely event of hydraulic hose failure
• Basket tilt Basket tilt function to allow retrieval of injured personnel in the event of emergency use
• Boom/Stabiliser interlock Boom/stabiliser interlock to prevent the operation of the booms without the stabilisers safely engaged
• Basket tie down interlock Prevents the ability to pack up the stabiliser legs unless the basket is correctly tied down and the boom fully stowed

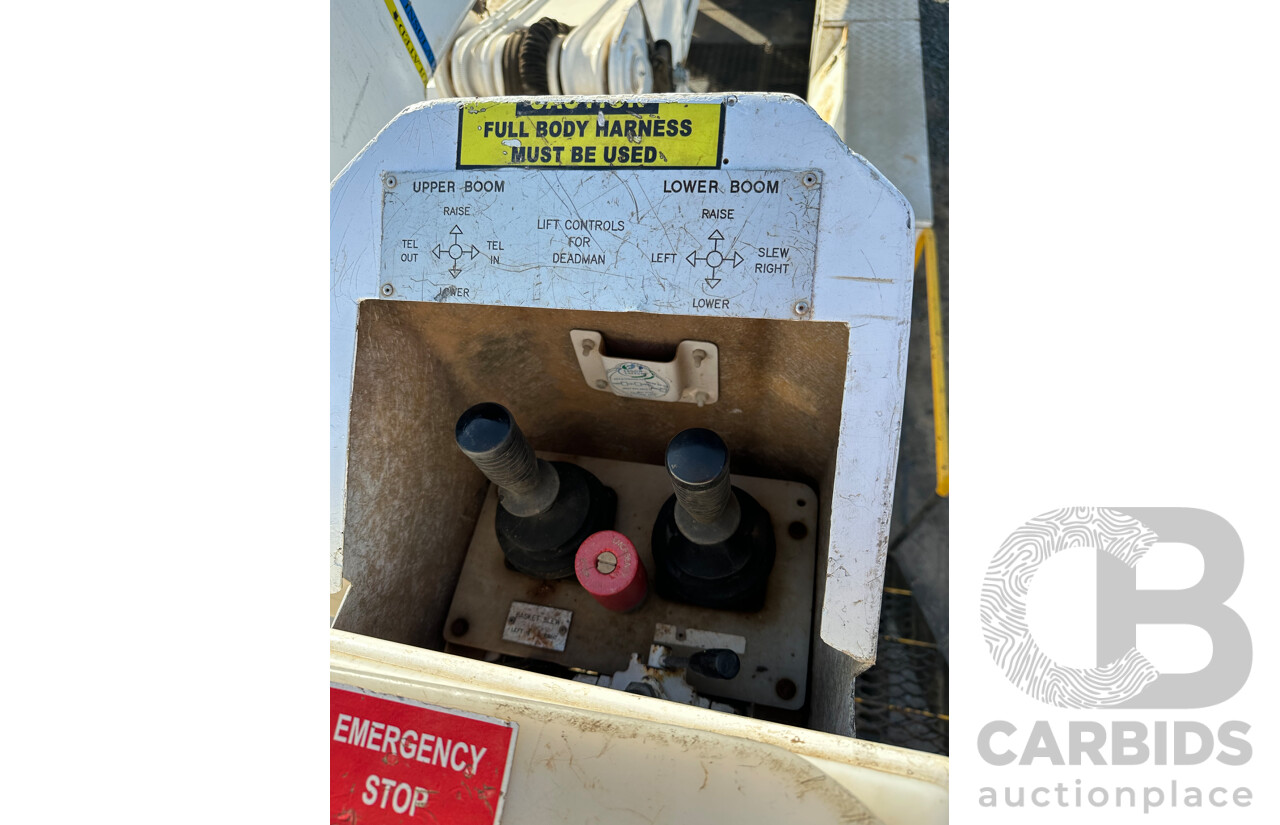

• Back-up retrieval systems Auxiliary manual controls located at the base

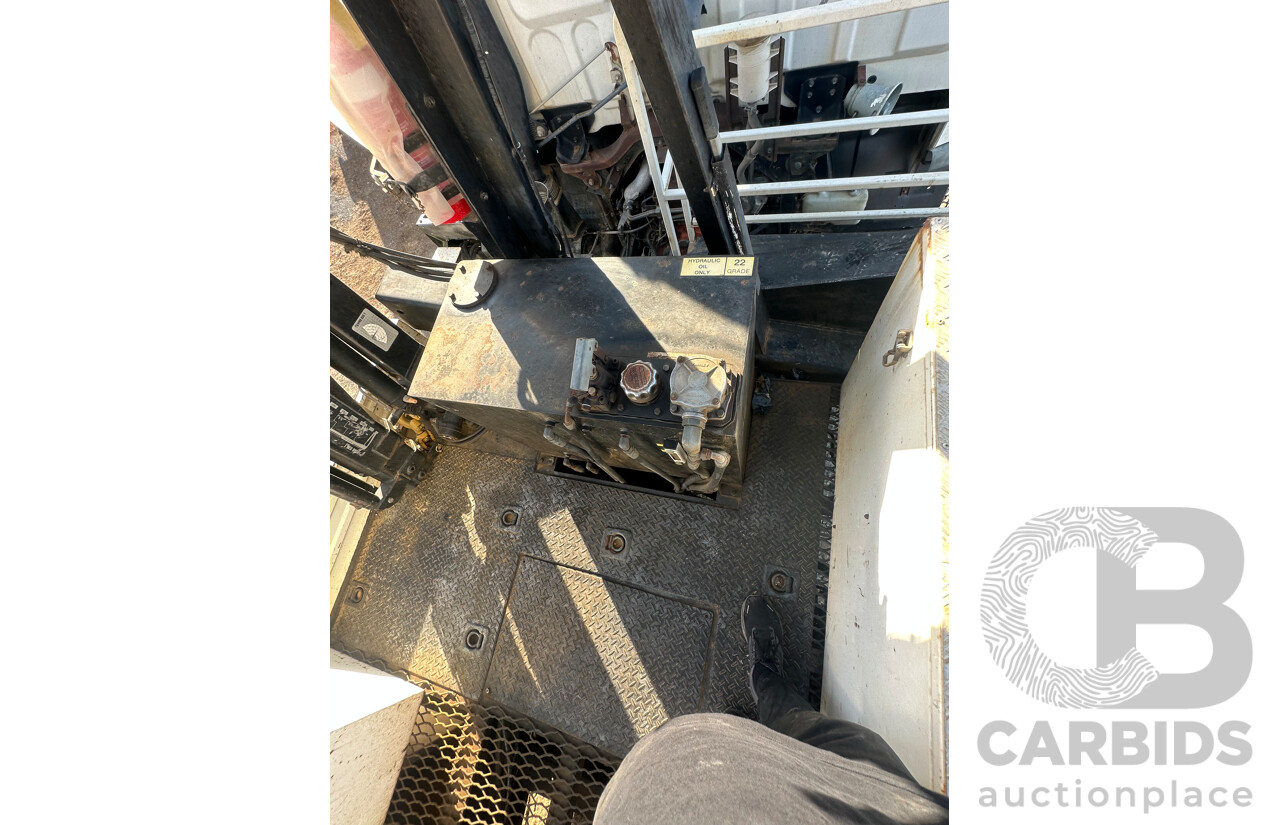

• Electro-hydraulic power pack
• Hand pump back-up for all booms and stabilisers
• Manual bleed down screws fitted to cylinders for manual retrieval
